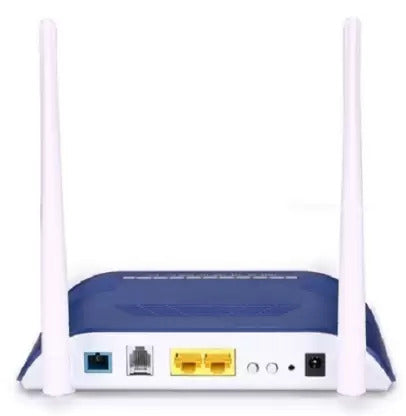

DBC XPON ONT is designed to provide high-speed broadband access for home and small office users. It supports NAT/firewall, 802.11n WiFi, and has a stable and mature XPON ( GPON / EPON ) technology base. With its layer 3 Ethernet switch technology, it offers reliable performance. Compliant with IEEE 802.3ah EPON standards, ensuring quality of service. It features plug-and-play functionality, auto-detection, configuration, and firmware upgrades.
This ONT is suitable for FTTH and FTTO applications, supporting speeds up to 300Mbps with various encryption options. It also offers advanced traffic management, dynamic bandwidth allocation, VLAN support, and NAT/firewall capabilities. Supports RF video output, the management interface for easy operation, and fully compatible with OLTs based on Broadcom/PMC/Cortina chipsets.
KEY POINTS:
- Plug-and-play with auto-detecting features.
- Auto-configuration and firmware upgrades.
- Supports IGMP Snooping multicasting and rich VLAN features.
- OMCI provides remote configuration and maintenance services.
- OLTs based on Broadcom/PMC/Cortina chipsets are compatible.
- Support of NAT and Firewall functions.
- Dual-stack configuration IPv4 and IPv6
- Compliant line testing with GR-909.
TECHNICAL SPECIFICATION
|
Brand |
DBC |
||
|
Model |
XPON ONT HGX 2110 |
||
|
Category |
Modem |
||
|
Function type |
Wireless |
||
|
Speed |
300 Mbps |
||
|
Frequency |
Dual Band |
||
|
Chipset |
Realtek |
||
|
Memory |
64M bytes DDR3 |
||
|
Interface |
PON |
1 x GPON interface SC /UPC single-mode fiber optic, |
SC/APC connector(signal fiber with WDM) |
|
LAN |
|
||
|
WIFI |
|
||
|
POTS (downstream) |
1 FXS, RJ11 connectors |
||
|
Wavelength |
TX 1310nm, RX1490nm and 1550nm |
||
|
Sensitivity |
<-28dBm(PX20+) |
||
|
Overload |
>-8dBm(PX20+) |
||
|
Operating |
Temperature |
-5~+55℃ |
|
|
Humidity |
10~90%(non-condensed) |
||
|
Storage |
Temperature |
-30~+60℃ |
|
|
Humidity |
10~90%(non-condensed) |
||
|
LEDs |
PWR,PON,LOS,LAN1~LAN2,PHONE,Pair,WiFi |
||
|
Power Consumption |
≤6W |
≤8W |
|
|
Power Supply |
DC +12V,1A |
||
|
Dimension |
185mm*34mm*120mm（W*H*D） |
||
|
Weight |
0.24Kg |
0.29 Kg |
|
Several network switching features are included in the DBC XPON ONT, such as 802.11n WiFi (2T2R), Layer 2 & 3 capabilities, CATV receiver, WDM, and VoIP (voice-over-internet protocol) so that it offers high performance and reliability. Improve its versatility and effectiveness by integrating layer 2 and layer 3 functions.
It provides guaranteed quality of service for video, voice, and internet data traffic, which makes it highly reliable. GPON technology conforms to ITU-T G.984, a standard that was set by ITU-T (International Telecommunication Union Telecommunication Standardization Sector). Additionally, this device ensures compatibility with other GPON equipment. FTTH, FTTO, and triple-play services can be supported with Dual Mode ONTs, which offer high performance at an affordable price.
SOFTWARE INTERFACES
|
Layer 2 |
Bridges 802.1D and 802.1ad, 802.1p Cos, and 802.1Q VLANs. |
|
Layer 3 |
|
|
Multicast |
IPv4 IGMP snooping and IPv6 MLD snooping are supported. Bridge, router, and bridge/router mixed modes are possible. |
|
Security |
Flow and storm control, loop detection. |
|
WiFi |
Integrated with 802.11b/g/n standard, up to 300Mbps, 2T2R. Support 128 connections. Support WEP and WPA/WPA2 security protocols |
|
Firewall |
Filtering on the basis of ACLs, MAC addresses, or URLs |
|
POTS |
|
|
O & M |
Supports WEB / TELNET / OAM /OMCI / TR069 and Unified network management of VSOL OLT. |
APPLICATION SCENARIO
LED PARAMETERS
|
Status |
Description |
|
|
PWR |
ON |
Power On |
|
OFF |
Power OFF |
|
|
LOS |
Blink |
Not Receiving optical Signal |
|
OFF |
Receive Optical signal |
|
|
REG / PON |
ON |
Register to PON |
|
OFF |
Not Registered to PON |
|
|
Blink |
Registering to PON |
|
|
LAN 1 & LAN 2 |
ON |
Port is connected |
|
OFF |
Not connected or Exception |
|
|
Blink |
Sending & receiving of data |
|
|
Fx / Phone |
ON |
Registration to the soft-switch, but no ongoing data transmission |
|
OFF |
Soft-switch is not registered or device is off |
|
|
Blink |
Data transmission is ongoing |
|
|
WIFI |
ON |
Wifi ON |
|
OFF |
Device OFF or WiFi OFF |
|
|
Blink |
Wifi data transmit |
|
|
Pair |
ON |
Connected to WPS (LED turns off after 5 minutes) |
|
OFF |
No WPS client or WPS enabled (LED turns off after 5 minutes) |
|
|
Blink |
WPS is connecting |
ORDER INFORMATION
NOTE:- As far as pricing is concerned, DBC Gpon ONU ONT is more affordable than its competitors.
|
Item |
Description |
Accessories |
|
DBC XPON ONT HGX 2110 |
1GE 1FE 1POTS WiFi |
AC-DC power adaptor |
