Netlink GPON ONT HG323DAC is a powerful and versatile router for high-speed connectivity. It features 2GE and 1POTS ports with AC WiFi, allowing multiple devices to be connected simultaneously. With 4 external antennas, it provides solid and stable wireless coverage throughout the area. It also supports IPV6 stack configuration and is equipped with a Realtek chipset, enabling the delivery of excellent performance for both FTTH and triple-play services.
Key Points
- Support full HGU Management Function
- Support 802.11n/ac WiFi(4T4R) function
- Plug and play, automatic configuration, and firmware upgrade.
- OAM/OMCI remote configuration and maintenance function
- QinQ VLAN functions and IGMP Snooping multicast capabilities
- Compatibility with OLT based on Broadcom/PMC/Cortina chipset
- Compliant with GR-909 on POTS for line testing
- Dual stack configuration IPv4 and IPv6
- NAT and Firewall functions are supported.
TECHNICAL SPECIFICATION
|
Brand |
NETLINK |
|
|
Model |
HG323DAC GPON ONT |
|
|
Function |
Modem |
|
|
Type |
Wireless |
|
|
Bandwidth |
1200 Mbps |
|
|
Frequency |
Dual Band |
|
|
Chipset |
Realtek |
|
|
Interface |
PON |
1 x GPON interface
|
|
LAN |
|
|
|
WIFI |
|
|
|
POTS (downstream) |
1 x RJ11 connectors Support: G.711A/G.711U/G.723/G.729 codec / T.30/T.38/G.711 Fax mode, DTMF Relay |
|
|
Optical |
SC/UPC connector |
|
|
Wavelength |
TX 1310nm, RX1490nm |
|
|
Operating Frequency |
2.4 GHz |
2.400-2.483GHz |
|
5 GHz |
5.150-5.825GHz |
|
|
PON Transmission distance |
20 Km |
|
|
Operating |
Temperature |
0℃～+50℃ |
|
Humidity |
10~90%(non-condensed) |
|
|
Storage |
Temperature |
-30℃～+60℃ |
|
Humidity |
10~90%(non-condensed) |
|
|
LEDs |
PWR、LOS、PON、WAN、 LAN1、 LAN2、2.4G、5G、PHONE |
|
|
Power Supply |
≤10W |
|
|
Power Adaptor |
DC 12V/1.5A |
|
|
Dimension |
178mm×120mm×30m（L*W*H） |
|
|
Weight |
0.32Kg |
|
Netlink GPON ONT is enclosed with several network switching features like
- 802.11 ac WiFi 5 standard (4T4R)
- Layer 2 & 3 capabilities
- CATV receiver & WDM (wavelength-division multiplexing)
- MIMO
These features make it highly efficient. Integration with layer capabilities and firewall functions makes it more versatile and effective in providing intrusion-free traffic
GPON ONT provides guaranteed quality of service (QoS) for different types of data traffic such as video, voice, and internet traffic. It is highly reliable and easy to maintain. Its dual-band of 2.4 GHz & 5 Ghz and MIMO technology enhances the network performance. Compliant with ITU-T G.984 as a standard set by ITU-T for GPON technology. Dual Mode ONT is an ideal solution for FTTH and Triple play service for the network operator as it offers high performance at an affordable price.

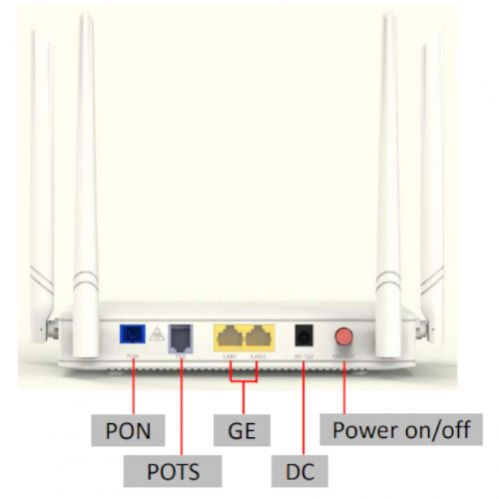

OTHER INTERFACE
|
SOFTWARE FUNCTION |
|
|
Management Mode |
|
|
Data |
|
|
WiFi |
|
|
POTS |
|
NETWORK DIAGRAM
ORDER INFORMATION
NOTE:- As far as pricing is concerned, Netlink Gpon ONTs are more affordable than their competitors. At Grabnpay, we take responsibility for delivering the products we sell on time and in their original condition. The manufacturer is responsible for all warranties based on the date of purchase and their validity.
|
Item |
Description |
Power Accessories |
|
|
NETLINK HG323DAC GEPON ONT |
2GE+1POTS+ WiFi AC
|
AC-DC power adaptor |
|
