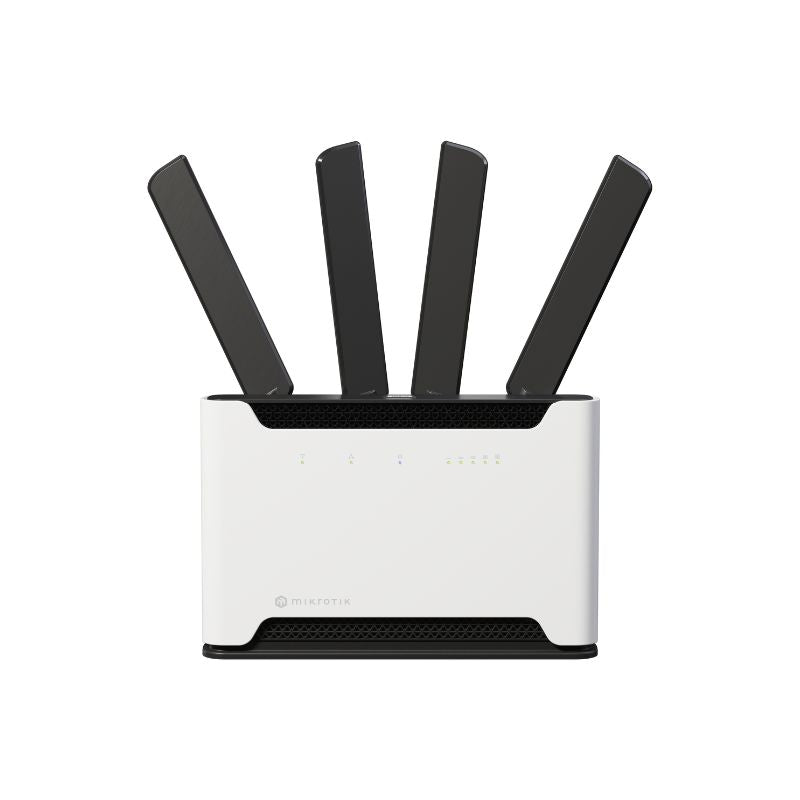

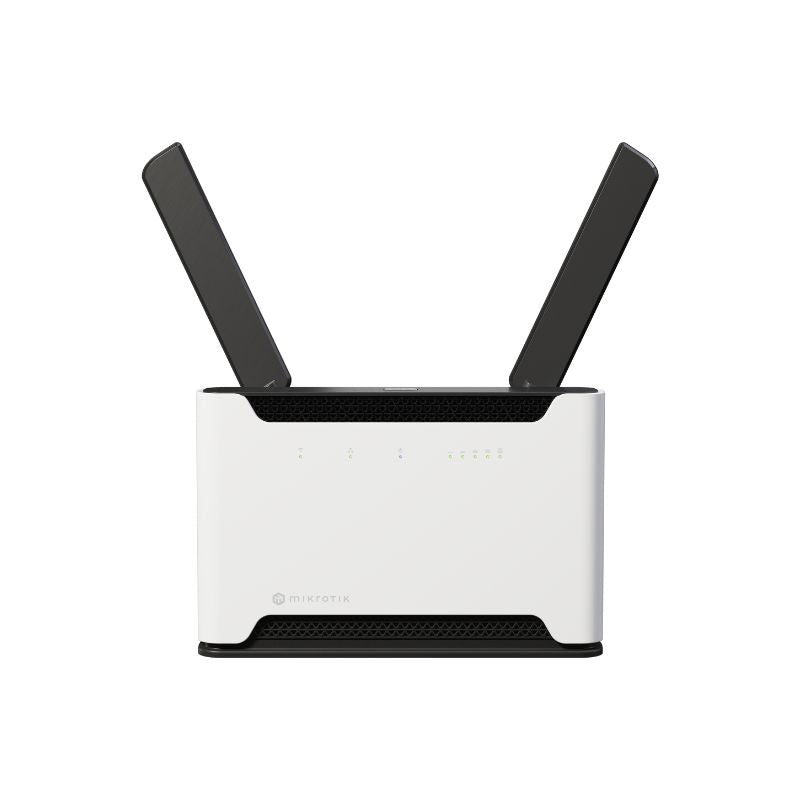

Mikrotik chateau 5g ax / LTE 18 ax home access point dual band 2.4 gigabit ethernet with WPA 3 security

Chateau LTE18/5G Generation 6 is the latest innovation in home AP technology. With its faster wireless capabilities and enhanced CPU performance, experience unparalleled speed. The ultimate choice for high-speed mobile internet, the device offers lightning-fast internet connectivity with 2.5 Gigabit Ethernet. Chateau 5G Generation 6 unlocks new levels of performance.

Technical Specification

Dual-band high-speed access point that supports LTE/5G so you can get superfast Internet anytime, anywhere. From CAT4 LTE up to CAT20 LTE and the ultra-fast 5G, you have many options to choose from. In addition to LTE, Chateau offers 5 Gigabit Ethernet ports and a full-size USB port.

Chetaeu 5G Ax

By utilizing the Generation 6 802.11ax wireless standard and Wave 2 support, Chateau 5G is able to deliver unprecedented speeds. As compared to the previous generation, we can expect up to 40% faster speeds at 5 GHz and up to 90% faster speeds at 2.4 GHz. There has been a significant improvement to the wireless radio and antennas. It features 4/6 integrated LTE antennas and MIMO 4x4. The one pair of external antennas provide improved wireless network coverage for large homes, and the other provides improved 5G LTE connectivity.

Wireless Specification

The ports also had to be able to handle speeds of this magnitude. In addition to four Gigabit Ethernet ports, a 2.5 Gigabit Ethernet port has been added. The USB 2.0 port can also be useful for storing data.

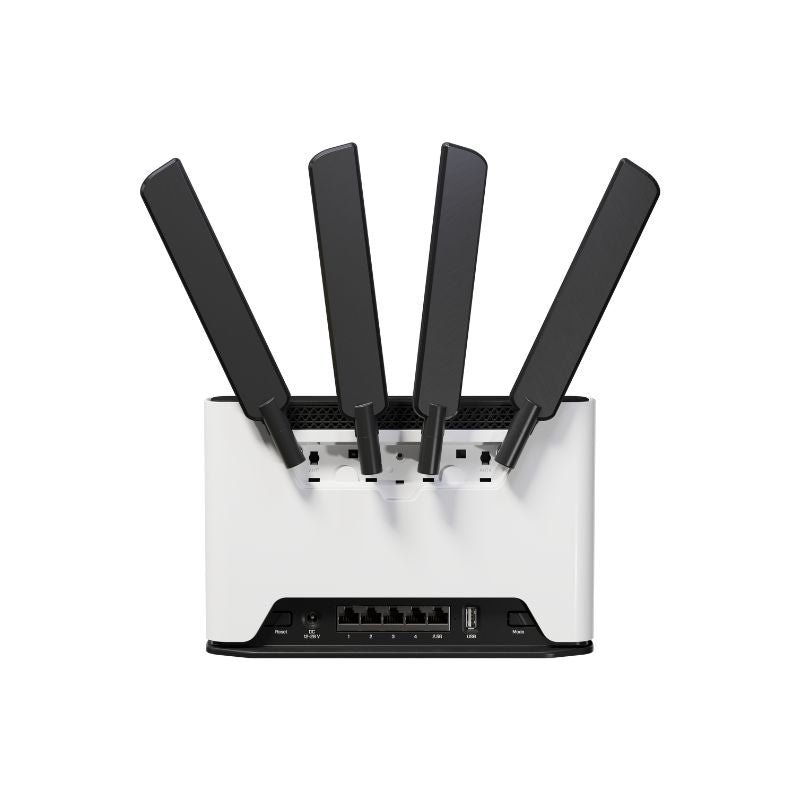

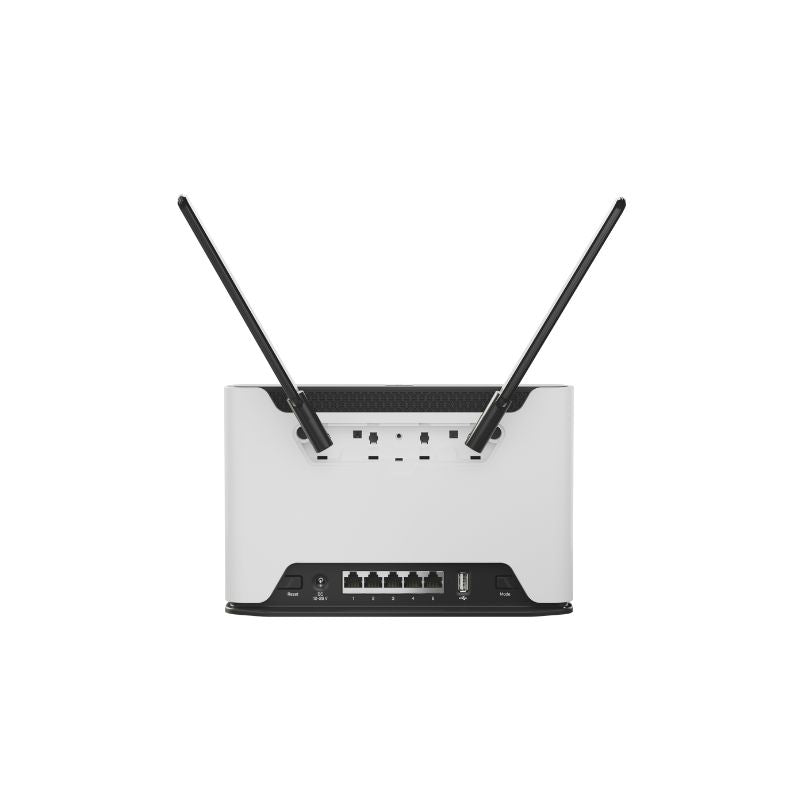

1. Reset Button 2. 5 X Gigabit Ethernet Port  3. USB  4. Sim Slot 5.Mode Button 6.SMA antenna connector  7.WPS Button

With a quad-core CPU running at 1.8 GHz and 1 GB of RAM, this device can handle heavy tasks such as complex firewall rules, and IPsec hardware encryption, and use more threads or experiment with advanced RouterOS features. With WPA3 advanced encryption, it will be more secure than ever before version.

Frequency Bands

Depending on the setup and environment, a 5G modem can reach speeds of up to 5 Gbps for downloads and up to 900 Mbps for uploads. It is still possible to obtain ultra-fast connections that can surpass the best copper and fiber networks even without reaching the maximum capacity.

Ethernet & IP Sec Result

Tests are conducted using XenaBay specialized test equipment (Xena Networks), measuring maximum throughput with 0.1% packet loss tolerance in packet sizes of 64, 512, and 1518 bytes. This result reflects the device's peak performance under the specific hardware and software configuration, with variations expected to result in lower results.

Ethernet Test Result:

IP Sec Test Result
