The VSOL 2GE+1POTS+WiFi5 ONT ( Optical Network Terminal ) is a high-performance optical network terminal that supports XPON dual-mode technology (EPON and GPON), IEEE802.11b/g/n/ac WIFI 5, Layer 2/Layer 3 functions, and OMCI (ONU Management Control Interface) protocol. It is designed for carrier-grade FTTH applications and provides guaranteed QoS for different services. Furthermore, it is highly reliable and easy to maintain, meeting various technical regulations such as IEEE802.3ah, ITU-T G.984, and GPON Equipment technical requirements.
Overload optical power: -3dBm(EPON) or -8dBm (GPON
Transmission distance: 20KM
Wavelength: TX 1310nm, RX1490nm

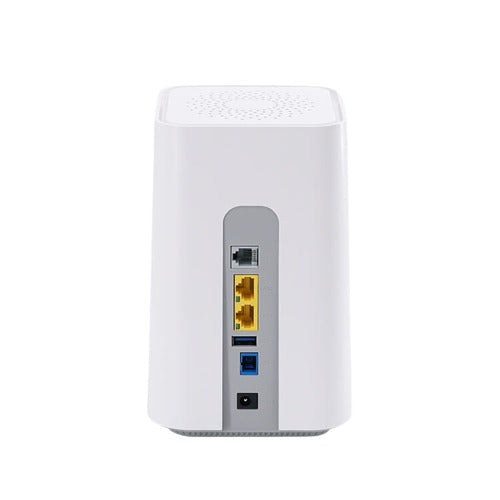

2 *GE, Auto-negotiation, RJ45 ports
1*POTS RJ11 Connector for VoIP
1*USB3.0 for Printer&Storage
1*WPS button for quickly pairing two WiFi device
DC 12V,1.5A, external AC-DC power adaptor
0 ~ +50°C
-30 ~ +60°C
10 ~ 90% (non-condensed)

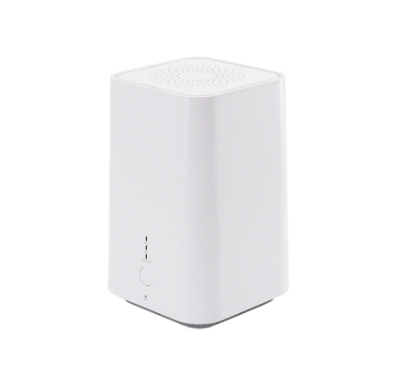

HG323AC-B (2GE+1POTS+WiFi5 XPON HGU ONT) is a dual broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple-play services.
This Wifi mesh router is enclosed with wifi 5 IEEE 802.11ac standard. This standard improves user network efficiency and combines dual-band concurrent operation at 2.4 GHz and 5 GHz throughput of 1.2 Gbps i.e 300Mbps at 2.4GHz and 867Mbps at 5GHZ.
Through this XPON HGU ONT, we can achieve higher throughput by connecting all nodes that are connected with multiple channels. With this method, we can extend our wifi coverage with a strong network connection.
For Strong connection, there was four high-rate integrated antenna which makes it strong and stable signals. This ONT can support a maximum connection are up to 128 devices.
With its Gigabit Port, it provides a seamless, fast and secure network through each and every corner of the room. It is even more capable of transmitting signals throughout walls.
Integrated FEM (PA & LNA ) improves wireless signal transmission to bring stronger coverage and to reduce wireless interference to bring a stable signal.
OAM/OMCI, Telnet, WEB, TR069
Support full management of HGU functions by VSOL OLT
Support IGMP v1/v2/v3
Support IGMP Proxy and MLD Proxy
Support IGMP Snooping and MLD Snooping
Support Bridge,Route and Bridge/Route mixed mode
Support VLAN tag mode
Support VLAN trunk mode
Support VLAN translation
Support IPv4, IPv6 and dual stack
Support Static route
Support DHCP Server
Support Virtual Server
Data Service Function
Full speed non-blocking switching
2K MAC address table
64 full-range VLAN ID
Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
Support auto polarity detection of Ethernet ports (AUTO MDIX)
Integrated IEEE802.1p QoS with fourlevel priority queues
Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
Caller Identification / Call Waiting / Call Forwarding / Call Transfer / Call Hold / 3-way conference
Line testing according to GR-909
Support Mac filter Based on MACor URL
Support 4 queues
Support SP and WRR
Support 802.1P and DSCP
This XPON HGU ONT supports OLT functions such as Management mode, L2 & L3 route function, Multicast, VOIP, and enclosed firewalls.
Management Mode: This Mode support WEB, TELNET, OAM, OMCI, and TR069.
WEB Mode allows administrators to manage connected devices via GUI.
With the help of TELNET, we can access this ONT remotely.
OMCI is used to configure and monitor ONT.
OAM and TR069 Modes are also supported.
Through multicasting features, this router transmits data to the designated devices using IGMP snooping & proxy and MLD. It avoids unnecessary traffic, hostile attacks and prevents the leakage of bandwidth.
By enabling this feature on the router, you can manually configure IP addresses on your network. Usually, it will assign an IP address automatically and set the default gateway to devices.
Dual Band Router comes up with advanced firewall features to prevent hostile attacks like DoS/DDoS attacks. Using the ACL rule, filtering and managing certain traffic is faster within the network.With the help of Parent Control, this router sets internet access time limits and restricts certain websites.
These ONT support VOIP functions enabled with G.711a and G.729 Codec. Usually, Codec is a computer program whose purpose was to code or decode data. It translates the data when they reached its destination .G.711 will transmit your data call without compression. It took high bandwidth and take more processing time which makes it to get quality sounds and calls on VOIP. To overcome the high rate of bandwidth G.729 Codec is used and offers a good level of call quality.
NOTE:- Normally, Codec is used in telephony environments to maximize bandwidth utilized for compressing and decompressing call data when they reached their destination.
QUERIES ABOUT COST
When compared to other ONT Brands, VSOL ONT have high performance with a highly configurable chipset. Also, it is cost-efficient and easy to manage.
AC-DC power adaptor: DC12V/1.5A
NOTE:- For more information about switches & other accessories, visit blog pages or make contact with the technical support team
