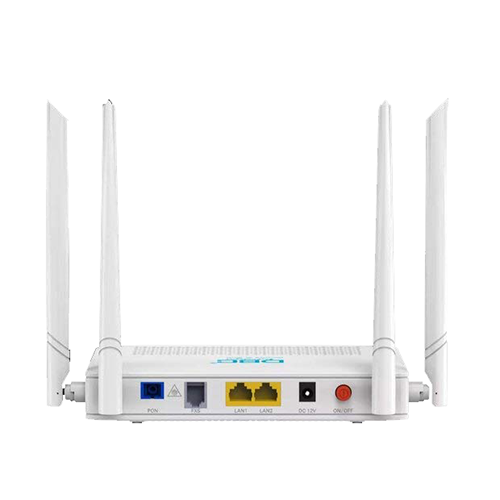

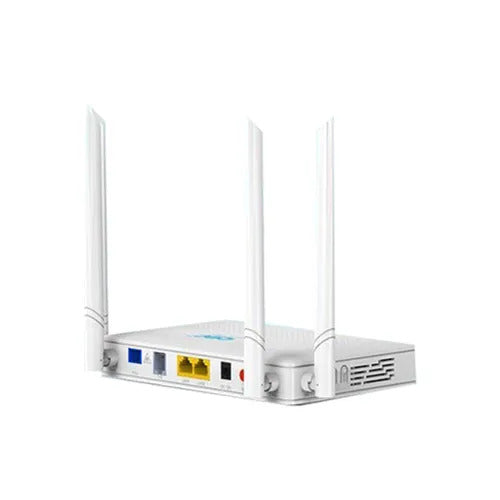

DBC GEPON ONT HGU-V210-4AC ( 2GE + 1POTS + AC WiFi ) Dual band wifi 5 Voice modem with 4T4R Extrenal Antenna

HGU terminal devices with 2GE+1POTS+WiFi GPON/EPON connectivity are designed to meet fixed network operators' triple-play service requirements. A mature chipset (Realtek) is used in these boxes, along with IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high-quality VoIP technology.  This XPON modem managed through the DBC OLT. They are highly reliable, easy to maintain, and guarantee QoS for different services. GPON Equipment (V2.0 and above) requirements from Telecom (including IEEE802.3ah-ITU-T G.984.x) also comply with the technical regulations.

Key Points

• Provide full management support for HGUs
• Supports 802.11n/ac WiFi (4T4R)
• Plug and play, automatic configuration, and firmware updates.
• Configuration and maintenance via OAM/OMCI
• QinQ VLAN functions and IGMP Snooping multicast capabilities
• Compatible with OLTs with Broadcom, PMC, or Cortina chipsets
• GR-909 compliant for line testing on POTS
• IPv4 and IPv6 dual stack configuration
• Firewall and NAT functions are supported.

TECHNICAL SPECIFICATION

DBC GEPON ONT is enclosed with several network switching features like

• 802.11 ac WiFi 5 standard (4T4R)
• Layer 2 & 3 capabilities
• CATV receiver & WDM (wavelength-division multiplexing)
• MIMO

These features makes it highly efficient. Integration with layer capabilities and firewall functions makes it more versatile and effective in providing intrusion free traffic.

GPON ONT  provides guaranteed quality of service (QoS) for different types of data traffic such as video, voice, and internet traffic. It is highly reliable and easy to maintain. Its dual-band of 2.4Ghz & 5 Ghz and MIMO technology enhances the network performance. Compliant with ITU-T G.984 as a standard set by ITU-T for GPON technology. GPON EPON Modem is an ideal solution for FTTH and Triple play service for the network operator as it offer high performance at an affordable price.

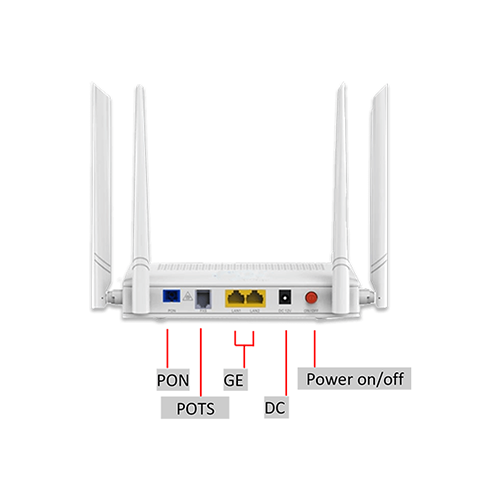

OTHER INTERFACE

NETWORK DIAGRAM

Below network archiectucture diagram shows the internet is connected to Optical Line Terminal (OLT) switches. The OLT switches act as the interface between the ISP's network and the fiber access network.

To distribute the internet connection to multiple users, a splitter is used. The splitter takes the incoming connection from the OLT switches and divides it into multiple connections. Each of these connections is then distributed to the respective Fiber to the Home (FTTH) connections.

FTTH refers to the technology that enables the delivery of high-speed internet services over optical fiber directly to individual homes or buildings. Each FTTH connection represents a dedicated fiber optic line that connects to a specific location.

Once the FTTH connections are established, they can be connected to multiple devices within the respective homes or buildings. This allows users to access the internet from various devices such as computers, smartphones, tablets, smart TVs, and other network-enabled devices.

ORDER INFORMATION

NOTE:- As far as pricing is concerned, Netlink Gpon ONTs are more affordable than their competitors. At Grabnpay, we take responsibility for delivering the products we sell on time and in their original condition. Manufacturer is responsible for all warranties based on the date of purchase and their validity.
