- VIAVI SMART OTDR-30db-Tri band-VFL-PON-XGPON Power meter-Microscopic option -USB -Bluetooth & WiFi VIAVI SMART OTDR-30db-Tri band-VFL-PON-XGPON Power meter-Microscopic option -USB -Bluetooth & WiFi
- Description
- Shipping & Returns
- Reviews

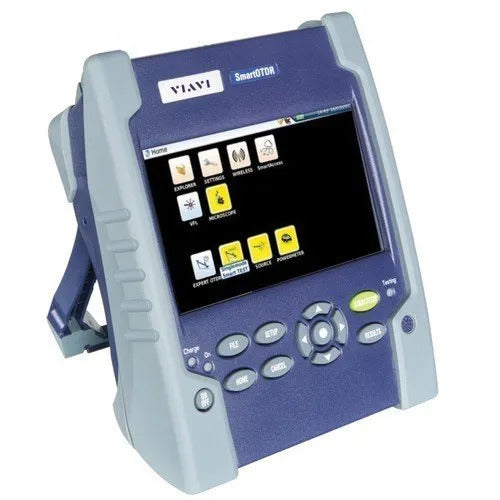

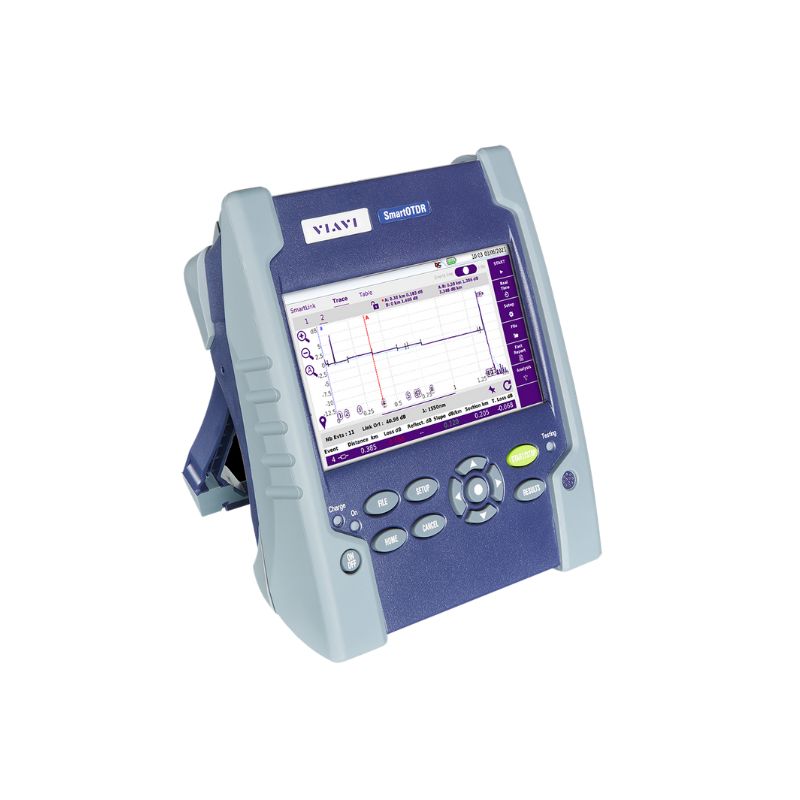

Viavi smart otdr is specially designed to optimize metro field tests and network access. By using this generic or user-defined configuration, setup errors are eliminated and consistent results are maintained. This smart otdr is easy to use due to its lightweight and compact design.

KEY FEATURES
- Provide single/dual/tri-band wavelength with 1310 / 1510 nm and 1625 / 1650 nm services
- Handfree design with 5 x high visibility outdoor touchscreen display
- Integrated with Continuous Wave light source
- PON optimization is there to test 1x 128 splitter ratio
- Power meter integrated with PON/X GPON
- Automated fiber optic and microband detection with pass/fail analysis
- Connectivity through Bluetooth, USB, and WiFi for 3G/4G
SPECIFICATION
Brand |
VIAVI |
Model |
Smart OTDR 100A |
Type |
OTDR |
Function |
Dark Fiber Tester |
Display |
5- in color touchscreen |
Resolution |
800 X 480 W VDS |
Interface |
2 x 2.0 USB port, 1 x mini USB port (optional dongle also available) |
Connectivity |
Bluetooth & WiFi |
Data storage |
10000 OTDR - Typical Traces |
Wavelength |
1310 & 1510 nm |
Range |
0.1 - 260 Km |
Pulse |
5 ns to 20 us |
Operating Temp |
-20 to 50°c |
Storage Temp |
-20 to +60 °c |
Integrated |
Visual Fault Locator and PON / X G-PON Power Meter |
CW |
|
Light source |
- 3.5 dbm |
Long term Stability |
± 0.5 db |
Visual Fault Locator |
|
Wavelength |
650 nm |
Emission Mode |
CW ,1Hz |
Laser |
Class 2 |
PON / XG-PON |
|
Wavelength |
1490 /1550 nm ; 1490 /1578 nm |
Ranges |
1490 : -35 to +5 dBm ;1550/1578: -35 to +23 dBm |
Accuracy |
± 0.5 db |
Power |
AC/DC Adapter |
Output |
12 V DC 25W |
Weight |
0.9 Kg |
Dimension |
175 x 138 x 57 mm |
BENEFITS

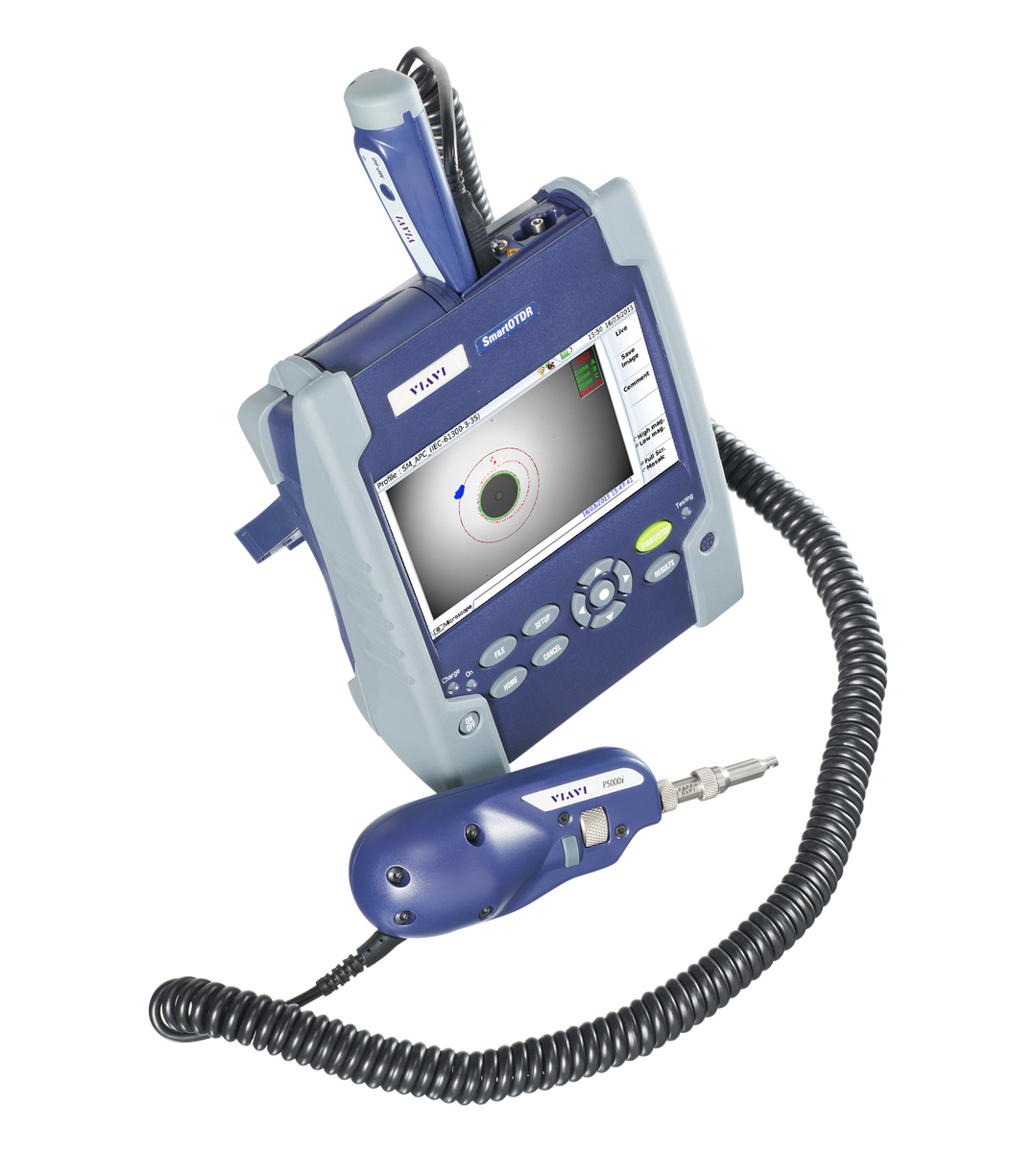

- Integrated with all essential fiber testing features such as Visual Fault Locator (VFL), Optical Power meter, and microscopic options.

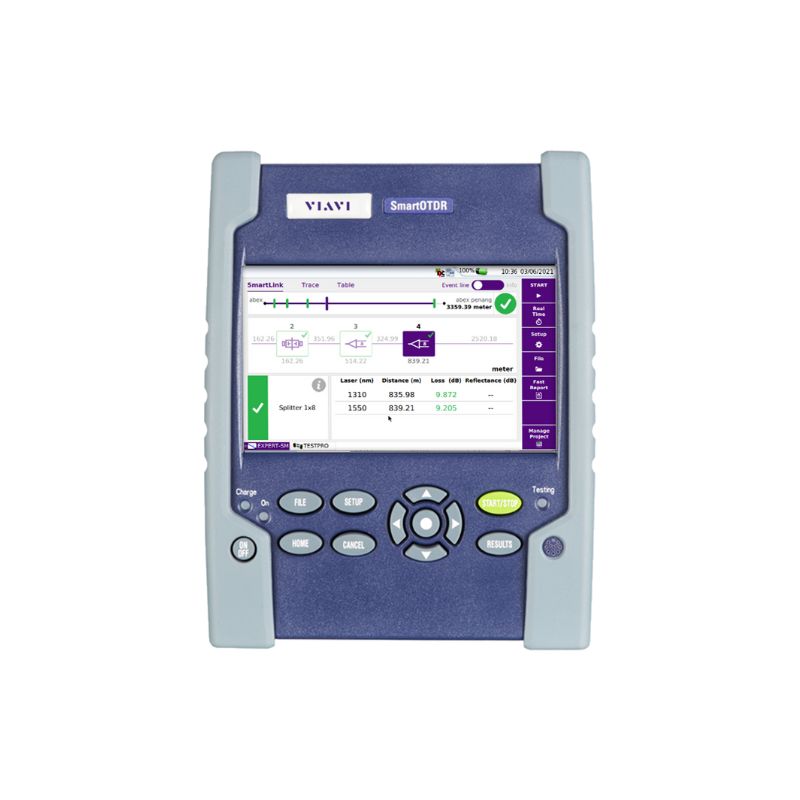

- With a smart link mapper, OTDR analysis is simplified.
- Easy to upgrade in the field.
- Automated testing objectives with Pass/Fail results
- Robust wireless connectivity makes it productive anywhere.
A variety of connectivity options, including Bluetooth, WiFi, and USB, enable remote control and data transfer from and to mobile devices, systems, and tablets.

- Through Smart Access Anywhere (SAA), technicians can remotely access and operate this otdr tester from the cloud.
- viavi otdr is important to note that Smart OTDRs are compatible with a wide range of servers. In addition, this can be used to instantly share the onboard measurement report in pdf format.

- This viavi smart otdr includes cloud-based strat-async for managing assets, test data, and configuration with the latest software, as well as options for installation of the smart OTDR.

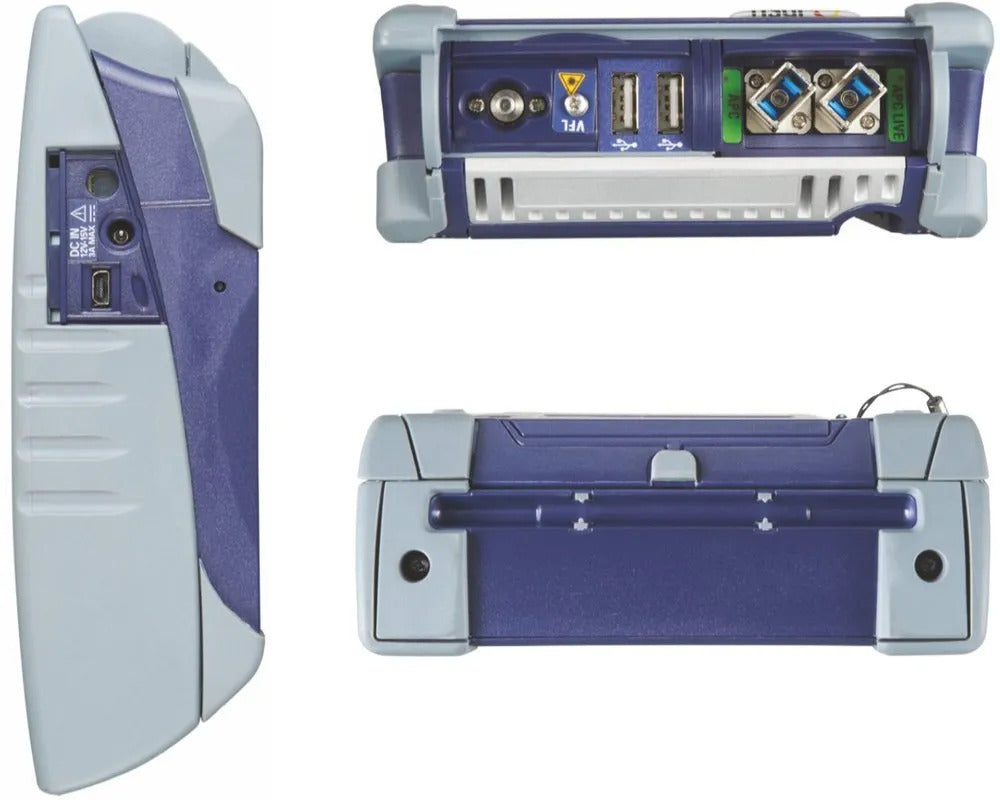

NO |
Button Description |
1 |
5-inch touch screen display |
2 |
Charge indicator |
3 |
On indicator |
4 |
File Menu |
5 |
Setup Menu |
6 |
Start / Stop |
7 |
Testing Indicator |
8 |
ON / OFF |
9 |
Home page |
10 |
Cancel |
11 |
Direction & validate key |
12 |
Result page |
13 |
Loud Speaker |
14 |
AC / DC input |
15 |
Mini USB Port |
16 |
Visual Fault Locator |
17 |
USB 2.0 Port |
18 |
OTDR / Continuous Light source/power meter |
19 |
OTDR service test / PON or XG- PON Power meter |
20 |
WI-FI / Bluetooth Option |
NOTE: To know more about OTDR tester, kindly visit our Blog Page
