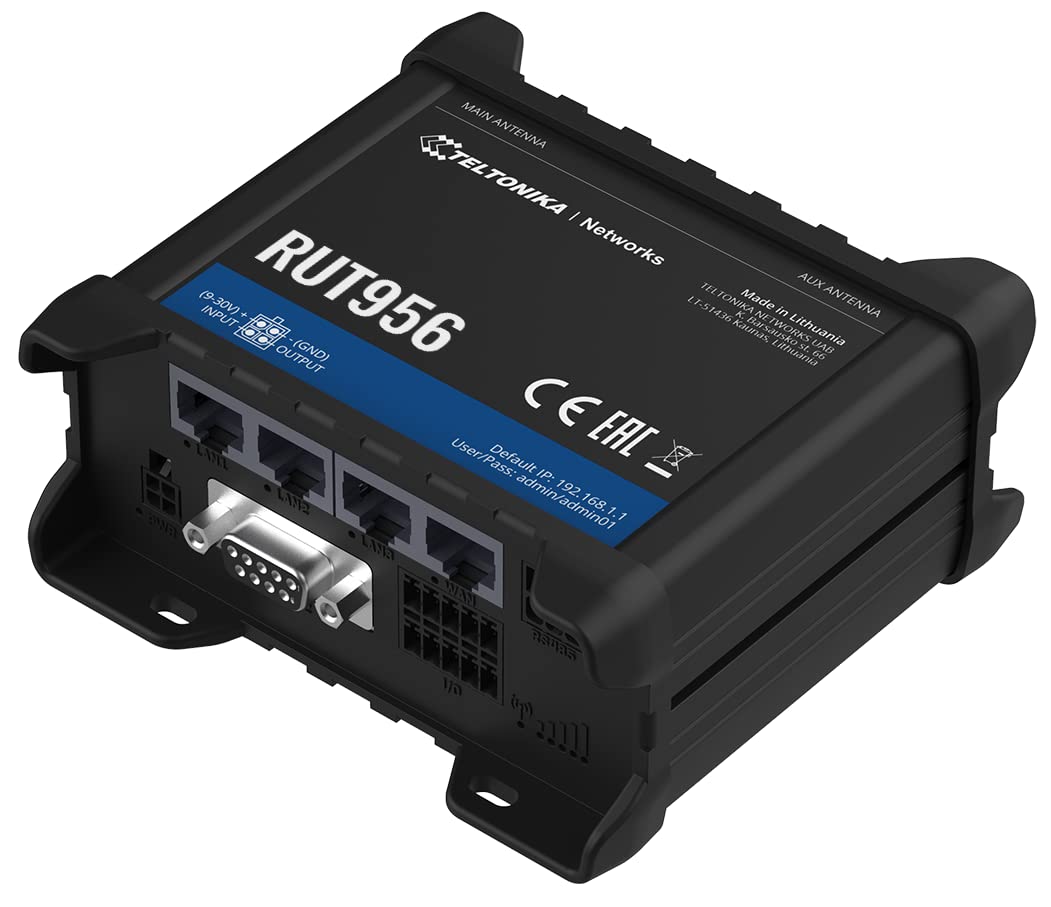

- Teltonika RUT 956 LTE RS 232/RS 485 Industrial 4G LTE (Cat 4), 3G, 2G Cellular router with dual sim ,WLAN, GPS,OpenVPN & DynDNS Teltonika RUT 956 LTE RS 232/RS 485 Industrial 4G LTE (Cat 4), 3G, 2G Cellular router with dual sim ,WLAN, GPS,OpenVPN & DynDNS










Teltonika RUT 956 LTE RS 232/RS 485 Industrial 4G LTE (Cat 4), 3G, 2G Cellular router with dual sim ,WLAN, GPS,OpenVPN & DynDNS
- Description
- Shipping & Returns
- Reviews
Teltonika RUT956 dual-SIM industrial router that combines 4G LTE cellular connectivity with Wi-Fi and wired connectivity. However, this router also includes GNSS functionality as an additional benefit. This device has a 4G dual-SIM cellular connectivity, a Wi-Fi interface, and four Ethernet ports so that it can be used to meet the needs of the most diverse IoT applications.

KEY FEATURES
- 4G LTE cellular and Wi-Fi integration with dual-SIM support
- Robust GNSS functionality for precise geolocation services
- Seamless automatic WAN failover for business continuity
- Multiple communication interfaces for enhanced device integration
- Advanced software capabilities including Modbus, SNMP, TR-069, NTRIP, and MQTT
TECHNICAL FEATURES
Brand |
Teltonika |
Type |
Cellular industrial router |
Mobile |
4G/LTE (Cat 4), 3G, 2G |
CPU |
Mediatek MIPS 24Kc 580 MHz |
Flash storage |
16 MB, SPI Flash |
Memory |
128 MB RAM |
Ethernet |
4 x RJ45 ports, 10/100 Mbps |
Status LEDs |
1 x Bi-Color,4 x Ethernet, 5 x Signal Strength, 1 x Power |
Wirless Mode |
IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
WiFi security |
WeP, WEP, WPA-EAP, WPA-PSK, AES-CCMP, TKIP, client separation, and PEAP, WPA2-PSK encryption options |
User |
Up to 100 simultaneous |
Speed |
4G LTE - up to 150 Mbps, 3G 42 Mbps, 2G 236.8 kbps |
Antenna |
2 x SMA for mobile and RP-SMA for WiFi, 1 x SMA for GPS |
SIM switch |
2 SIM cards, auto switching cases: weak signal, data limit, SMS limit, roaming, no network, refuse connect to network, data connection failure, SIM card inactivity protection |
USSD |
Sends and reads Unstructured Supplementary Service Data |
Black/White list |
YES |
Power |
4-pin DC power socket |
Input |
Voltage range 9 - 30VDC, Max.Surge protection >31VDC 10us |
Power consumption |
Idle < 2 W, Maximum < 7 W |
Serial |
1 x RS232, 1 x RS485 |
Protection |
IP30 |
Dimensions |
110 x 50 x 100 mm ( Wx HxD) |
Operating temperature |
10% to 90% non-condensing |
Weight |
287 g |
Continuity of business: With automatic WAN failover, even if the primary Internet connection goes down, the solution will continue to operate without interruption.
A multitude of interfaces: Serial communication interfaces allow more devices, including legacy devices, to be integrated into a solution ecosystem. Automation, event notifications, and digital and analog I/O are made possible by advanced RutOS software features.
Advanced software features: Multiple VPN connections are available with Teltonika RUT956, including Modbus, SNMP, TR-069, NTRIP, MQTT, and other industrial software functions.
Operating System |
RutOS (OpenWrt based Linux OS) |
Mobility |
Band lock, Auto APN, SIM switch, black/white list of operators, SMS/data limit |
Networking |
Routing, Failover, Firewall, DHCP, DDNS, QoS / SQM, Load Balancing, VoIP passthrough, Connection monitoring, SSHFS |
Management |
WEB GUI, SSH, TR-069%, CLI, CALL, SMS, SNMP, JSON-RPC, MODBUS, MQTT, and RMS |
Cloud |
RMS, Cumulocity, FOTA,, Cloud of Things, Azure IoT Hub , and ThingWorx |
NTP |
Sync with: External NTP server, GNSS, mobile operator, NTP server , and client |
GNSS |
NMEA forwarding, AVL, Geofencing |
Modbus |
MQTTModbus over MQTT protocol, TCP slaves, TCP masters, RTU slaves and gateways |
Why Teltonika RUT956
In the era of Industry 4.0 and IoT, maintaining robust and uninterrupted connectivity is a necessity. Teltonika RUT956 brings together cutting-edge technology to ensure your business thrives in a connected world. It empowers your operations with continuous connectivity. Automatic failover ensures no downtime during connection disruptions, while GNSS precision amplifies location-aware applications. Its integration excellence facilitates legacy device inclusion, enabling efficient control and automation. The advanced software toolbox broadens communication options, keeping you connected with various protocols and secure VPNs.

With Teltonika RUT956, you're not just acquiring a router; you're embracing a transformative tool that propels your industrial connectivity to new heights, ensuring efficiency, reliability, and intelligence in every operation.
Security
Authentication |
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
Firewall |
WebUI-enabled, unlimited firewall configuration via CLI; DMZ, NAT, NAT-T |
Attack prevention |
Protect against DDOS(SYN floods, SSH attacks, HTTP/HTTPS attacks), port scans(X-mas, NULL flags, FIN scans, SYN FIN & RST) |
VLAN |
Port and tag-based VLAN separation |
WEB filter |
A blacklist blocks unwanted websites, a whitelist specifies allowed sites |
Access Control |
TCP, UDP, ICMP packet access control, MAC address filtering |
NETWORK DIAGRAM

ORDER DETAILS
Manufacturers are responsible for warranties, which are based on purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.
Product |
In Box |
Teltonika RUT956 Industrial Router |
Router RUT956, 9 W PSU, Two LTE antennas (SMA male, 3 m cable), Two WiFi antennas (1.5 m cable, RP-SMA male ), GNSS antenna (adhesive, 3 meter cable, SMA male), RS485 connector block, I/O connector block, Ethernet cable (1.5 m), SIM Adapter kit, Quick Start Guide. |
As a telecom technician, I rely on the teltonika rut956 for its robust 2G, 3G, and 4G capabilities. The dual SIM support and DynDNS make it the ideal choice for remote installations.
Teltonika rut 956 has delivered stellar performance in our factory. It's fast, reliable, and the dual SIM support keeps us connected without interruption.
Teltonika RUT956 , like a networking wizard! Its Cat 4 LTE ensures lightning-fast connections, and the RS 232 ports work like magic with our devices. Setting up the Cat 956 was a breeze, and it has transformed our connectivity game.
I would say it as tech-savvy, I'm always on the lookout for top-notch gadgets. Teltonika RUT 956 didn't disappoint. Its Cat 4 LTE performance is impressive, and RS 485 ports cater perfectly to my industrial devices.
Based on my opinion, the Teltonika RUT 956 is a remarkable device! I installed it in our industrial setup, and it's been a game-changer. The LTE Cat 4 speed is impressive, and the inclusion of RS 232/RS 485 ports is a bonus. The stability and reliability of the Cat 956 are outstanding. This router has improved our connectivity significantly.
