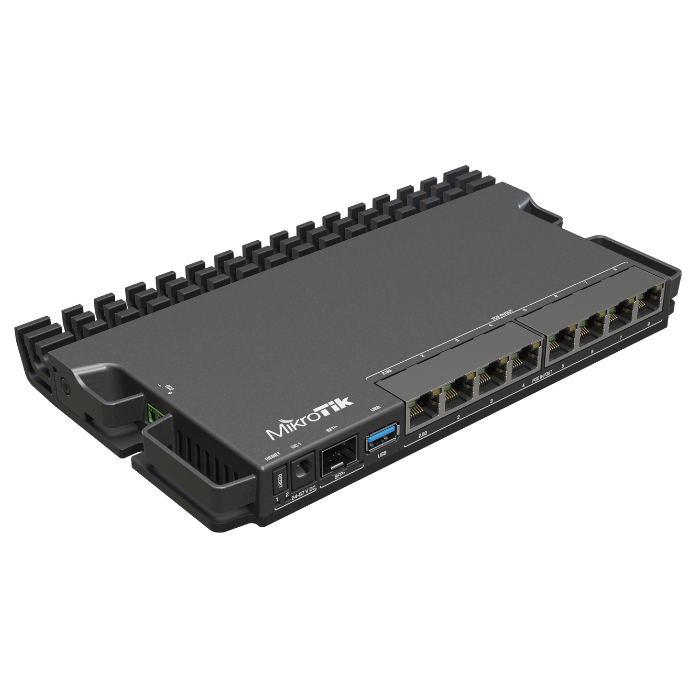

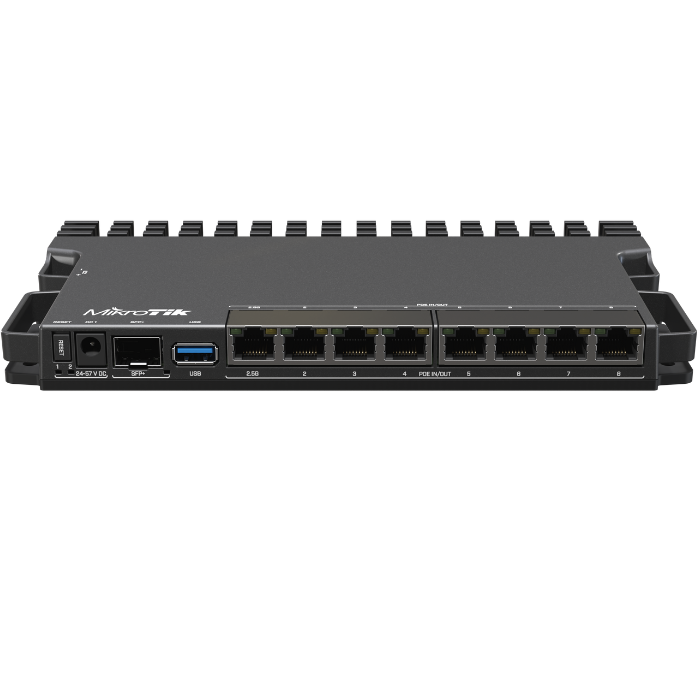

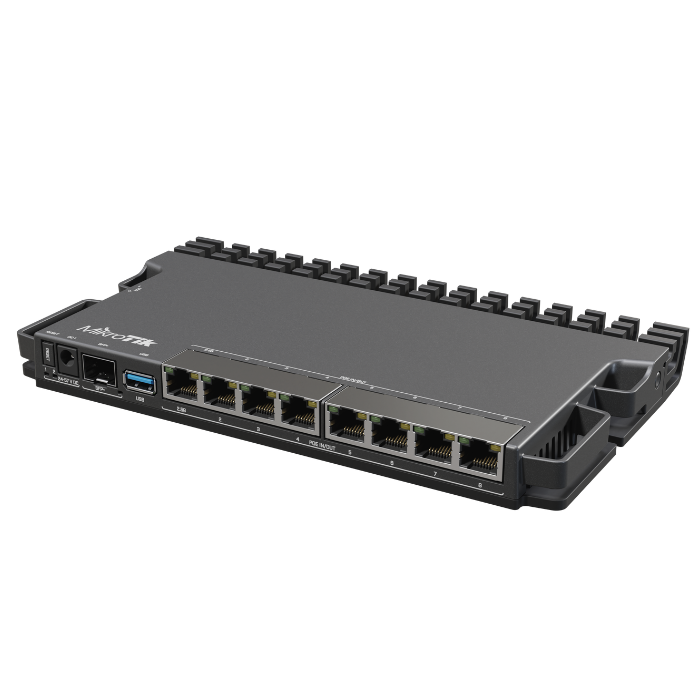

Mikrotik RB5009UPR+S+IN Heavy duty home lab Gigabit POE In and Out Router with USB 3.0
- Description
- Shipping & Returns
- Reviews
RB5009UPr+S+IN router is the latest innovation from our renowned line of heavy-duty routers, designed specifically for small and medium ISPs. This version of the RB5009 has all the bells and whistles of the previous model. A new version of this heavy-duty RB5009 router with PoE-in and PoE-out on all ports. Perfect for small and medium ISPs. 2.5 Gigabit Ethernet & 10 Gigabit SFP+, numerous powering options.
TECHNICAL SPECIFICATION
Brand |
Mikrotik |
Model |
RB5009UPR+S+IN |
Type |
Heavy duty router |
Chipset |
Marvell 88E6393 |
Architecture |
ARM 64 bit |
RAM |
1 GB |
RAM Type |
DDR4 |
Storage |
1 GB (NAND) |
CPU |
88F7040 ARM 64 Bit, 4 Core,1.4 GHz RAM |
RJ45 Ports |
7 x 1 Gbps, 1 x 2.5 Gbps |
SFP+ Port |
1 x 10 Gbps |
POE out ports |
8 x 802.11af/at |
POE in ports |
1 x 802.11af/at |
USB Port |
USB 3.0 Type A |
Ambient Temperature |
-40℃~+60℃ |
Cooling Type |
Passive |
MTBF |
Apprx. 200000 hrs at 25℃ |
Environment |
Indoor |
Operating System |
RouterOS V7 |
Max. Power Consumption |
150 W |
Max. Power consumption without attachment |
16W |
Power input |
3 DC |
Input Voltage |
24-57 V (PoE in, DC jack, 2 pin terminal) |
Ingress protection |
IP20 |
Certification |
CE, EAC, ROHS |
Dimension |
220 x 125 x 22 mm |
Weight |
0.79 Kg |
Enhanced Connectivity Options
2.5 Gigabit Ethernet and 10 Gigabit SFP+ ports on this heavy-duty RB5009UPr+S+IN home lab router offer versatile connectivity options for seamless integration into various network environments. Whether you require high-speed data transfer or fiber connectivity, this router delivers exceptional performance to meet your demands.
PoE-in and PoE-out Functionality
With PoE-in and PoE-out capabilities on all eight Ethernet ports, the RB5009UPr+S+IN provides unprecedented flexibility in powering network devices. Each PoE-out port can supply up to 25W of power, with a total combined limit of 130W, ensuring reliable operation for your entire network infrastructure.
Redundant Power Supply Options
Featuring ten separate powering options, including dual redundant power supplies, the RB5009UPr+S+IN ensures uninterrupted uptime and peace of mind for ISP operators. With support for a wide voltage range of 24 – 57V, you can choose the most suitable power source for your specific requirements.

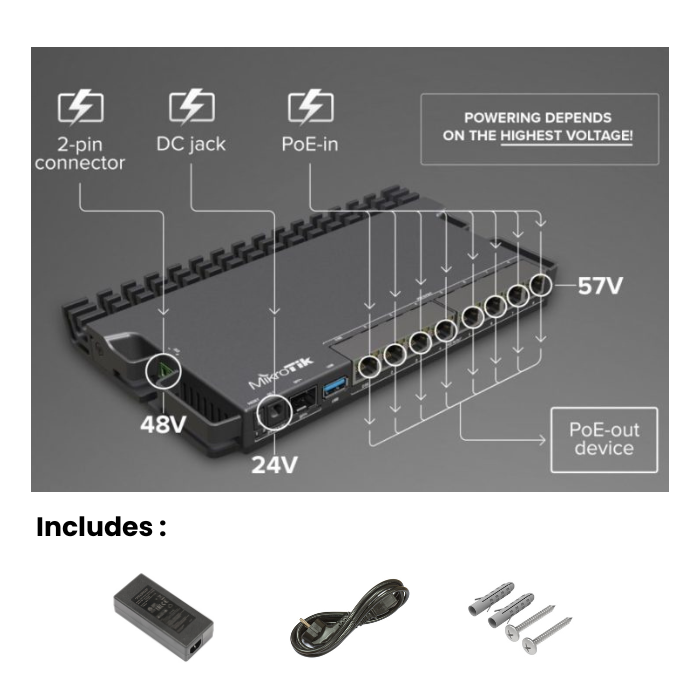

Automatic Voltage Selection
In the event of a power source failure, the RB5009UPr+S+IN automatically switches to the next highest voltage input, ensuring continuous operation without interruption. Additionally, PoE-out devices prioritize the highest voltage source for power supply, further enhancing reliability and efficiency.
Compact and Versatile Design
RB5009UPr+S+IN boasts a compact form factor that is suitable for a wide range of applications, from small office setups to large corporate server rooms. With the ability to mount four routers in a single 1U rackmount space, it offers unmatched scalability and efficiency.
NETWORK BLOCK DIAGRAM
Order Information
Manufacturers are responsible for warranties, which are based on purchase date and validity. For this product, Mikrotik will provide a warranty from the date of purchase. We ensure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or an operational issue, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you through every step of the way.
Order details |
Description |
RB5009UPR+S+IN |
Marvell Armada ARMv8 CPU (4-cores, 1.4GHz per core), 1GB of DDR4 RAM, 1GB NAND storage, Routeros V7, 7xGb 1×2.5Gb 1xSFP+ Router |
Item Includes |
48v 2A Power adaptor, Power card, Fastening Set, rackmount set |
