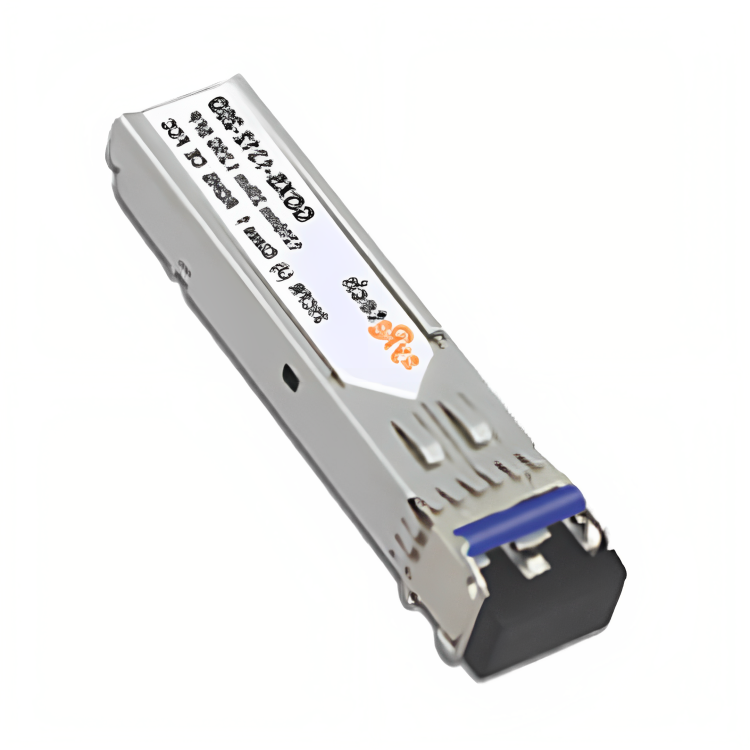

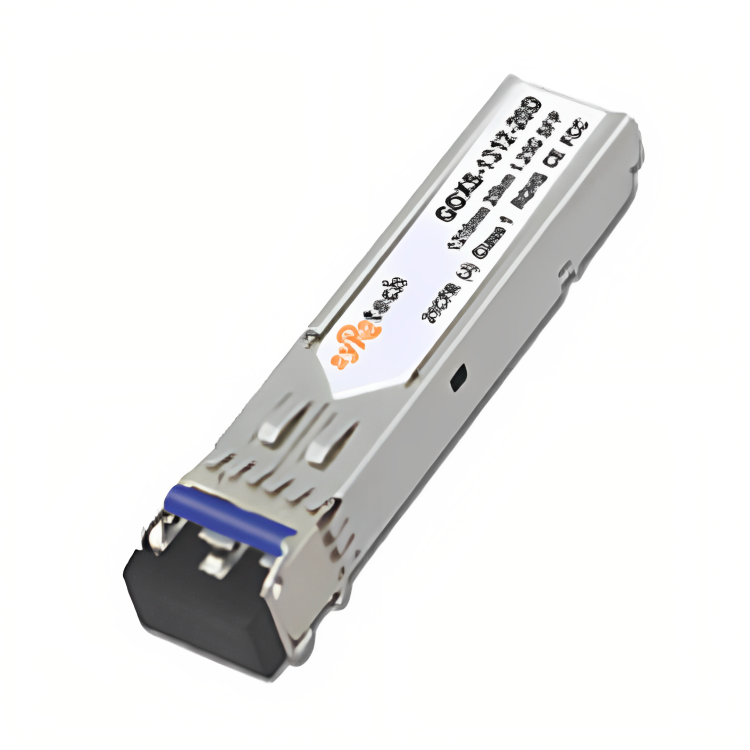

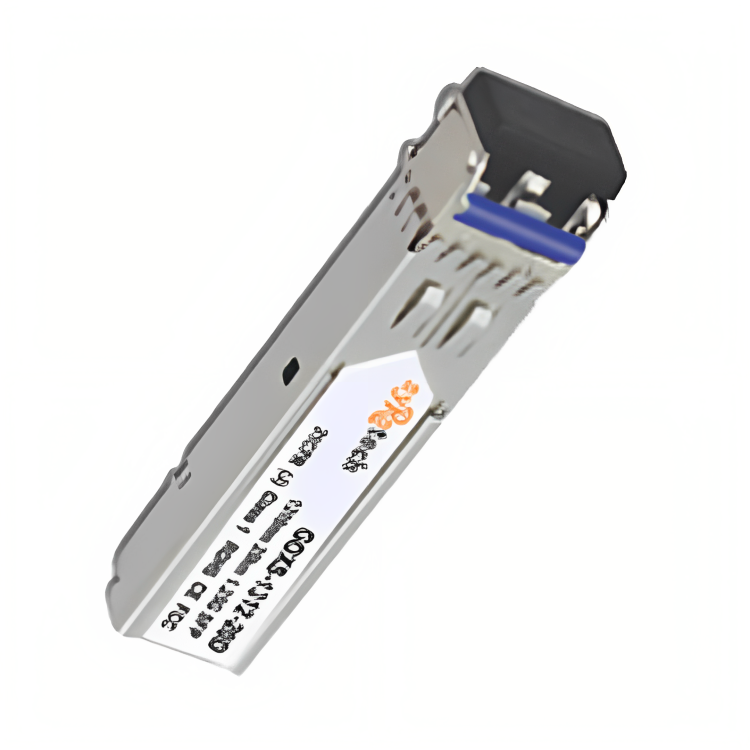

- Syrotech-SFP-Transreceiver Module-1G-SMMM-Dual Fiber-Dual Rate-1.25 Gbps / 1.063 Gbps-1310 nm -DDM-MSA-ROHS-80 Km Range Syrotech-SFP-Transreceiver Module-1G-SMMM-Dual Fiber-Dual Rate-1.25 Gbps / 1.063 Gbps-1310 nm -DDM-MSA-ROHS-80 Km Range








- Description
- Shipping & Returns
- Reviews
The SFP-1G-SMMM-DUAL-FIBER is a high-performance, small form factor pluggable module for a dual data rate of 1.25Gbps/1.063Gbps. It is compliant with SFP MSA and SFF-8472 with a duplex LC connector. The module provides superior performance in a wide variety of applications including SONET OC-24-LR, Fibre Channel, and Ethernet. And its transmission range was expanded to 80 Km by using a 1310nm FP laser and a PIN photodetector.

KEY FEATURES
◉ Dual data rates of 1.25Gbps and 1.063Gbps
◉ FP laser with a 1310nm wavelength and a PIN photodetector for an 80km range
◉ Duplex LC receptacle compatible with SFP MSA and SFF-8472
◉ Support DDM (Digital Diagnostic Monitoring): Internal Calibration or External Calibration
◉ Compliant with SONET OC-24-LR
◉ Compliant with the RoHS directive
◉ Single power supply with +3.3V
◉ Operating temperature:Standard: -0 to +70°C, Industrial: -40 to +85°C
TRANSMITTER TABLE
Criteria |
MINIMUM |
TYPICAL |
MAXIMUM |
UNIT |
|
Wavelength (center) |
1480 |
1560 |
1360 |
nm |
|
Spectrum (-20 dB) |
- |
1 |
1 |
nm |
|
SMSR (Side Mode Suppression Ratio) |
-5 |
- |
+2 |
dB |
|
Power Output |
9 |
- |
- |
dBm |
|
Extinction rate |
- |
- |
- |
dB |
|
Rise/Fall Time Optics (20%~80%) |
- |
- |
0.26 |
Ps |
|
Differential data input |
Swing |
400 |
- |
1800 |
min |
Impedance |
90 |
- |
110 |
Ohms |
|
TX |
Disable |
2.0 |
- |
Vcc |
v |
Enable |
0 |
100 |
0.8 |
v |
|
Fault |
2.0 |
- |
Vcc |
v |
|
Normal |
0 |
- |
0.8 |
v |
RECEIVER TABLE:-
Criteria |
MINIMUM |
TYPICAL |
MAXIMUM |
Unit |
|
Sensitivity |
1260 |
- |
1610 |
dBm |
|
Overload |
- |
-23 |
dBm |
||
LOS |
De Assert |
-3 |
- |
dBm |
|
Assert |
-35 |
- |
-24 |
dBm |
|
Hysteresis |
1 |
- |
4 |
dB |
|
Data Output swing differential |
370 |
- |
1800 |
mV |
|
Rx |
High |
2.0 |
- |
vcc |
v |
Low |
- |
0.8 |
v |
USE CASES:-
- SFPs are used to connect networking equipment with fiber optic cables. There are several SFPs available, that have different data-rate capabilities and transmission distances based on our needs. And also offer a dual data rate of 1.25Gbps/1.063Gbps over dual fiber and has a maximum transmission distance of 80 km. This makes them ideal for connecting equipment that needs to send data over long distances quickly and reliably.
- When compared to other brands' SFPs, Syrotech offers a low cost, a high level of efficiency, and compliance with the latest industrial standards.
For More Information:
For more information about switches & other accessories, visit blog pages or make contact with the technical support team
Warranty:- For warranty information, visit https://syrotech.com/warranty-disclaimer/.
