D LINK DGS 1510-28X/ 52X 10 Gigabit Stackable smart managed Port switch 24 / 48 x 10/100/1000 BASE T Port - 4 x 10G SFP+ Port, L3 Static Routing
D Link 1510 series is the latest generation Smart Managed Switch enclosed with 10G uplink and available with 16,24 and 48 10/100 Mbps ports. These POE switches are capable of powering up IP Phones, wifi access points, and IP cameras of existing network infrastructure. This is an ideal perfect match for SMBs (Small Medium Business) and SMEs (Small Medium Enterprise) environments.
KEY FEATURES

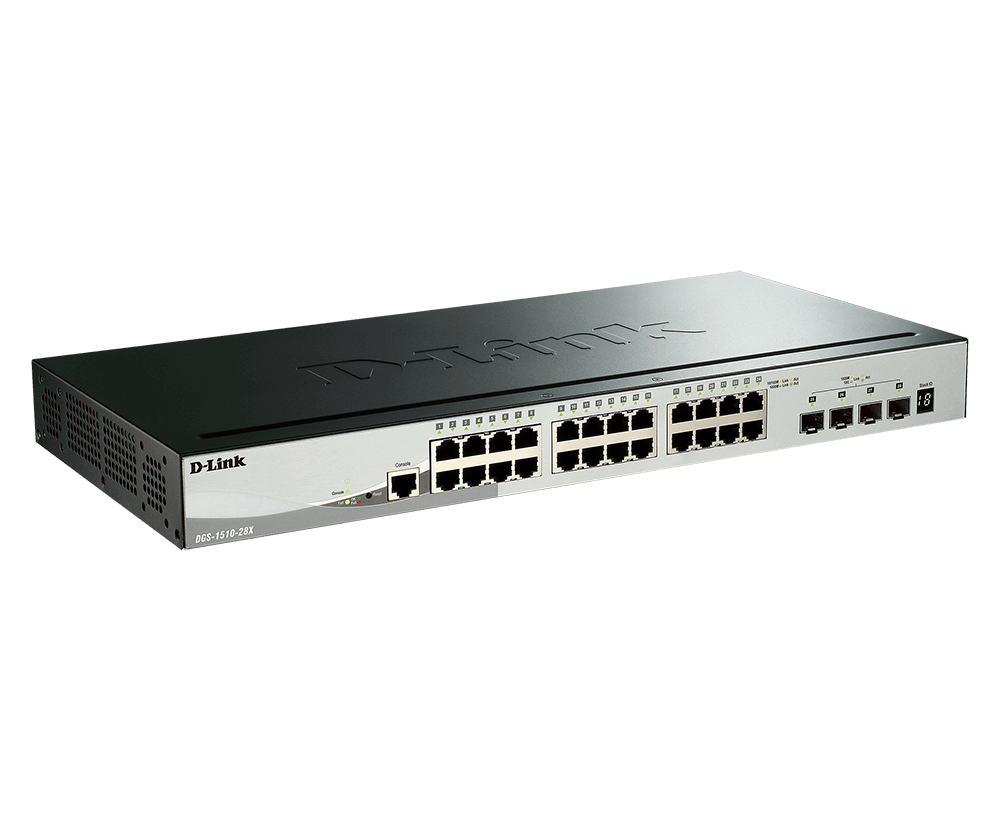

DGS-1510-28X
- 24 x 10/100/1000BASE-T ports
- 4 x 10G SFP+ ports
- Layer 2 management and security with Layer 3 capabilities
- Static Routing and MSTP
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Built-in SNMP MIB for remote network management systems
- Multi-language web-based user interface
- D-Link Network Assistant (DNA) utility for easy installation

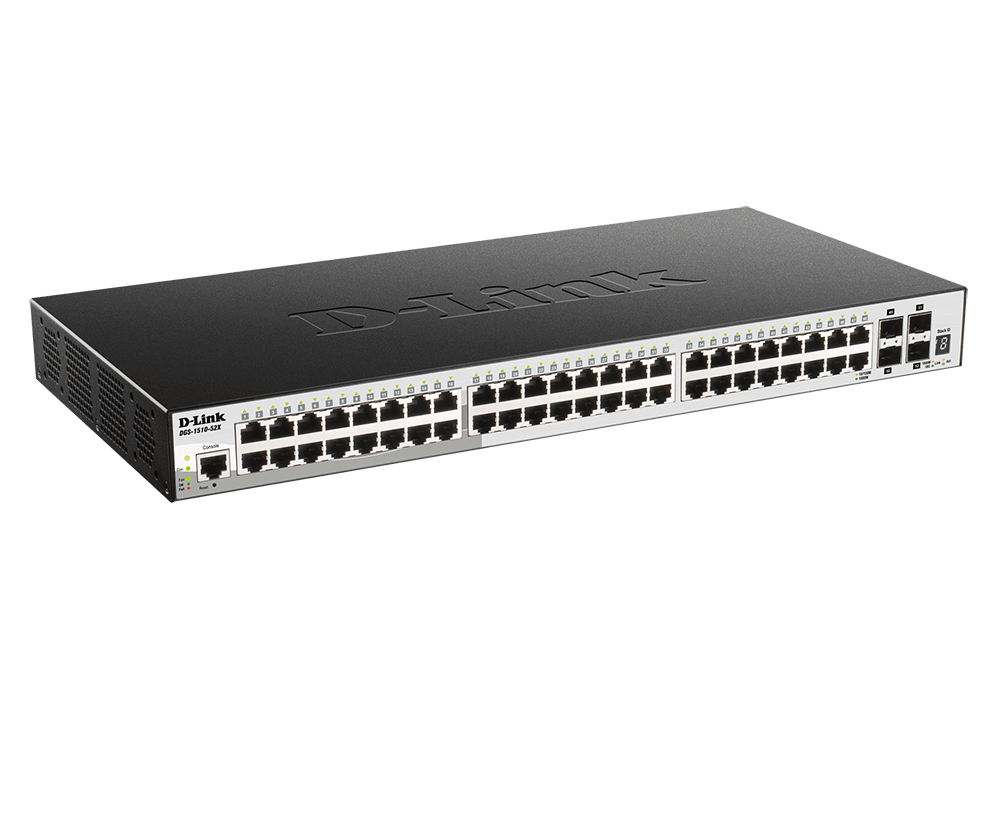

DGS-1510-52X
- 48 x 10/100/1000BASE-T ports
- 4 x 10G SFP+ ports
- Layer 2 management and security with Layer 3 capabilities
- Static Routing and MSTP
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Built-in SNMP MIB for remote network management systems
- Multi-language web-based user interface
- D-Link Network Assistant (DNA) utility for easy installation
TECHNICAL SPECIFICATION
|
Brand |
D LINK |
||
|
Model |
DGS-1510-28X |
DGS-1510-52X |
|
|
Hardware |
A1 |
A2 |
|
|
Interfaces |
24 x 10/100/1000 Mbps, 4 x 10G SFP+ |
48 x 10/100/1000 Mbps,4 x 10G SFP+ |
|
|
Standards & Functions |
|
||
|
Cables |
|
||
|
Duplex |
Speeds of 10/100 Mbps in full/half-duplex Speed of 1000 Mbps with full duplex |
||
|
Media Interface |
All twisted-pair ports are automatically adjusted for MDI/MDIX |
||
|
PERFORMANCE |
|||
|
Capacity |
128 Gbps |
176 Gbps |
|
|
Forwarding Rate 64 bytes max |
95.24 Mpps |
130.95 Mpps |
|
|
MAC Address table |
Supports up to 16,384 entries |
||
|
Packet Buffer |
1.5 MB |
3 MB |
|
|
LEDs |
|||
|
Power |
YES |
||
|
Link/Active/Speed (per 10G SFP port) |
YES |
||
|
Link/Active/Speed (per 10G SFP+ port) |
YES |
||
|
Link/Active/Speed (per RJ45 port) |
YES |
||
|
PHYSICAL / ENVIRONMENTAL |
|||
|
MTBF |
516,593 hours |
423,302 hours |
|
|
Heat Dissipation |
76.04 BTU/hr |
163.68 BTU/hr |
|
|
Power |
Input voltage: 100-240V AC, 50/60Hz |
||
|
Dimensions (W x D x H) |
440 x 210 x 44 mm |
||
|
Weight |
2.40 kg |
3.10 kg |
|
- These D Link 1510 series are latest generation from 1210 series. This switch is integrated with advanced L3 management features such as industry-standard CLI, serial console port,web-based UI, and network Capabilities (VLAN, multiple spanning tree protocol, link aggregation, static routing, multiple firmware images, and multiple configuration files).
- Direct attach cables or compatible SFP+ transceivers can be used to create physical stacks of up to 6 units for a total of 288-gigabit ports. Additionally, the remaining uplink ports can provide 10G connectivity for core networks and servers.
- Features such as IGMP snooping, access control lists, port security, and the unique Safeguard Engine are enabled to protect from malicious service attacks via broadcast, multicast and unicast flooding. These Intelligent gigabit switches are an excellent solution for enterprise networks.
- Auto Surveillance and Voice VLAN are best suited for VoIP and video deployments. It consolidates data and video transmissions through a single Smart Managed switch, saving businesses money on hardware and infrastructure. IPv6 functionalities such as security features, QOS, and MLD snooping are used to integrate seamlessly with next-generation networks.
- D-Link Network Assistant is a web-based management Interface that enables the administrator easily to set up, configure, and manage the network remotely. These CLI and SNMP allow for centralizing management for a large number of connected devices. It provides access to devices in case of a loss of connectivity or an overloaded switch. Integration of IEEE 802.3 az which automatically decreases the power consumption of low-level traffic.
- When comes to pricing, these Smart managed switches are next-generation series of 1210 & 1250. This switch is slightly more expensive than the 1210 & 1250 series, but it is affordable compared to other top-level brands and has a high level of performance.
OTHER INTERFACES
|
L2 Features |
|
|
|
VLAN |
|
|
|
Stackability |
|
|
|
Quality of Service
|
|
|
|
Based on:
|
||
|
L3 Functions |
|
|
|
Access Control List |
|
|
|
Authentication, Authorization, and Accounting |
|
|
|
Security |
|
|
|
Operations, Administration, and Maintenance |
Cable Diagnostics, sFlow, Factory Reset |
|
|
Management |
Command Line Interface (CLI), Telnet Server, TFTP Client, IPv6 Neighbor Discovery, Configurable MDI/MDIX, SNMP, Supports v1, v2c, v3, SNMP Trap, System Log, Maximum 10,000 log entries, Debug command, Multiple images, Surveillance mode, DHCP Client, D-Link Network Assistant support, SNTP, ICMPv6, IPv4/v6 Dual Stack, DHCP Auto Configuration, RMON v1, LLDP, LLDP-MED, DHCP relay, Web-based GUI,NTP, Telnet client (supports CLI only) , PD-Alive (PoE models only) |
|
|
Green Technology |
|
|
POWER BUDGETS
Utilizes Green 3.0 technology to conserve power without sacrificing performance or functionality. Using IEEE 802.3az Energy-Efficient Ethernet (EEE) standard, the network automatically reduces power consumption when there is no traffic.
|
DGS-1510-28X |
DGS-1510-52X |
|
|
Power Input |
AC Input: 100 to 240 V AC, 50/60 Hz |
|
|
Max. Power Consumption |
22.3 W |
48 W |
|
Standby mode |
15.2 W |
30.3 W |
|
Audible |
42.7 dB(A) |
49.7 dB(A) |
|
Smart Fan |
2 |
1 |
|
Operating Temperature |
-5 to 50°C (23 to 122°F) |
|
|
Storage Temperature |
-20 to 70°C (-4 to 158°C) |
|
|
Operating Humidity |
0% to 95% relative humidity |
|
|
Safety |
cUL, CB |
|
ORDER INFORMATION
|
Item |
Description |
|
DGS-1510-28X |
24 x 10/100/1000 Mbps and 4 x 10G SFP+ |
|
DGS-1510-52X |
48 x 10/100/1000 Mbps and 4 x 10G SFP+ |
