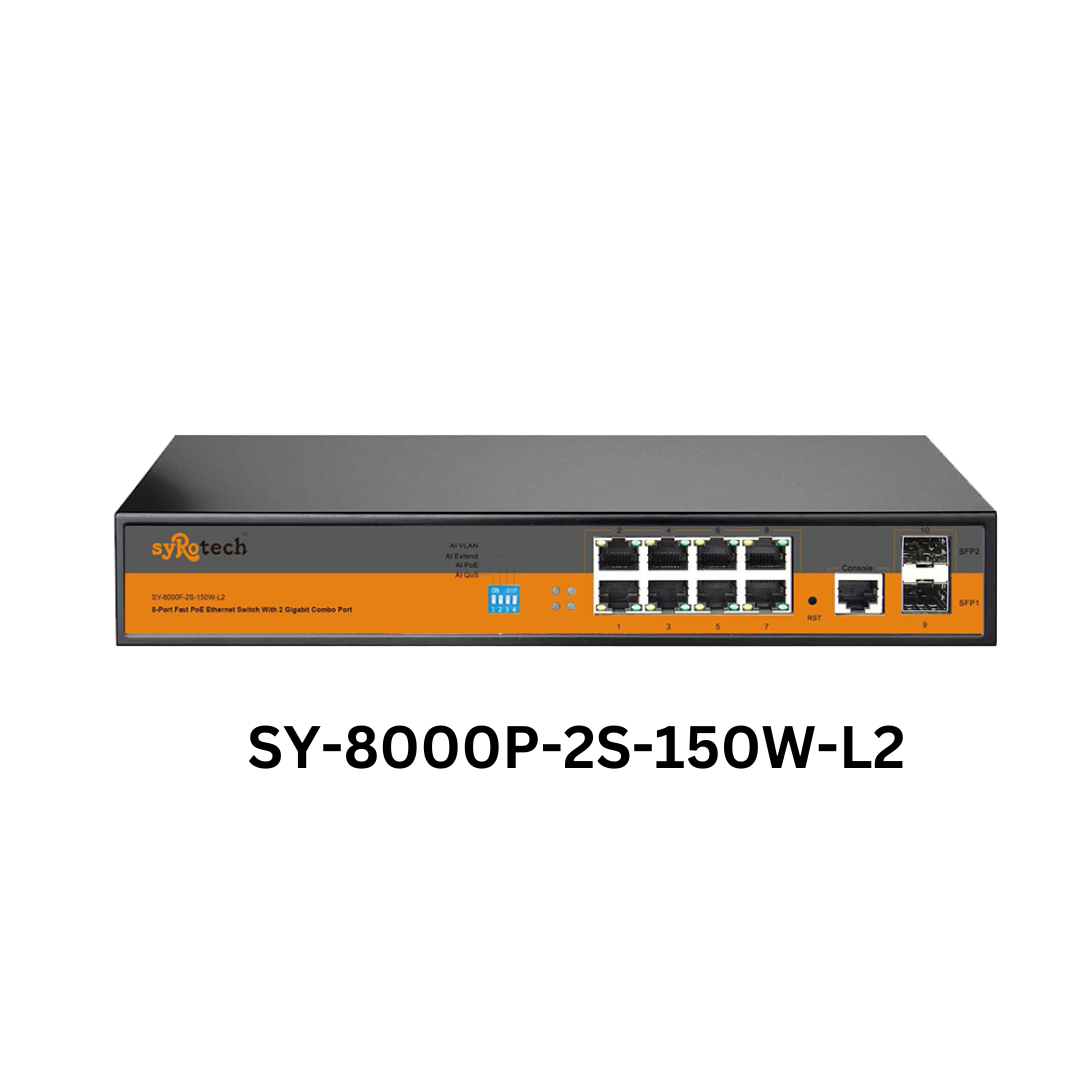

Syrotech-8000p-2S-150W-L2-POE switch-20 Gbps bandwidth-web managemet-100 meters range-IEEE 802.3 at -Plug & Play

SY-8000P-2S-150W-L2 POE switch supports IEEE802.3af/at Standard, the maximum transfer distance is 100 meters. This PoE switches supply power to end devices with IEEE802.3af/at standard, so users need not worry about their non-PoE devices being damaged. Additionally, the PoE switch will stop providing power when the PoE-powered device is disconnected. As a result of its simple and reliable design, L2switch has the capability to identify the PoE demand, speed, duplex, and cable type Auto Uplink on the fly. It is mainly used for wireless APs and IP surveillance cameras, reducing costs and simplify installation.

KEY FEATURES:-

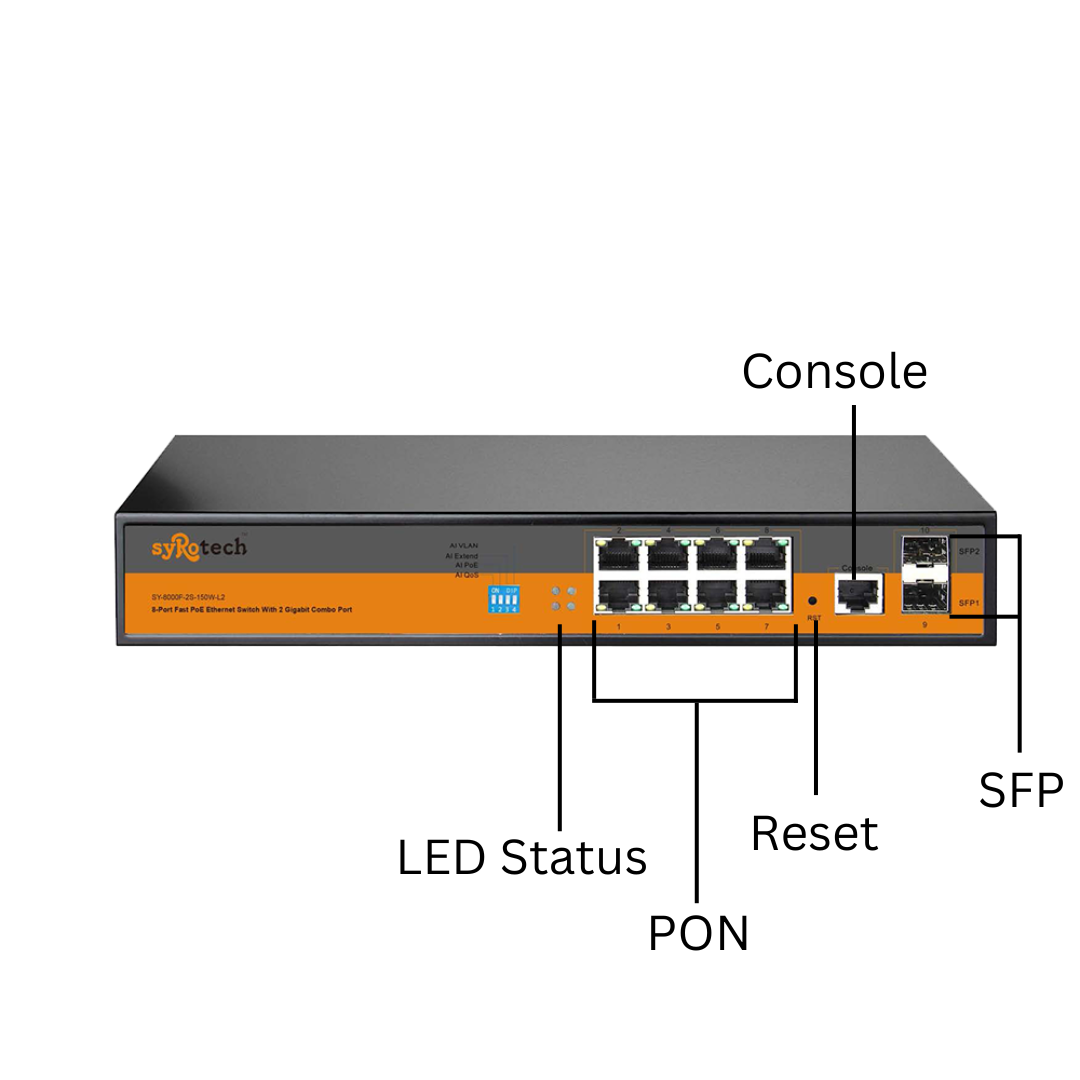

➛ 8 10/100/1000Mbps PoE port, 2 gigabit SFP port

➛ Comply with IEEE 802.3af/at Standard

➛ Distances up to 100 meters can be transferred

➛ Cat5 cable power for wireless APs and IP surveillance

➛ Switching method based on store-and-forward

➛ Each port has an LED indicator

➛ 20Gbps bandwidth

➛ 150W Internal power supply

➛ Support L2 web management

➛ Automatically detects the PoE class level of a Powered Device

➛ Support single output automatic protection function and with self-recovery capability.

➛Plug and Play

SPECIFICATION

UTILIZE FOR:

Syrotech 8000 P-2S-L2 Switch is a reliable, high-speed switch that provides POE power to the end user.  with IEEE 802.3af/at Standard, this switch is perfect for powering any POE-compatible device. We can use this L2 switch in areas with a high number of APs, IP cameras, and VoIP such as IT, schools, hotels, retail, businesses, and homes.

Compared to other brands on the market, the  Syrotech L2 Switch is cost-effective and easy to manage. This web-managed switch comes with 8 /10 /12 /24 /48 ports of GbE, as well as 2 SFP+ 10GbE uplink ports.

INTEGRATION

HERE ARE SOME APPLICATION SUGGESTIONS:

1. Check the PoE switch

➛ Check the enclosure, RJ45 ports, and LED indicators.

➛ Make sure the PoE switch is powered and initialized as follows:

➛  At the beginning of a power connection, the POE indicator is off

➛ Indicator of POW is always on

➛ One or two seconds later, other indicators will turn off

2. Connection cables

 1) Use CAT5 or 6 cables to connect the switch to a computer or other PD (IP camera, APs)

 2) Connect the external power adapter to  Switch and the AC plug to power cord

ORDER INFORMATION

For More Information:

For more information about switches & other accessories, contact our technical support team.

Warranty:- Warranty information for the syrotech 8000P -2s- L2 switch is available at https://syrotech.com/warranty-disclaimer/
