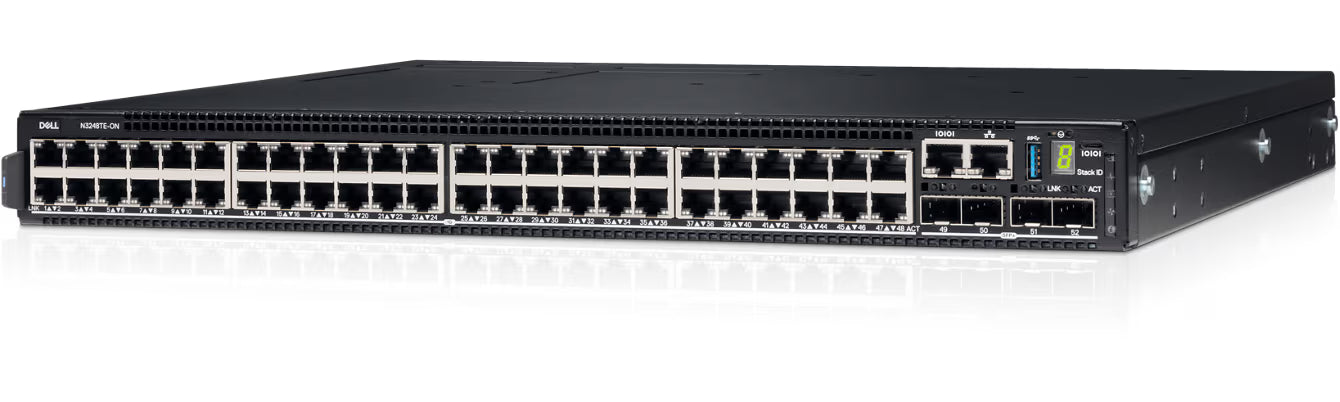

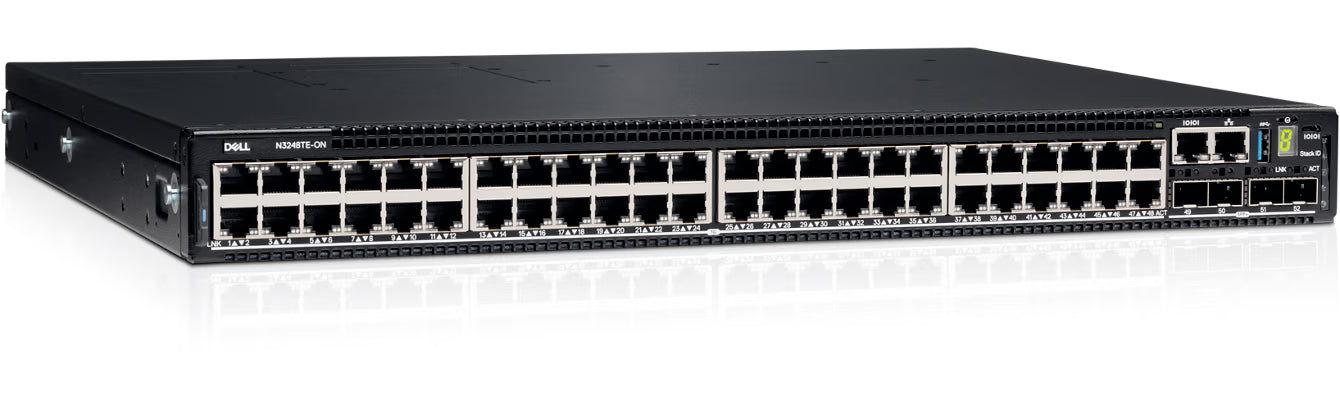

Dell EMC N3248TE-ON - 48-Port Multi-Gig RJ45 Access Switch with 6 × 10/25/40/100GbE Uplinks, PoE+ Ready, Layer 3 Managed Switch

Dell EMC N3248TE-ON is a versatile, high-performance Layer 3 access switch designed for modern enterprise networks requiring flexibility, speed, and reliability. It features 48 multi-gigabit RJ45 ports supporting 1/2.5/5/10GbE connectivity, providing seamless support for bandwidth-intensive devices such as Wi-Fi 6 access points, IP phones, and video surveillance systems. The switch also includes 6 high-speed uplink ports capable of 10/25/40/100GbE, enabling robust interconnection to distribution and core layers while ensuring high-capacity data aggregation.

With PoE+ support, the N3248TE-ON can deliver power directly to connected devices, simplifying deployment and reducing cabling needs. Built on Dell’s OS10 network operating system, it provides advanced Layer 3 features including static and dynamic routing, VLANs, Quality of Service (QoS), and stackable architecture, allowing scalable and resilient network designs. In addition, it offers comprehensive security, automation, and real-time telemetry, while supporting cloud-ready management and integration, making it an ideal choice for enterprise campuses, data centers, and high-performance networking environments.                                   KEY FEATURES:

• Total Ports: 48 × Multi-Gig RJ45 (1/2.5/5/10GbE), 6 × 10/25/40/100GbE uplinks
• Switching Capacity: 576 Gbps full-duplex
• Forwarding Rate: 800 Mpps
• CPU / Memory: Multi-core processor with 4 GB RAM
• Storage: 32 GB onboard flash
• Packet Buffer: 8 MB shared buffer
• MAC Address Table: 32,000 entries
• VLAN Support: Up to 4,094 VLANs
• Jumbo Frames: Up to 9,216 bytes
• Latency: Sub-microsecond typical at 10G/25G
• Form Factor: 1U Fixed Rack Mount

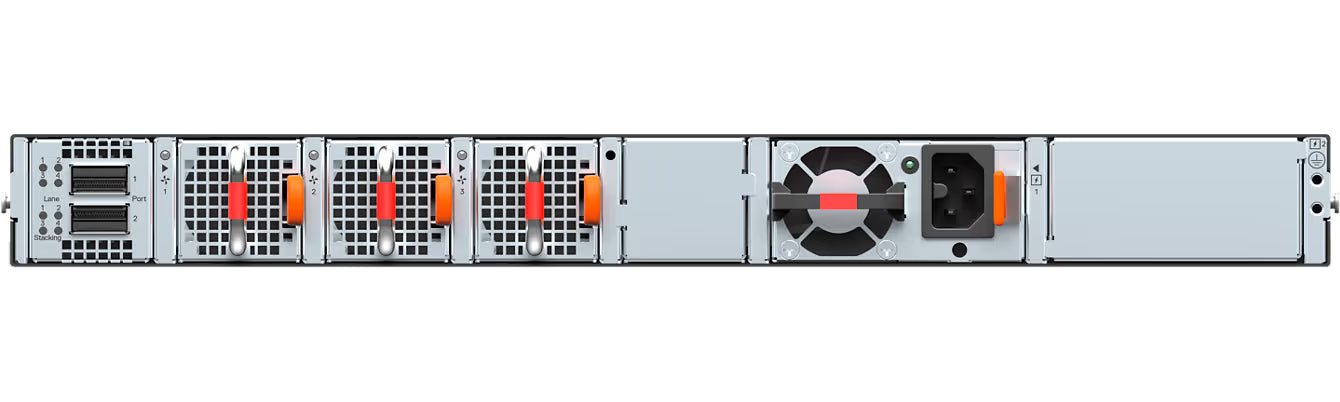

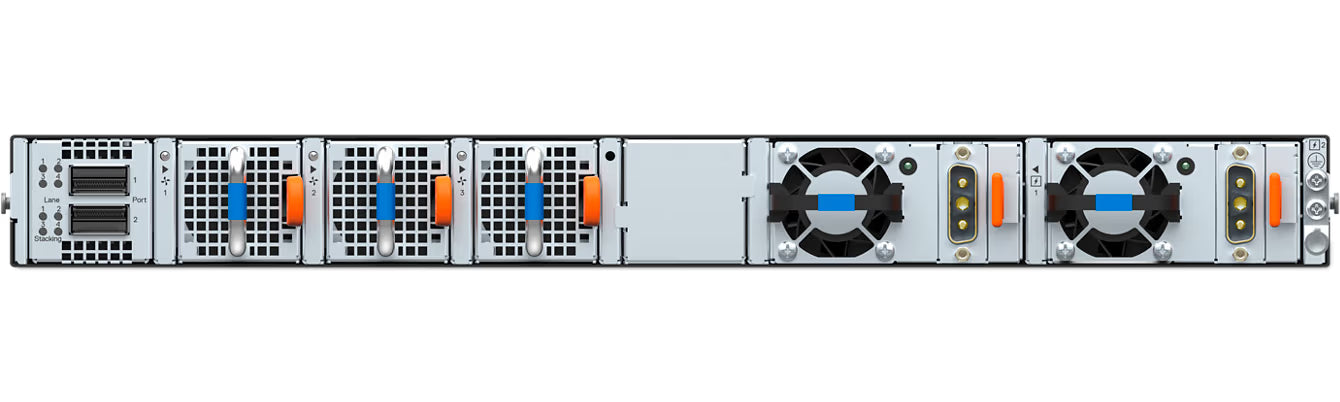

• Airflow: Front-to-Rear (I/O Panel to PSU) and Rear-to-Front (PSU to I/O Panel) airflow
• Fans & Power Supply: 4 × Hot-swappable fans, 2 × AC PSUs (redundant)
• High Availability: VSF stacking (up to 8 members), redundant fans and PSUs
• Advanced Features: Layer 2/3 switching, EVPN-VXLAN, BGP/OSPF, MLAG, QoS, MACsec-ready, telemetry, automation, and cloud-ready management
• Management Ports: 1 × RJ-45 console, 1 × Out-of-Band management (OOB)



TECHNICAL SPECIFICATIONS:

HARDWARE:

PERFORMANCE:

SECURITY:

MANAGEMENT & AUTOMATION:

PHYSICAL & ENVIRONMENTAL:

ADVANCED FEATURES:

Intelligent Layer 2 and Layer 3 Switching for Modern Networks:

The N3248TE-ON provides enterprise-grade Layer 2 and Layer 3 switching with robust capabilities for campus, branch, and data center edge networks. Layer 2 features include support for VLAN tagging (802.1Q), Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), and link aggregation (LACP) to increase bandwidth and provide redundancy. On the Layer 3 side, the switch supports IPv4/IPv6 static routing, OSPF, BGP, and VRF-lite, enabling flexible routing segmentation and efficient traffic forwarding across multiple network segments. This ensures seamless connectivity for distributed enterprise environments and hybrid IT infrastructures.

High-Capacity Multi-Gig Access Ports and Flexible Uplinks:

Equipped with 48 multi-gigabit RJ45 ports capable of 1/2.5/5/10GbE speeds, the N3248TE-ON accommodates high-bandwidth devices such as Wi-Fi 6 access points, IP cameras, VoIP phones, and next-generation desktop systems. Six high-speed uplink ports supporting 10/25/40/100GbE provide scalable interconnections to core networks or data center aggregation layers. This combination ensures low-latency traffic flow and supports future growth in enterprise environments.

Enterprise-Grade Security and Threat Mitigation:

Comprehensive security features safeguard both network infrastructure and endpoints. The switch supports 802.1X port-based authentication, MACsec-ready encryption, Role-Based Access Control (RBAC), and advanced Layer 2/3/4 Access Control Lists (ACLs). It also includes DHCP snooping, Dynamic ARP Inspection (DAI), IP Source Guard, control plane policing, and storm control to prevent spoofing, unauthorized access, and denial-of-service attacks. Encrypted management protocols such as SSH, HTTPS, and SNMPv3 provide secure administration and auditing capabilities.

Advanced Quality of Service (QoS) and Traffic Optimization:

The N3248TE-ON ensures reliable performance for latency-sensitive applications through advanced QoS mechanisms. Features include multiple egress queues per port, traffic shaping, Weighted Random Early Detection (WRED), congestion management, and IEEE 802.1Qbb priority flow control. Efficient multicast handling via IGMP Snooping and PIM-SM/SSM allows optimal delivery of streaming video and collaborative applications while minimizing network congestion. These capabilities make the switch ideal for real-time voice, video, and IoT traffic.

Automation, Telemetry, and Programmable Network Operations:

The switch supports full automation and programmable management through Dell OS10 using Ansible, Puppet, Chef, Python SDK, and REST APIs. Zero-Touch Provisioning (ZTP) accelerates deployment and reduces operational overhead. Real-time telemetry, including sFlow, RMON, streaming telemetry, and SNMP, enables network teams to monitor performance, detect anomalies, and optimize capacity. Integration with cloud platforms and network orchestration tools allows centralized management of hybrid enterprise networks.

Resiliency, High Availability, and Network Scalability:

The N3248TE-ON features hot-swappable redundant fans, dual AC power supplies, Multi-Chassis Link Aggregation (MLAG), and VSF stacking, providing high availability, rapid failover, and fault tolerance. Rapid spanning tree convergence, link aggregation, and redundant uplinks ensure continuous service in mission-critical enterprise edge and aggregation networks. The architecture supports expansion and scaling to meet future network demands without compromising performance.

Energy Efficiency and Environmental Optimization:

Energy Efficient Ethernet (EEE) reduces power consumption during low-utilization periods. Variable-speed hot-swappable fans and intelligent thermal monitoring maintain optimal operating temperatures and minimize noise, supporting high-density office, campus, and data center deployments. These environmentally conscious features help reduce operational costs while ensuring reliable, high-performance switching.

Enhanced Network Analytics and Observability:

Integrated telemetry and analytics enable deep visibility into network behavior, application performance, and traffic patterns. The Network Analytics Engine (NAE) provides proactive alerts, automated diagnostics, and root-cause analysis for faster troubleshooting. Combined with programmable APIs and cloud integration, these capabilities allow IT teams to optimise performance, enforce policies, and predict network issues before they impact operations.

ORDERING INFORMATION:

WARRANTY & SUPPORT:

Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.

All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
