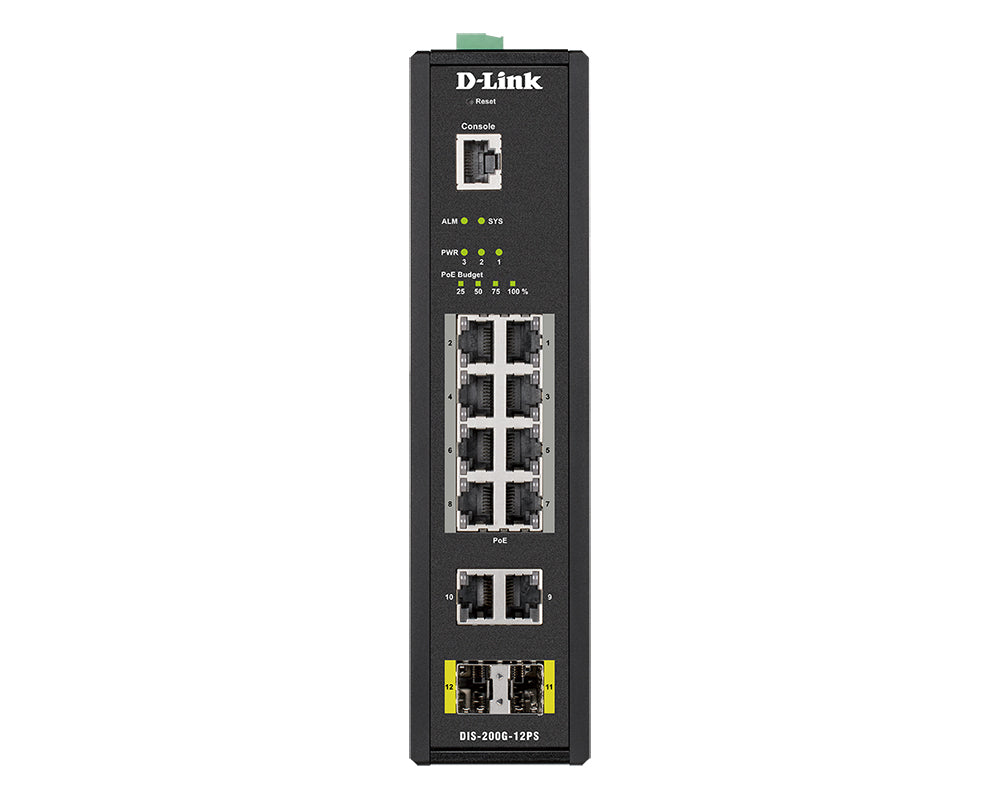

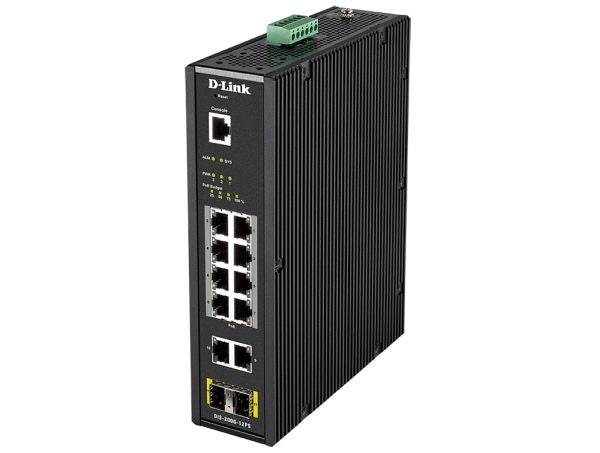

D-Link DIS-200G series Smart managed layer 2-gigabit smart switch are integrated with
- 8 x PoE BASE-T 10/100/1000 Ports,
- 2 x 10/100/1000 BASE-T Port along with 2 x SFP Ports.
With its robust design, it is ideal for deployment in industrial and outdoor surveillance settings.It is also capable of working in the hardest environments. These smart switches are enclosed with advanced management and provide a security function to complete industrial network solutions.
KEY FEATURES
DIS-200G-12PS / DIS-200G-12PSW
- 8 x 10/100/1000BASE-T POE ports ,2x 10/100/1000 BASE-T Port & 2 x SFP ports
- Ethernet Ring Protection Switching for quick failover recovery
- 6 kV surge protection on copper ports
- IEEE 802.1Q and port-based VLAN
- IEEE 802.1p Quality of Service (QoS)
- L2 functions as IGMP and MLD Snooping
- Loopback detection and cable diagnostics
- Auto-Surveillance VLAN 2.0 (ASV 2.0)
- Dual power input for redundant power supply
TECHNICAL SPECIFICATION
|
Model |
DIS-200G-12 PS |
DIS-200G-12 PSW |
|
Interfaces |
8* 10 /100 /1000 BASE-T POE ports, 2* 10/100/1000 BASE-T port & 2 * SFP ports,1 * Rj45 Console port |
|
|
Media Interface Exchange |
Auto MDI/MDIX adjustable for all twisted-pair ports |
|
|
Standard |
|
|
|
Mac Address |
8K Entities |
|
|
CPU Speed |
416MHz |
|
|
DRAM Memory |
128 MB |
|
|
Flash memory |
32 MB |
|
|
Max. forward Rate |
17.85 Mpps |
|
|
LEDs |
SYS, ALM , PWR1/2/3,Link/Activity/Speed, PoE status ,PoE budget |
|
|
POE |
||
|
Standard |
IEEE 802.3af/at |
|
|
Capable Port |
1 to 8 |
|
|
Power budget |
Maximum 240 W |
|
|
PHYSICAL/ ENVIRONMENTAL |
||
|
MTBF |
213,112 hours |
156,452 hours |
|
Housing |
IP30-rated metal casing |
|
|
Heat dissipation |
887.16 BTU/hr (PoE on) 36.85 BTU/hr (PoE off) |
|
|
Dimension |
210 x 171.2 x 53 mm |
|
|
Weight |
1.76 Kg |
|
- Gigabit Smart Managed Industrial Switches are designed to withstand harsh environmental conditions. With IP30-rated metal casing, these switches are protected from unwanted effects while operating in strong electromagnetic interference (EMC) environments. Surge protection of 6 kV is built into all copper ports of the DIS-200G Series switches to prevent damage from power surges and lightning strikes.
- Ethernet Ring Protection Switching (ERPS) and dual power inputs make the switch robust. This high redundancy design includes layer 2 functions such as IEEE 802.1Q, port-based VLAN, IEEE 802.1p Quality of Service (QoS), STP/RSTP/MSTP, port mirroring, link aggregation, bandwidth control, IGMP/MLD Snooping and auto-Surveillance VLAN 2.0 (ASV 2.0).
- Smart switches support ERPS quick failover recovery for ring topologies. It ensures minimal downtime and prevents data loss in mission-critical environments. They also support an Auto-Surveillance VLAN (ASV) feature that detects surveillance devices automatically and places them in a dedicated VLAN segment traffic. As the switch provides greater security for surveillance data and prioritizes the traffic, live video won't freeze or delay. Loopback detection and cable diagnostics make it easy for troubleshooting.
Why do we need it ?
Industrial switches are necessary for managing networks in harsh environments where conventional switches might not work. Their features include high EMC endurance, surge protection, and wider operating temperature ranges. manufacturing, transportation, and energy Industries use smart industrial switches to ensure reliable and efficient communication between devices.
OTHER INTERFACES
|
VLAN |
|
|
OAM |
|
|
Layer 2 |
|
|
QOS |
|
|
Security |
|
|
AAA |
Web-based access control, RADIUS |
|
Management |
|
|
MIB/RFC Standards |
RFC768 UDP ,RFC791 IP , RFC792 ICMP ,RFC793 TCP , RFC826 ARP ,RFC1213 MIB II • RFC1493 Bridge MIB , RFC1907 SNMPv2 MIB , RFC2668 802.3 MAU MIB ,RFC4133 Entity MIB , RFC4363 IEEE 802.1p MIB , ZoneDefense MIB ,Private MIB |
POWER BUDGETS
|
Input |

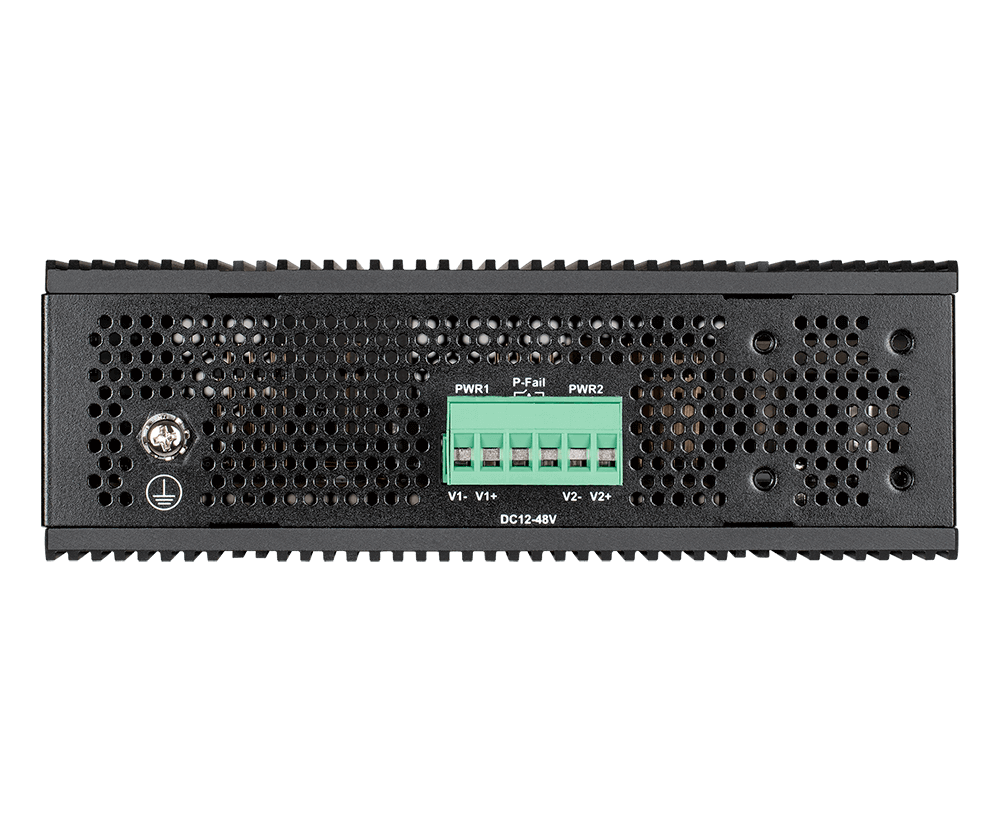

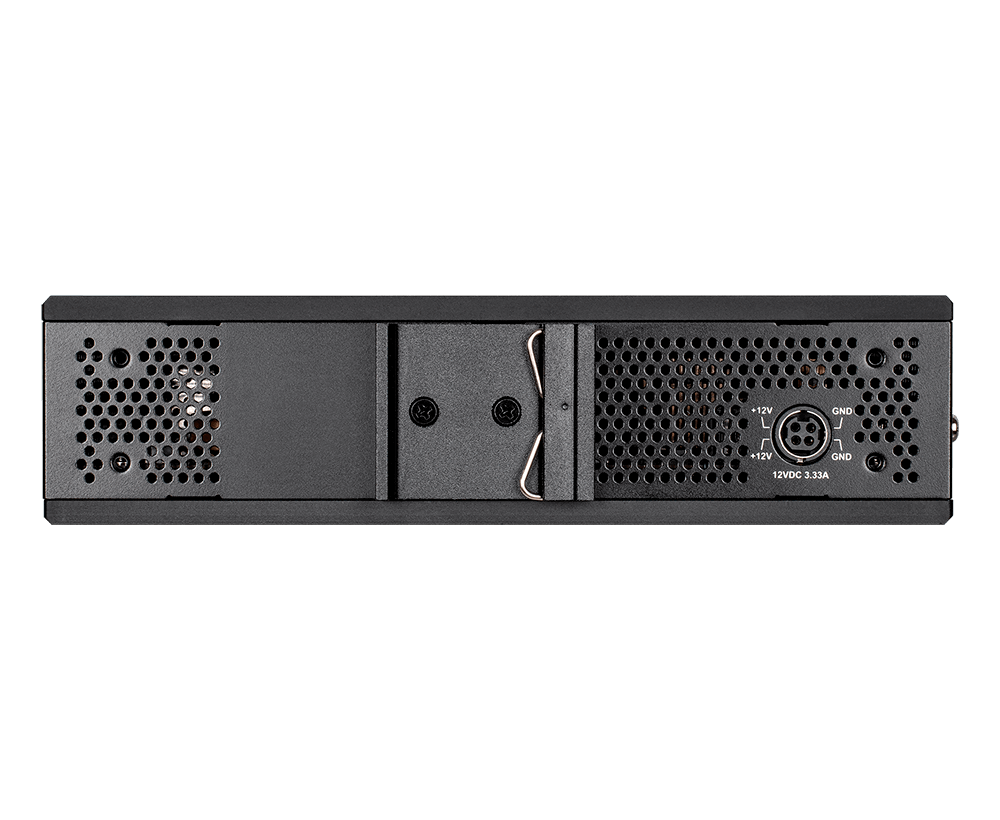

12~48Vdc, redundant dual inputs through terminal block/12Vdc through 4-pin power din |
|
|
Input current |
48 to 54 V DC terminal block dual input 54 V DC 4-pin DIN single power input |
|
|
Consumption |
Maximum: 260 W (PoE on) Maximum: 10.8 W (PoE off) Standby: 7.02 W |
|
|
EMI |
CISPR 22, FCC Part 15B Class A |
|
|
EMS |
EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5, EN 61000-4-6 CS , EN 61000-4-8 |
|
|
Operating Temperature |
-40 to 65 °C (-40 to 149 °F) |
-40 to 75 °C (-40 to 167 °F) |
|
Storage Temperature |
-40 to 85 °C (-40 to 185 °F) |
|
|
Operating Humidity |
0% to 95% RH, non-condensing |
|
DEPLOYMENT SCENARIO
ORDER INFORMATION
The manufacturer of the product is responsible for all warranties, which are dependent on the date of purchase and their validity. At Grabnpay, we take responsibility for ensuring that the products we sell are delivered on time and in their original condition. If you encounter any physical damage or operational issues with your purchase, our team will assist you in finding an appropriate solution. We offer support for device installation, configuration, and management. If you need to claim a warranty, we will guide you through the process of contacting the manufacturer and help you until the process is complete.
|
Item |
Description |
|
DIS-200G-12 PS |
8 x 10/100/1000 Mbps PoE ports + 2 x 10/100/1000 Mbps ports + 2 x SFP ports switch |
|
DIS-200G-12 PSW |
8 x 10/100/1000 Mbps PoE ports + 2 x 10/100/1000 Mbps ports + 2 x SFP ports switch with -40 to 75 °C operating range |
