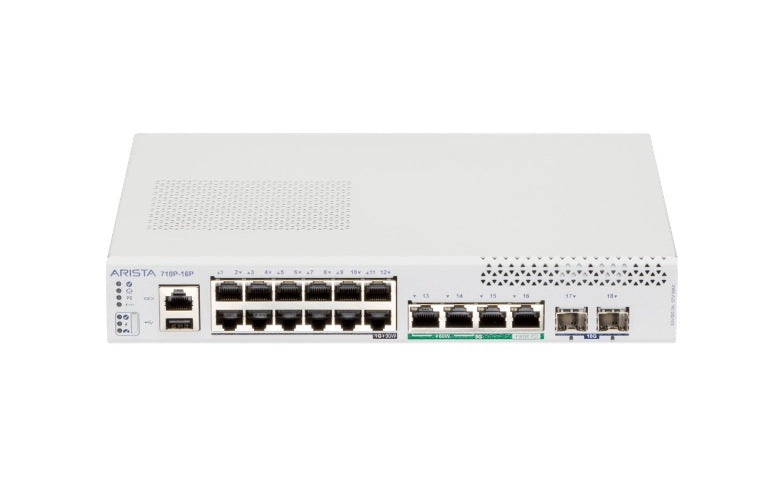

The Arista CCS-710P-16P is a high-performance, fanless, compact PoE+ switch designed for modern enterprise, retail, and IoT environments. With 12 x 1G PoE+ ports, 2 x multi-gigabit PoE+ ports (1G/2.5G/5G), and 2 x 10G SFP+ fibre uplinks, this switch delivers advanced cloud-managed networking in space and noise-sensitive settings.
KEY SPECIFICATIONS:
- Total Ports: 18
- 12 x 1G PoE+ (up to 40W each)
- 2 x 1G/2.5G/5G PoE+ (up to 60W each)
- 2 x 10G SFP+ fibre uplinks
- PoE Budget: Up to 230W
- Switching Capacity: 104 Gbps
- Forwarding Rate: 78 Mpps
- Dimensions: 8.4" x 10.59" x 1.7" (213.36 x 269 x 43.5 mm)
- Weight: 5.0 lbs (2.27 kg)
- Product Type: Compact Layer 2/3 Managed Ethernet Switch
- Processor: Dual-core x86
- Memory: 4 GB RAM
NETWORKING SPECIFICATIONS:
|
FEATURES |
DETAILS |
|
Product Type |
Layer 2/3 Managed PoE+ Switch |
|
Processor |
Dual-core x86 |
|
Memory |
4 GB RAM |
|
Total Ports |
18 |
|
Downlink Ports |
12 x 1G PoE+, 2 x 1G/2.5G/5G PoE++ |
|
Uplink Ports |
2 x 10G SFP+ (non-PoE) |
|
Switching Capacity |
104 Gbps |
|
Forwarding Rate |
155 Mpps |
|
PoE Budget |
230W (with 280W PSU) |
|
Latency |
~1.2 µs |
|
MAC Addresses |
Up to 32K |
|
IPv4/IPv6 Host Entries |
16K / 8K |
|
ACL Support |
2K ingress / 512 egress |
|
Power Input Options |
150W or 280W PSU, or 90W PoE PD |
|
Dimensions (mm) |
213.36 x 269 x 43.5 mm |
|
Weight |
2.27 kg |
The Arista CCS-710P-16P is ideal for powering high-density devices such as access points, security cameras, VoIP phones, and IoT sensors. Designed for quiet workspaces like schools, offices, hospitals, and retail outlets, its silent, fanless operation ensures zero disruption. It also enables seamless integration into enterprise and cloud-managed networks with Arista EOS and CloudVision.
OTHER FEATURES:
|
Console Port (RJ45) |
CLI access for setup and recovery |
|
USB Port |
Firmware updates and config backup |
|
Status LEDs |
Power, system, PoE, and link indicators |
|
12 x 1G PoE+ Ports |
Gigabit downlink with PoE+ (up to 40W) |
|
Port Labels (1–12) |
Easy identification of PoE+ ports |
|
2 x Multi-Gig Ports |
1G/2.5G/5G PoE++ ports (up to 60W) |
|
PoE-IN Port |
Input power via PoE (up to 90W) |
|
Reserved Port |
Special/internal use (non-user accessible) |
|
2 x SFP+ Uplink Ports |
10G fibre uplinks (non-PoE) |
|
Ventilation Panel |
Silent, fanless cooling |
|
Model / Branding Label |
Model number and Arista logo |
NETWORKING PROTOCOLS:
|
CATEGORY |
KEY FEATURES |
|
Layer 2 |
STP, RSTP, MSTP, VLAN, Q-in-Q, LLDP, LACP, MLAG, Jumbo Frames, Storm Control |
|
Layer 3 |
Static Routing, OSPF, BGP, RIP, IS-IS, ECMP, VRRP, VARP, BFD |
|
Multicast |
IGMP, PIM-SM/SSM/BIDIR, Anycast RP |
|
QoS |
802.1p, DSCP, ECN, 8 Queues, WRR, Priority, Policing, Rate Limiting |
|
Security |
802.1X, MAC Auth, RADIUS, TACACS+, ACLs, DHCP Relay, CPP |
|
Management |
ZTP, SNMP, SSH, Syslog, APIs, eAPI, CloudVision, USB Restore |
|
Monitoring |
sFlow, IPFIX, LANZ, Port Mirroring, AEM, Beacon LED |
|
Virtualisation |
VXLAN, EVPN, GRE, CVX |
|
Standards |
802.3af/at/bt, 802.1Q/p/X, 802.3x/ad, 1588 PTP |
|
Mounting |
Desktop, Wall, Rack, DIN Rail |
TECHNICAL SPECIFICATIONS:
|
CATEGORY |
SPECIFICATION |
|
Brand |
Arista Networks |
|
Type |
Compact Layer 2/3 Managed PoE+ Switch |
|
Model |
CCS-710P-16P & CCS-710P-12 |
|
CPU |
Dual-Core x86 |
|
Memory |
4GB RAM, 8GB Flash |
|
Packet Buffer |
2MB |
|
Switching Capacity |
104 Gbps |
|
Forwarding Rate |
155 Mpps |
|
Latency |
~1.2 microseconds (RJ45) |
|
Traffic Monitoring |
sFlow (real-time traffic sampling), IPFIX, Port Mirroring, LANZ, Event Manager |
|
Cloud Management |
CloudVision CUE, CloudVision On-Prem, REST APIs, SNMP, SSH |
|
Downlink Ports |
12 x 1G RJ45 PoE+ (up to 40W per port) |
|
Multi-Gig Ports |
2 x 1G/2.5G/5G RJ45 PoE++ (up to 60W per port) |
|
PoE Input Port |
1 x RJ45 (1G–5G) PoE PD (up to 90W input) |
|
Uplink Ports |
2 x 10G SFP+ (non-PoE) |
|
PoE Budget |
Up to 230W (with 280W PSU), 99W with 150W PSU, 39W from 90W PoE input |
|
PoE Per-Port |
Standard ports up to 40W, Multi-Gig ports up to 60W |
|
Power Consumption |
51W (system only, excluding PoE) |
|
Power Supply Options |
150W External PSU / 280W External PSU / PoE PD input |
|
Dimensions |
213.36 x 269 x 43.5 mm (WxDxH) |
|
Weight |
2.27 kg |
|
Environmental - Operating Temp |
0°C to 40°C (Desktop), 0°C to 35°C (Wall/Ceiling) |
|
Environmental - Storage Temp |
-40°C to 70°C |
|
Humidity |
Up to 95% (non-condensing) |
|
Altitude |
Up to 3,000 metres (10,000 ft) |
|
Compatibility – Uplink |
Supports 10G SFP+ modules, DACs, AOCs |
|
Routing Protocols |
OSPF, BGP, RIP, IS-IS, MP-BGP |
ORDER INFORMATION:
Manufacturers are responsible for warranties, which are based on purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.
All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria.
|
ITEM |
MODEL |
DESCRIPTION |
|
CCS-710P |
CCS-710P-16P-FANLESS |
Compact 1U Fanless Layer 2/3 Managed PoE+ Switch, 12 x 1G PoE+, 2 x 1G/2.5G/5G PoE++, 2 x 10G SFP+ uplinks, dual-core x86 CPU, 280W PSU, CloudVision ready |
|
CCS-710P-12-FANLESS |
Compact 1U Fanless Layer 2/3 Managed PoE+ Switch, 8 x 1G PoE+, 2 x 1G/2.5G/5G PoE++, 2 x 10G SFP+ uplinks, dual-core x86 CPU, 150W PSU, CloudVision ready |
FOR MORE INFORMATION:
For more information about switches & other accessories, contact our technical support team.
