VSOL- EPON OLT- 8 PORT- FTTH FOR ONU -8*RJ45 ports -4*1 GE SFP Port-4*10 GE SFP+ Port-IEEE 802.3ah -IPV6

Increasing bandwidth demands and multi-media services require a next-generation optical access network capable of providing high-speed and low-cost Internet access. The VSOL EPON OLT is designed to meet those needs by providing 8*EPON ports, 8*GE(RJ45) ports, 4*1GE(SFP) ports, and 4*10GE(SFP+) ports. With a 1:64 splitter ratio, it supports up to 512 ONUs compliant with IEEE802.3ah.

SPECIFICATION

Why do we need it?

• In order for data to be processed at faster speeds, higher bandwidth is required. Fiber optic technology is the answer to this demand, and EPON is one of the most popular types of fiber optic Ethernet.

• A fiber optic Ethernet with a point-to-multipoint topology is known as EPON(Ethernet Passive Optical Network). This entails connecting multiple customer locations with one optical fiber. As compared to GPON, or Gigabit Passive Optical Network, EPON offers higher speeds, so it is better suited to high-bandwidth businesses.

How does it work?

OLT

An optical line terminal (OLT) manages fiber optic cables in a passive optical network (PON). In most cases, it can be found at the central office of the service provider. It manages communications between ONUs and optical network terminals (ONTs) located at the customer's premises.

What is EPON OLT?

EPON OLT stands for Ethernet Passive Optical Network. This is an optical fiber point-to-multipoint access network that connects a central office to multiple customer premises equipment (CPE) locations. With this device, you have access to increased bandwidth and enhanced security over older technologies.

VSOL-EPON OLT

VSOL EPON OLTs are a new generation of optical access equipment that supports 4/8/16 ports. The design is compact and flexible, making it easy to deploy and manage. As part of carrier-class security protection, it also supports RIP and SPF. Furthermore, the VSOL EPON OLT has an automatic uplink routing switch, so connecting the cloud EMS is straightforward.

The BS-EMS is a powerful unified network management system that enables users to manage their networks through a web browser. The advanced BS-EMS can deploy a cloud or private network. It includes data configuration, security management, user management, and so on. It features a comprehensive range of network management features and is easy to use. Additionally, the BS-EMS provides a rich set of diagnostic and troubleshooting tools.

Moreover, layer 3 OLTs provide dynamic routing protocols that can enhance network performance. It will also function at layer 2 as well as have its own protocol stack. Hence, it will be easier and more flexible to integrate into the future network.

Product Detail:

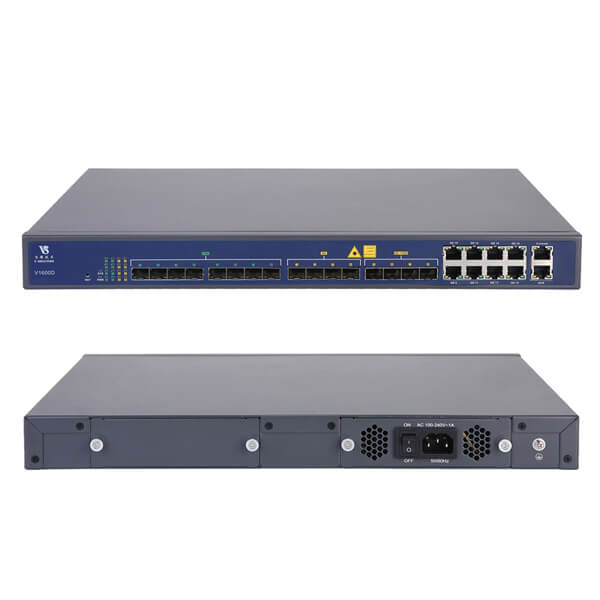

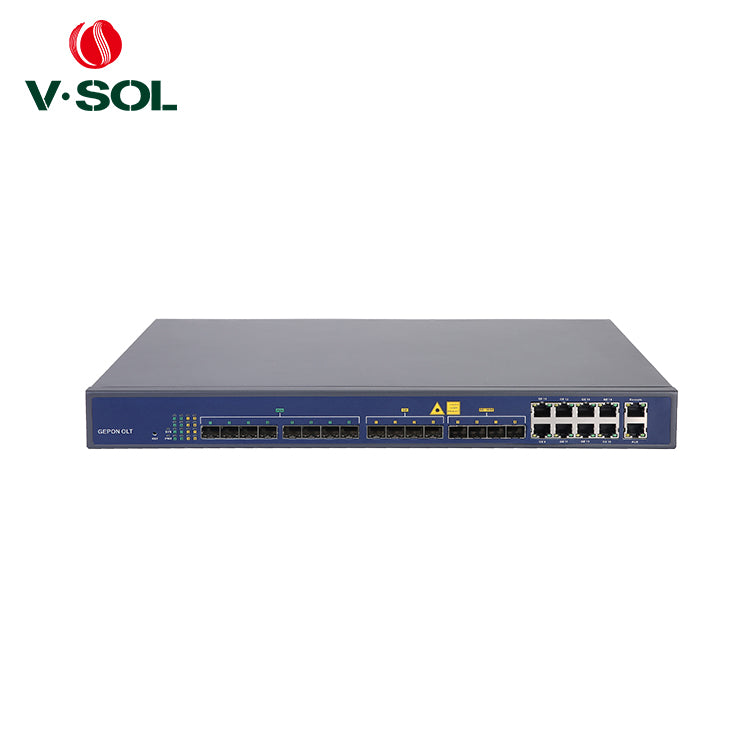

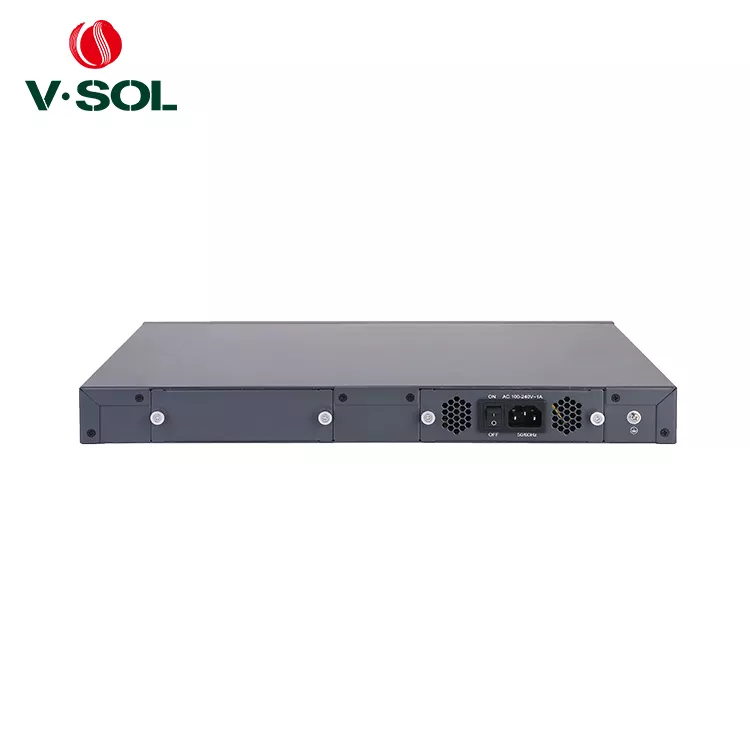

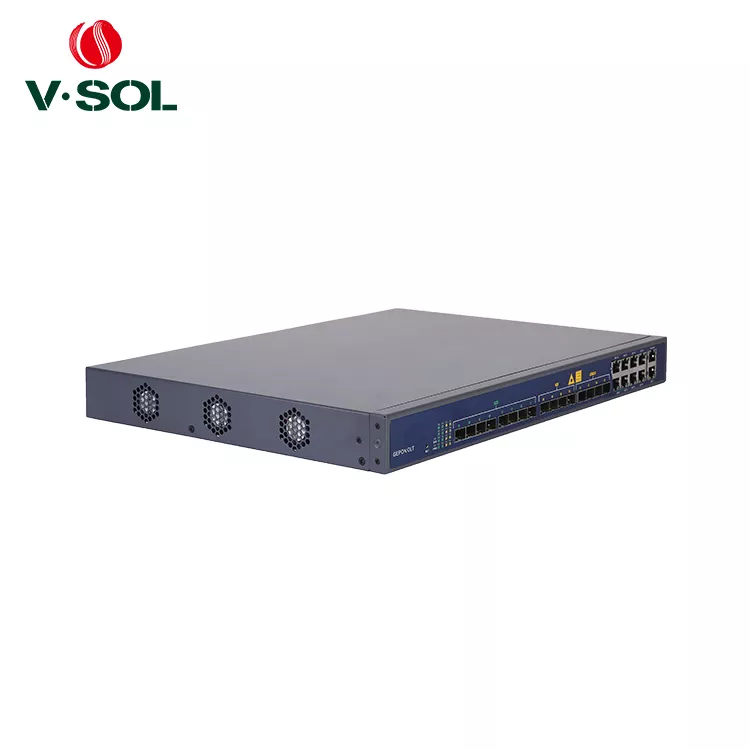

• The EPON OLT V1600D8 from V-SOL features a 19-inch rack mount height of 1U. Apart from being small, convenient, flexible, and easy to deploy, the OLT is also highly efficient. It is suitable for deployment in compact rooms.

• OLTs can be utilized for a variety of purposes, including "Triple-Play", VPN, IP camera, enterprise LAN, and Internet service provider use.
• The system features independent interfaces for uplink and downlink, including 8GE(copper) and 8 SFP slots. It is possible to support 64 ONUs per PON port, and 512 ONUs in total for PON ports.

• By using an ARP proxy, another host replies to ARP requests on behalf of other hosts. By answering these requests, the proxy prevents the requester from learning the true MAC address of the host.
• This  OLT supports up to 1024 hardware host routes. In OLTs, hardware host routes are coded into the switching ASIC's forwarding table.
• Static routes are manually configured by network administrators. Static routes are usually used in small networks without routing protocols or in situations with simple and static topologies.

• You will be able to support up to 512 hardware subnet routes with this. In the OLT's switching ASIC, hardware subnet routes are programmed into the forwarding table.
• In order to manage the forwarding table, RIPv1/v2 and OSPFv2/v3 are used. RIPv1/v2 is a distance vector routing protocol, while OSPFv2/v3 is a link-state routing protocol.
• The OLT also supports PPPoE/PPPoE+ for connecting to the Internet. PPPoE+ is an extension of PPPoE that supports Quality of Service, while PPPoE is a Point-to-Point Protocol over Ethernet.

Management Mode:

• SNMP: In today's networks, SNMP(Simple Network Management Protocol) is the most commonly used management protocol. It is used to manage and monitor network devices.

• Telnet: Telnet provides remote access to devices. It is commonly used to manage network devices.

• CLI: Command Line Interface is a text-based interface that is used to configure and manage network devices.

• WEB: Web-based management allows network administrators to manage devices via a graphical interface.

• SSH: It is a more secure protocol than telnet. A secure connection encrypts all data sent over it, making it harder for others to intercept and read it.

VSOL EPON OLT is a plug-and-play device that is easy to configure and provides line-speed forwarding. Whether you need a fast and reliable Ethernet connection for a small business or a medium business, this is a perfect choice.

Package includes:

• 1 * VSOL  EPON OLT
• 1* Ac power + 1* Dc Power
• 1* SFP Module
