Skyway gateway InfiniBand-to-Ethernet appliance designed for easy setup and management. It can be deployed on any InfiniBand topology and supports standard IP routing protocols. With Skyway, you can forward IP packets over InfiniBand (IPoIB) to Ethernet using eight ConnectX Virtual Protocol Interconnect (VPI) dual-port adapter cards.
Designed for high-performance gateways.
Connects InfiniBand and Ethernet networks seamlessly.
With 8 InfiniBand ports and 8 Ethernet ports, high-speed data transfer is ensured.
ConnectX-6 VPI adapters provide advanced network performance with dual-port HDR/200GbE ports.
2U server design maximizes space.
2 x AC power supplies are included for uninterrupted power.
Reduces complexity by bridging Ethernet and InfiniBand networks.
Data transfer at high speeds facilitates seamless communication.
Infiniband to Ethernet Gateway
Skyway MGA100 HS2
Dual Intel Xeon Scalable processors
MLNX-GW gateway OS
8 x HDR/HDR100/EDR ports, 200/100Gb/s Ethernet ports
Data Link Protocol
100 Gigabit InfiniBand, 200 Gigabit Ethernet
Availability, load balancing, and Ethernet link aggregation
Operating Temperature : 0ºC to 35ºC
Non-Operating Temperature : -20ºC to 60ºC
Operating: 10%-85% at 40ºC
Non-operating: 10%-95% at 40ºC
1+1 Redundant power supply
1000 W @ 100 ~ 127 V
2000 W @ 200 ~ 240 V
3.4 x 17.2 x 29.9 inch
Skyway GA100 is an InfiniBand-to-Ethernet gateway that lets Ethernet storage access InfiniBand datacenters, and vice versa. It supports 200Gb/s HDR connectivity today, and can scale to higher speeds with ConnectX's hardware-based forwarding and IP-routing protocols.
Skyway comes with eight ConnectX VPI dual-port cards that forward IP packets between InfiniBand and Ethernet.It can handle up to 1.6Tbps with 16 ports that can handle 100Gbps each. It is possible to connect the InfiniBand ports to the InfiniBand network via HDR/HDR100 or EDR; and the Ethernet ports using 200Gb/s and 100Gb/s Ethernet connections. Additionally, it includes the NVIDIA Gateway operating system (MLNX-GW), which manages both appliance hardware and high availability and load balancing between gateway appliances.
An operating system from NVIDIA, MLNX-GW, manages and configures InfiniBand-to-Ethernet gateways. It controls the CONNECTX adapters, as well as high availability and load balancing.MLNX-GW comes with full management options, including an industry-standard CLI so administrators can manage and configure the system easily.
By connecting multiple Skyway appliances in parallel, IT admins can adapt to growing user demand over time - achieving higher bandwidth connectivity. This gateway supports 1.6 terabits per second (Tb/s) of total throughput, using 16 ports that can handle 100 GB/s of traffic, giving it a total of 1.6 Terabits per second (Tb/s).
Managing InfiniBand networks
An InfiniBand subnet is assigned a single, centralized subnet manager (SM), which serves as a controller for the InfiniBand network using the concepts of software-defined networking (SDN). There is also the option of running the SM within the UFM (Unified Fabric Manager) as well. Using UFM platforms, Data Center operators can efficiently deploy, monitor, manage, and troubleshoot their InfiniBand data center fabric, allowing them to preventatively troubleshoot and maintain their InfiniBand data center fabric. To meet the broadest range of modern, scale-out data center requirements, UFM platforms offer multiple solution levels. It improves fabric utilization and gives a competitive advantage while reducing operating costs.
Manufacturers are responsible for warranties, which are based on purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.

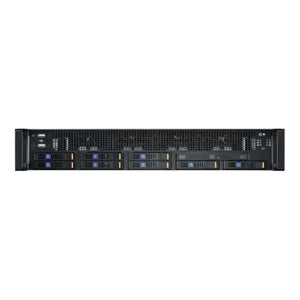

NVIDIA Skyway InfiniBand to Ethernet gateway appliance, 8x InfiniBand and 8x Ethernet ports, 2U server, 8x ConnectX-6 VPI dual-port HDR/200GbE adapters, 2 Power supplies (AC)
