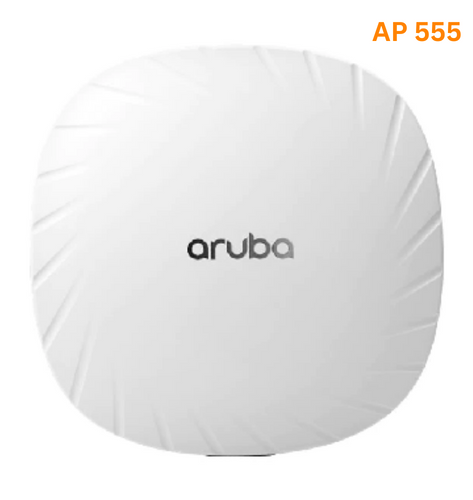

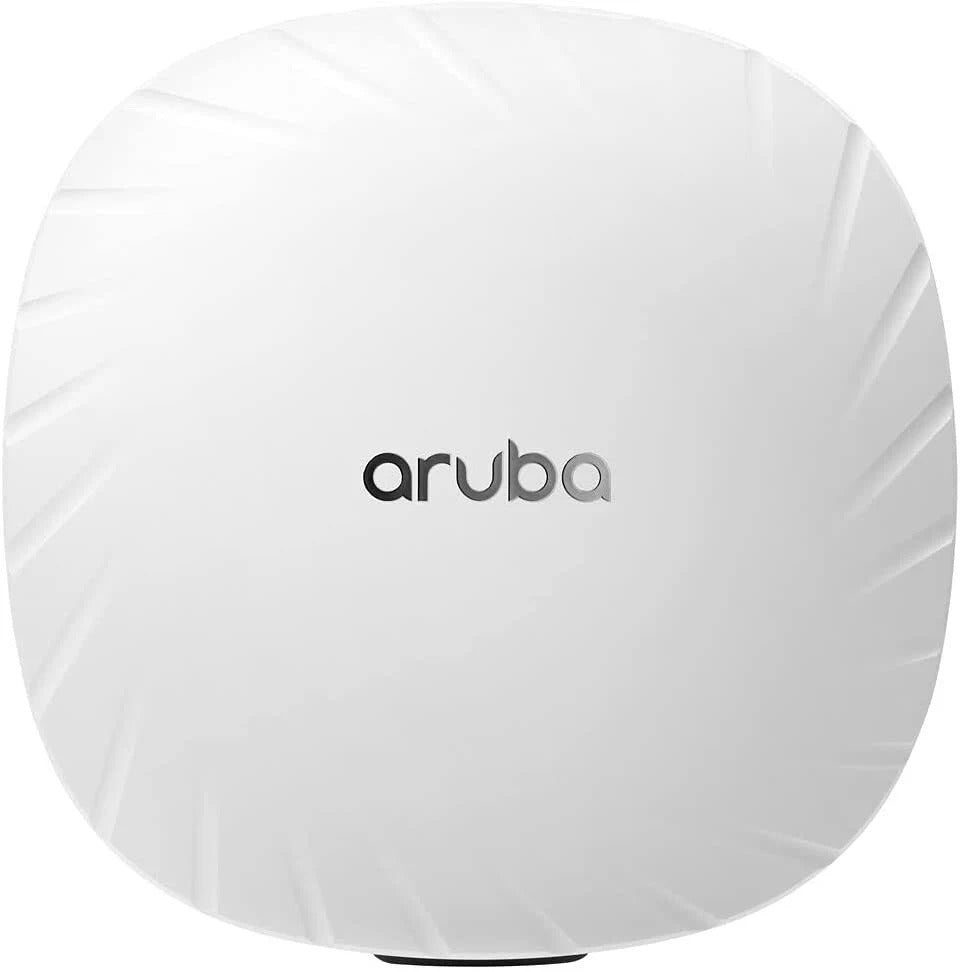

Aruba-WiFi Access Point-AP 555-Indoor-WPA3-MU MIMO-OFDMA-VPN Tunnel-Tri band-IOT Capabilities-Bluetooth-Zigbee

The 550 Series of APs provide wireless speeds up to 5.37 Gbps in long-range spaces that are extremely dense. It can be configured in dual or triple radio modes depending on the application.

SPECIFICATION:

KEYNOTE:

• Combine data rates up to 5.37Gbps
• Enabled with WPA3 protocol and Enhanced Open Security
• Built-in Wi-Fi 6/Wi-Fi 5 technology to resolve sticky client issues
• MU-MIMO and OFDMA for more efficient multiuser traffic
• Supports Bluetooth 5, NFC, and Zigbee for IoT
• Optional tri-band radio mode (4x4 MIMO) with two 5GHz and one 2.4GHz radio
• Embedded ranging system measures indoor location accurately

 PRODUCTIVITY OF 550:

• Maximizes Wi-Fi efficiency while reducing airtime contention between clients and optimizing user experience.
• Include OFDMA ( Orthogonal frequency-division multiple access ), multi-user MIMO with bi-directional, and cellular optimization.
• It features tri-radios, up to 4 spatial streams (4SS), and 160MHz channel bandwidth.

CONCURRENT CLIENTS PER CHANNEL

Prior Wi-Fi generations	1 at a time
Wi-Fi 6 in 20 MHz	Up to 9 at a time
Wi-Fi 6 in 40 MHz	Up to 18 at a time
Wi-Fi 6 in 80 MHz	Up to 37 at a time

PRODUCT FEATURES:

IOT  CAPABILITIES

Aps integrates Bluetooth 5 and 802.15.4 radio (for Zigbee support) in order to simplify the deployment and management of IoT-based location services, asset tracking services, security solutions, and IoT sensors.

Along with Zigbee and Bluetooth, it comes with TWT( Target Wake Time ) to improve client airtime contention with others and power saving.

Note: TWT sets communication schedules for clients

TRANSMIT POWER

BLE: Upto 8dBm transmission power and -99dBm receiving sensitivity 

Zigbee: Transmitting up to 8 dBm and receiving at -97 dBm

SECURE INFRASTRUCTURE:

Wireless traffic and authentication are protected by these infrastructures. The list of components included within this are

WPA3 & Enhanced Open: WPA3:- Latest version of WPA allows strong encryption & authentication to enterprise networks.Enhanced Open: Offers Seamless protection to open network and encrypted with each session to protect passwords & data.

WPA2-MPSK: Simpler passkey Management enables to change  wifi password or device type.

VPN Tunnels: A VPN concentrator establishes a secure IPSec/SSL VPN tunnel for mobility controllers during RAP and IAP-VPN deployments.

TPM (Trusted Platform Module): It is helpful for Secure storage of keys & credentials and boot code.



Note: Clearpass policy manager is required to access this feature.

FLEXIBILITY:

The APs can operate in two modes: instant mode (controlless) and controller mode (controller).

Instant Mode: Serves as a virtual controller for entire network.

Controller Mode ( Mobility Mode): The mobility controller manages traffic forwarding, segmentation, encryption, and policies for optimized network performance.

OTHER FEATURES

WiFi Antenna:

• Integrated Omnidirectional 4x4 MIMO antenna provides a peak gain of 4.3dBi in 2.4GHz, while an 8x8 MIMO peak gain provides  5.8dBi in 5 GHz.

• In tri-radio mode,  4x4 5GHz radios are 5.5dBi and 5.6dBi.

• Downtilt angle for antenna is roughly 30 degrees.



Combined Pattern:

• In Dual mode, the peak gain of average pattern is 2.4dBi in 2.4GHz and 2.0dBi in 5GHz

• In Tri-mode, average pattern for peak gain is 2.7dBi (radio 0L, lower half of 5GHz) and 1.8dBi (radio 0U, upper half of 5GHz)

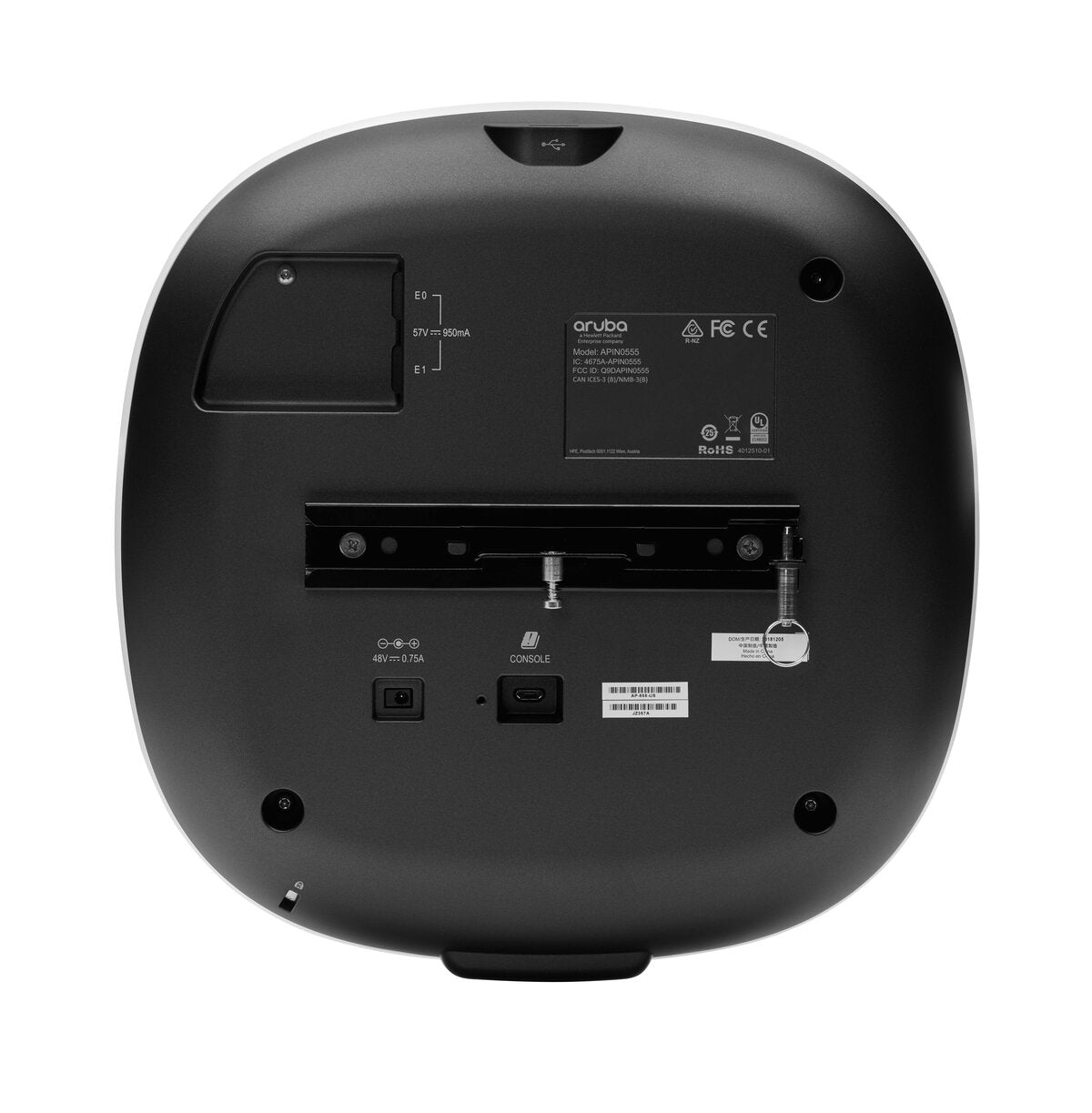

PORTS:

Ethernet Port (RJ45):

• Two HPE smart rate ethernet ports negotiate maximum speed up to  5 Gbps
• Auto-sensing speed link (100/1000/2500/5000 BASE-T) and MDI/MDX
•  Speeds of 2.5Gbps and 5Gbps comply with NBase-T and 802.3bz Specs

Reliability of Device: At operating temperature of +25°C, Mean Time Between Failure was 855,000 hours (~98 years).

External:-

Visual Indicator: It has two multi-color LEDs for device & radio status

Reset button: There is a factory reset or LED mode control

POWER SOURCES AND CONSUMPTION

• The power supply supports both  DC and POE. Priority is given to DC when both are available.
• When POE supplies power to both ethernet port then AP combines power source.
• It operates without restrictions when powered by DC or 802.3bt or 2x 802.3at (class 5) POE
• USB port will be disabled if it is powered by 1x 802.3 at (class 4) POE with IPM feature.

Device Requirement

Operating systems: ArubaOS

Software version: Aruba InstantOS 8.5.0.0 ( Some Restriction)

Note: Without restriction use 8.6.0.0 or later version.

Mechanical specifications:-

Without Mount brack:

Dimensions -260mm (W) x 260mm (D) x 61mm (H) 

Weight - 1,570g

With Mount brack:

Dimensions - 320mm (W) x 303mm (D) x 108mm (H)

Weight - 2,230g
