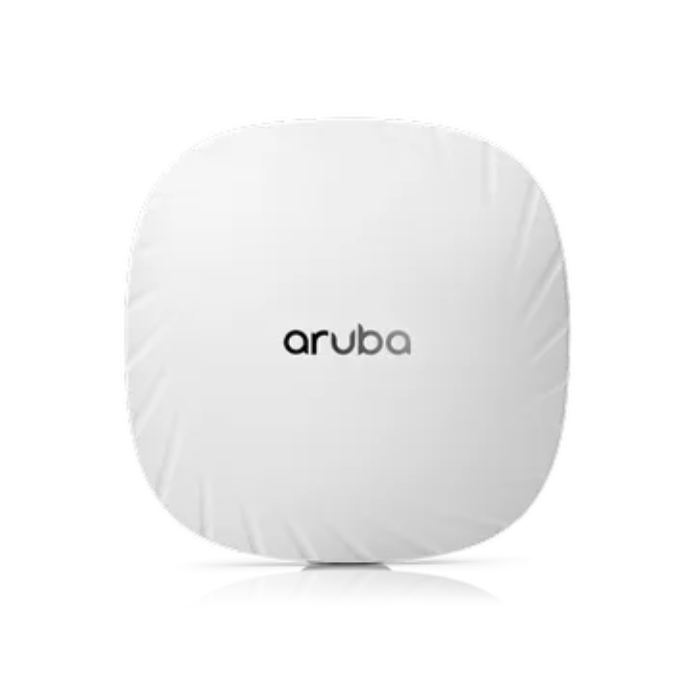

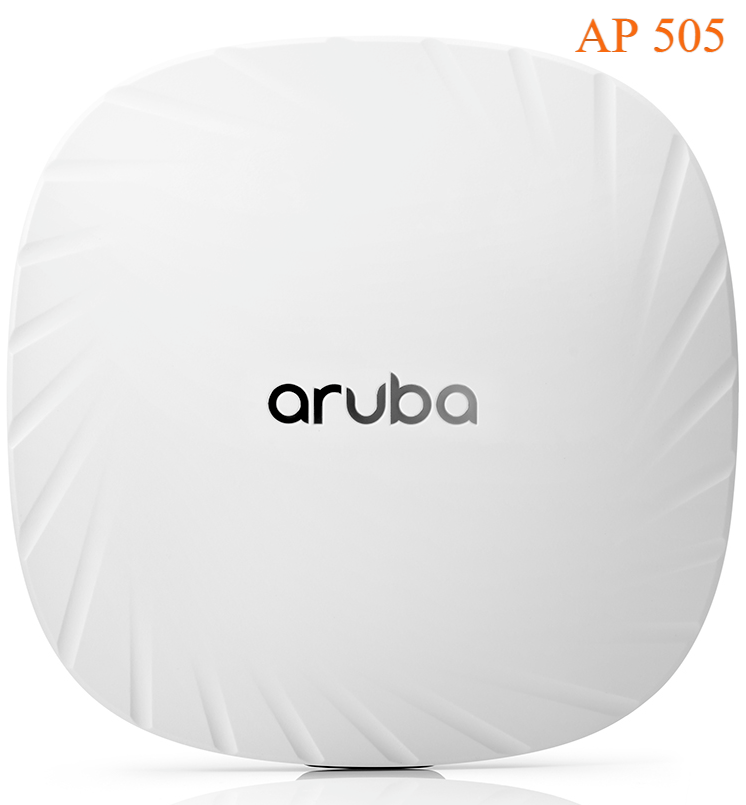

- Aruba Access Point-AP 505-Indoor-WPA3-MPSK-80mhz Bandwidth-WiFi 5 & 6-2x2 MU MIMO-OFDMA-VPN Tunnel-Dual band -IOT Capabilities-Bluetooth 5.0-Zigbee Aruba Access Point-AP 505-Indoor-WPA3-MPSK-80mhz Bandwidth-WiFi 5 & 6-2x2 MU MIMO-OFDMA-VPN Tunnel-Dual band -IOT Capabilities-Bluetooth 5.0-Zigbee










Aruba Access Point-AP 505-Indoor-WPA3-MPSK-80mhz Bandwidth-WiFi 5 & 6-2x2 MU MIMO-OFDMA-VPN Tunnel-Dual band -IOT Capabilities-Bluetooth 5.0-Zigbee
- Description
- Shipping & Returns
- Reviews
AP 505 provides high-performance connectivity for organizations struggling with growing IoT, and mobility requirements. With a maximum aggregate data rate of 1.49 Gbps, HE80/HE20 meets the needs of schools, midsize offices, and retailers.

KEY POINTS:
- Maximum real-world speed up to 1.49 Gbps (HE80/HE20)
- Enhanced open-source security with WPA3
- Integrated technology resolves sticky client issues on Wi-Fi 6 and 5
- OFDMA improves multiuser performance
- IoT support with Bluetooth 5 and Zigbee
SPECIFICATION:



PRODUCT FEATURES:
EFFICIENCY:
- Optimizes the user experience by reducing airtime contention.
- Includes OFDMA and cellular optimization.
- HE80 supports 80MHz channels, with up to two spatial streams (2SS).
Usage of OFDMA:
- Handle multiple Wi-Fi 6 devices simultaneously.
- Clients share channels instead of competing through smaller sub-carriers and resource units (RUs).

SECURITY:
WPA 3: Enhanced encryption and authentication are provided by latest version of WPA.
Enhanced open: Data and passwords of guest users will be automatically encrypted to protect.
MPSK ( WPA 2): Changes made to one device are reflected on all others.
VPN Tunnels: Establish a secure connection to VPN concentrator using SSL/IPSec VPN protocols.
IOT CAPABILITY:
Provides location services, asset tracking, security solutions, and IoT sensor deployment with Bluetooth 5 and 802.15.4 (for Zigbee support). With 500 Series, organizations can leverage IoT as a platform, reducing costs and IT resources.
WIFI FEATURES:

- Improve signal range and reliability with transmit beamforming
- Passpoint Wi-Fi 2.0 (Hotspot 2.0): Guests can carry over their cellular data to WiFi
- Optimize the use of RF spectrum with dynamic frequency selection
- Improved receiver performance with maximum ratio combination
- Improved downlink RF performance with cyclic delay/shift diversity
- Enhance range and reception with space-time block coding
- High-efficiency error correction method for low-density parity checking (LDPC)
OTHER INTERFACES:
Wifi Antenna:
- Dual-band downtilt omnidirectional antennas with peak gain of 4.9 dBi in 2.4GHz and 5.7 dBi in 5GHz for 2x2 MIMO.
- Downtilt angle of roughly 30 degrees provides maximum gain.
- Built-in antennas are optimized for horizontal ceiling mounts.
- When combining the patterns of each antenna, the peak gain at 2.4GHz and 5GHz is 4.3dBi and 5.6dBi respectively.


Side view of vertical planes (elevation planes with antennas rotated 0 and 90 degrees) (averaged patterns for all antennas)
Ethernet Port E0:
- Detect link speeds (10/100/1000BASE-T) & MDI/MDX automatically
- Ethernet Power Distribution (PD): 48Vdc (nominal), 802.3af/at (classes 3/4)
- IEEE 802.3az-based energy-efficient Ethernet
USB 2.0 (Type A): Provides up to 5W/1A.
Visual Indicator: Two multicolored LEDs indicate system and radio status.
Reset button: Factory reset, LED mode (normal/off)
Serial console: Physical port for Micro-B USB cable
Security slot: Kensington security
IOT POWER :
- BLE (5.0): up to 7dBm transmitter power (class 1), 93dBm receiver sensitivity (1Mbps).
- Zigbee (802.15.4): 6dBm transmit power, -96dBm receive power
- A vertically polarized omnidirectional antenna with an angle of downtilt at roughly 30 degrees and peak gain of 3.3 dB.
DEVICE POWER:
- Power over Ethernet and DC power support
- When both DC and POE power sources are present, DC power takes precedence
- When powered by DC or 802.3 at (class 4) POE, function without restrictions.
- USB port disabled when system powered by 802.3af (class 3) POE.
- In the same configuration with IPM enabled, restrictions are dynamically applied according to POE budget. Order and restrictions are programmed.
- NOTE: No power sources are included
EOL: At a temperature of +25°C, the service life is 1.3 million hours (148 years).
DEVICE REQUIREMENT
Operating systems: ArubaOS
Software version: Aruba InstantOS 8.6.0.0

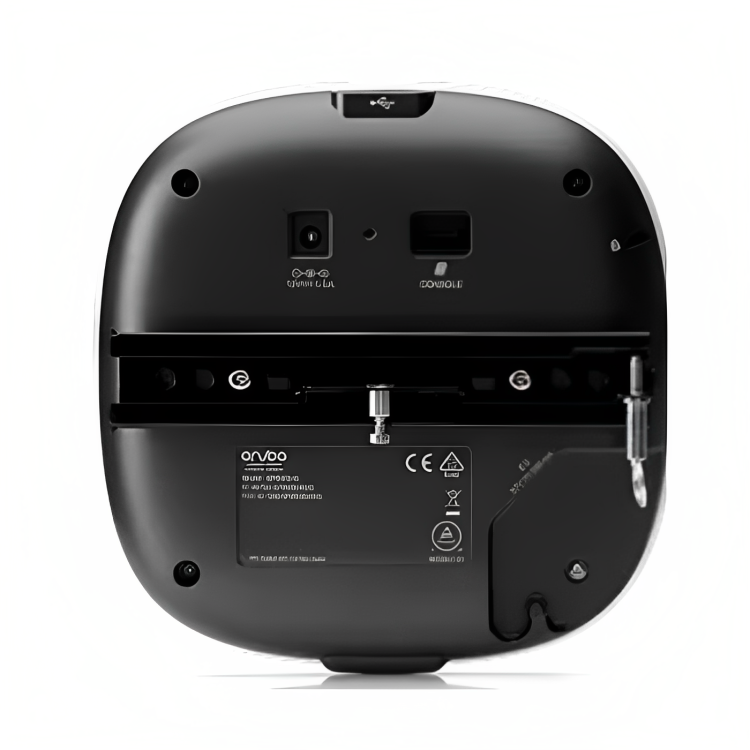

NOTE: A pre-installed mounting bracket secures AP to any mounting kit (sold separately).
MECHANICAL SPECIFICATIONS:-
Without Mount brack:
Dimensions - 160mm (W) x 161mm (D) x 37mm (H)
Weight - 500g
With Mount brack:
Dimensions - 193mm (W) x 183mm (D) x 63mm (H)
Weight - 645g
