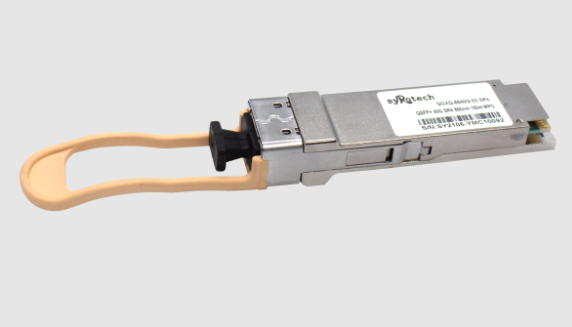

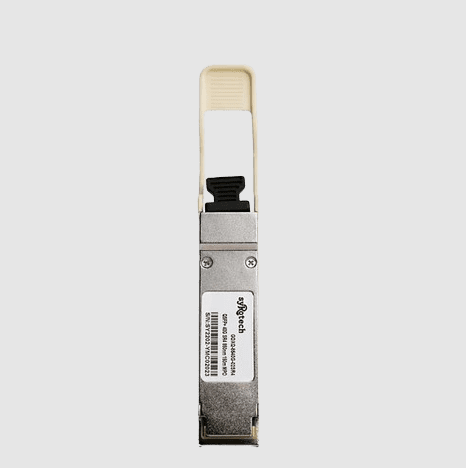

Syrotech GOXQ-8540G-02-SR4 40G QSFP+ SR4, 4×10G, MPO-12, 850 nm, OM3/OM4, Low Power Transceiver

Syrotech GOXQ-8540G-02-SR4 is a 40-Gigabit QSFP+ SR4 optical transceiver designed for short-range, high-speed data communication over multimode fiber. It uses four parallel channels, each operating up to 10.5 Gbps, providing a combined 40 Gbps bidirectional bandwidth. This transceiver is ideal for 40G Ethernet applications, datacenter interconnects, switches, routers, and high-performance computing. It features a 38-pin edge type electrical connector and a 12-fiber MPO/MTP optical connector. Syrotech’s VCSEL technology ensures reliable long life, consistent performance, and efficient operation in dense, high-speed network environments.

KEY FEATURES:

• Channels: 4 full-duplex parallel lanes
• Data Rate: 10.3-10.5 Gbps per lane (up to 12.5 Gbps maximum)
• Total Bandwidth: 40 Gbps
• Optical Technology: 850 nm VCSEL laser and PIN photodiode array
• Form Factor: Hot-pluggable QSFP+
• Power Consumption: <1.5 W
• Maximum Link Length: 100 m on OM3 / 150 m on OM4 multimode fiber
• Connector: Single 12-fiber MPO/MTP
• Monitoring: Built-in digital diagnostic functions (DDM)
• Operating Case Temperature: 0°C to +70°C
• Compliance: RoHS-6 lead-free

TECHNICAL SPECIFICATION:

APPLICATIONS:

• 40GBASE-SR4 Ethernet short-range links


• Datacenter switch-to-switch connections


• Telecom and datacom aggregation networks


• High-density cabling systems


• Infiniband SDR, DDR, and QDR transmissions


• Backplane and proprietary high-speed links


• Enterprise and HPC network interconnects

ADVANCED FEATURES:

High-Bandwidth Parallel Optical Design :

The GOXQ-8540G-02-SR4 provides full 40 Gbps throughput using 4 × 10 Gbps parallel lanes. This parallel architecture ensures simultaneous high-speed transmission and reception across all channels, minimizing latency and maintaining reliable short-range connectivity over OM3 and OM4 multimode fibers. It optimizes fiber usage, reduces congestion, and supports dense cabling environments. The module is ideal for high-density server-to-switch links, top-of-rack deployments, and critical datacenter interconnects.

Integrated Clock and Data Recovery (CDR) :

Internal CDR circuits on both transmitter and receiver channels preserve signal integrity, reduce jitter, and maintain consistent, error-free data transmission even in high-density network environments. This guarantees reliable performance for mission-critical applications, including HPC clusters, virtualization, storage replication, and cloud computing workloads. The CDR technology also helps maintain low bit error rates under heavy network traffic.

Digital Diagnostic Monitoring (DDM) :

Built-in DDM provides real-time monitoring of module temperature, supply voltage, laser bias, TX/RX optical power, and overall module health. This allows proactive network management, early fault detection, and minimal downtime, ensuring stable operation in high-performance short-range links. The feature is compliant with the SFF-8436 standard, giving detailed insight for data center monitoring and maintenance.

Hot-Pluggable QSFP+ Form Factor :

The compact QSFP+ module supports hot-swapping, enabling installation, replacement, or upgrades without disrupting ongoing network operations. This simplifies maintenance, accelerates provisioning, and reduces network downtime. The form factor is fully compatible with standard QSFP+ cages, making it suitable for multi-vendor environments and flexible datacenter layouts.

Low Power Consumption and Thermal Efficiency :

Consuming less than 1.5 W, the module produces minimal heat while maintaining stable optical performance across all channels. Its energy-efficient design improves thermal management in high-density switch chassis and server NICs, enhancing reliability and service life. Reduced heat generation also lowers cooling requirements and operational costs in large-scale deployments.

High-Density Network Compatibility :

Designed for 40G Ethernet leaf-spine and aggregation network architectures, this module supports seamless integration with major switches and NICs, providing reliable, scalable, and high-performance interconnects. It is ideal for enterprise, datacenter, and HPC networks requiring robust, low-latency, short-reach links. The module ensures consistent performance in multi-vendor and multi-application environments.
