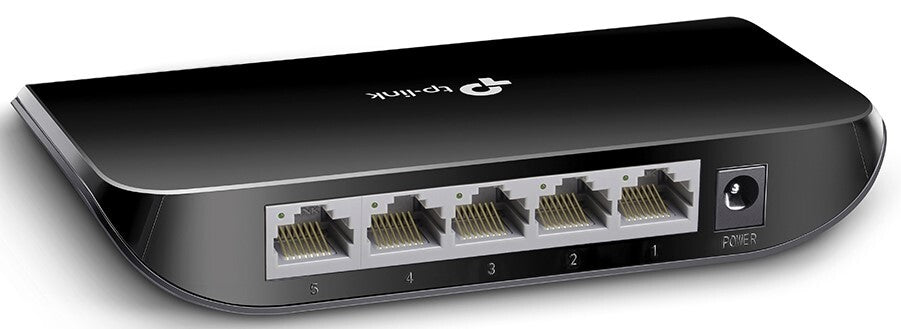

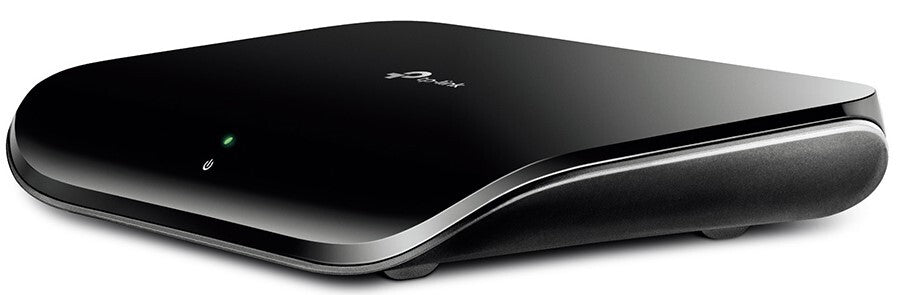

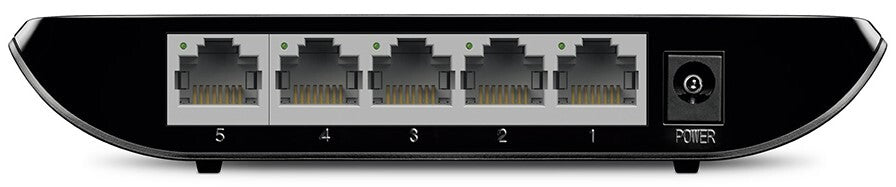

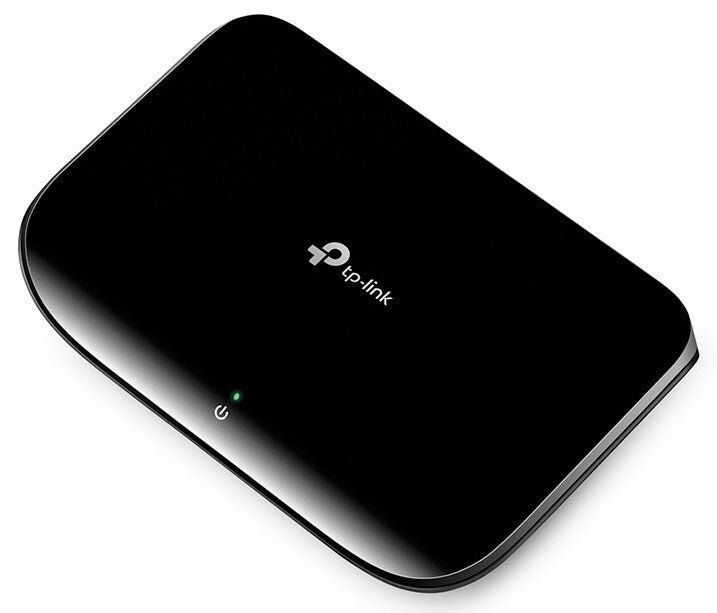

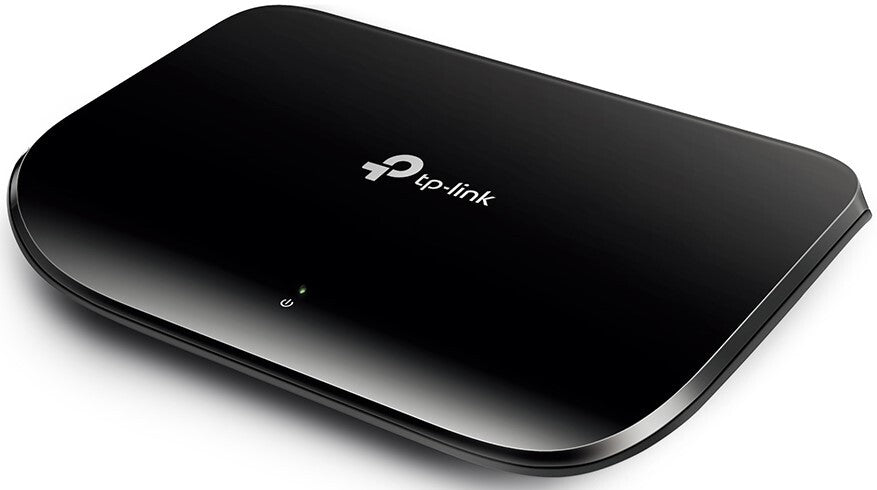

TP-Link TL-SG1005D – 5‑Port Gigabit Unmanaged Desktop Switch with Plug and Play Setup and Energy Saving Design

TP‑Link TL-SG1005D is a compact 5‑Port Gigabit unmanaged desktop switch built for users requiring fast, silent, and energy-efficient wired connectivity with zero configuration. Perfect for small businesses, home offices, media setups, and network expansion, the TL-SG1005D offers 5 × auto‑negotiating Gigabit ports delivering up to 1000 Mbps per port. Its plug‑and‑play design eliminates setup hassle. The fanless casing enables whisper‑quiet operation, while Green Ethernet technology adjusts power consumption dynamically based on cable length and link status. Designed with a compact footprint and durable plastic housing, it can be desktop‑placed or wall‑mounted for optimal space utilisation.

KEY FEATURES:

• 5 × 10/100/1000 Mbps RJ45 ports with Auto‑Negotiation and Auto MDI/MDIX
• Switching capacity: 10 Gbps; Forwarding rate: 7.44 Mpps
• Fanless, silent operation—ideal for noise‑sensitive spaces
• Plug‑and‑play—no configuration or software needed
• Green Ethernet (IEEE 802.3az) for reduced power draw
• Store‑and‑forward switching guarantees reliable packet delivery
• Compact, durable plastic housing with desktop or wall‑mount options
• IEEE 802.3x flow control (full duplex) and backpressure (half duplex)


TECHNICAL SPECIFICATIONS:

HARDWARE:

PERFORMANCE:

SECURITY:

MANAGEMENT:

PHYSICAL AND ENVIRONMENTAL:

ADVANCED FEATURES:

Compact Design, Maximum Utility

 Expand limited LAN ports on routers, mesh systems, or cable modems without compromising performance. Rather than rely on Wi-Fi adapters for static devices like NAS, printers, or smart TVs, the TL-SG1005D delivers stable gigabit Ethernet via a small, discreet footprint (99.8×98×25 mm) that can sit on a desk or be wall-mounted behind equipment.

Energy‑Efficient Networking

IEEE 802.3az compliance enables automatic power adjustment based on device activity and cable length—shorter cables and idle ports draw less power. Benefits include reduced heat, longer hardware lifespan, and energy savings without sacrificing data throughput.

Reliable and Maintenance‑Free

The store-and-forward switching protocol checks for packet integrity before transmission, minimizing errant or corrupt data forwarding. As an unmanaged device, it requires no software, reducing complexity and eliminating misconfiguration risks.

Wide Compatibility

Works seamlessly with:

• Wi-Fi routers and mesh systems (Wi-Fi 5/6/6E)
• PoE injectors/splitters (for IP cameras, phones)
• Smart TVs, gaming consoles, IPTV boxes, and printers
• NAS and media servers
• Ethernet access points and VoIP endpoints



Supports both full-duplex and half-duplex communications for backwards compatibility with legacy 10/100 Mbps devices.

Seamless Network Expansion

The TL-SG1005D behaves like an extension of your existing network—no IP changes or DHCP configuration needed. It’s ideal for:

• Segmenting networks for security or organisation
• Providing wired backhaul for mesh nodes
• Adding more LAN ports to routers with limited connectivity



USE CASES:

• Home Networking: High-speed streaming, online gaming, wired NAS access, media servers.
• Small Office Expansion: Add wired devices easily without IT staff or managed hardware.
• Security / Surveillance: Ideal for connecting multiple PoE-based IP cameras using PoE injectors/splitters.
• Media & Content Creation: Silent operation suits audio/video production, editing suites, or digital workspaces.



ORDERING INFORMATION:

WARRANTY & SUPPORT:

Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.

All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
