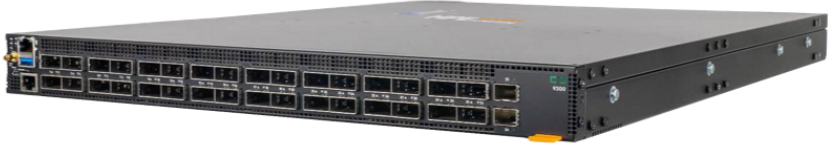

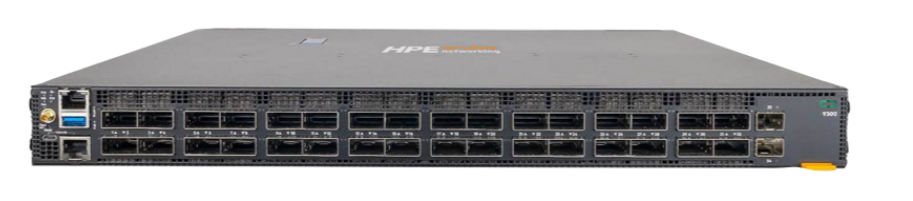

Aruba CX 9300-32D – 32-Port 100/200/400G QSFP-DD 1U High-Density Data Center Switch

Aruba CX 9300-32D is a high-density, 1U rack-mountable switch engineered for modern data centers, cloud environments, and large-scale enterprise core networks that demand massive throughput, low latency, and advanced automation. Equipped with 32 × 100/200/400G QSFP-DD ports and 2 × 10G SFP+ ports, the switch delivers an impressive 25.6 Tbps switching capacity and a forwarding rate of 8,571 Mpps, making it ideal for bandwidth-intensive workloads such as AI/ML clusters, high-performance computing, and hyperscale storage.

Running on the ArubaOS-CX operating system, the CX 9300-32D provides real-time visibility, programmability, and network-wide automation through REST APIs, Python scripting, and telemetry. Its design ensures maximum resilience with dual hot-swappable power supplies, field-replaceable fan trays, and flexible airflow options (front-to-back or back-to-front), supporting deployment in diverse data center cooling architectures. With advanced support for EVPN-VXLAN, QoS, and end-to-end security, the Aruba CX 9300-32D is purpose-built to deliver a future-ready networking foundation for digital transformation.

KEY FEATURES:

• Total Ports: 32 × 100/200/400G QSFP-DD + 2 × 10G SFP+
• Switching Capacity: 25.6 Tbps
• Forwarding Rate: 8,571 Mpps
• CPU: Intel D-1537 1.7 GHz multi-core x86 processor
• RAM: 132 GB DDR4 (2 × 16 GB SODIMM)
• Storage / Flash:128 GB M.2 SSD + 4 GB mSATA + 16 MB SPI Flash
• Packet Buffer: 132 MB shared
• MAC Address Table: 81,920 entries
• IPv4 / IPv6 Routes: 65,536 / 32,768
• VLAN Support: Up to 4,000 VLANs
• Latency: ~1 µs (typical)
• Resiliency: Dual hot-swappable power supplies and field-replaceable fans
• Airflow: Front-to-back (R9A29A) / Back-to-front (R9A30A)
• Form Factor: 1U rack-mountable
• Advanced Features: ArubaOS-CX automation, EVPN-VXLAN, telemetry & analytics, REST APIs, Python scripting, ZTP, QoS, and MACsec AES-256

TECHNICAL SPECIFICATIONS:

HARDWARE:

PERFORMANCE:

SECURITY:

MANAGEMENT:

PHYSICAL & ENVIRONMENTAL:

ADVANCED FEATURES:

High-Density 100/200/400GbE Connectivity:

The Aruba CX 9300-32D offers 32 ports supporting 100G, 200G, or 400G speeds, with a total switching capacity of 25.6 Tbps. This high-density configuration is ideal for modern data centers and cloud environments requiring scalable and high-throughput connectivity. Each 400G port can be configured as 4x100G, 2x200G, or 1x400G, providing flexibility to adapt to varying network requirements. Additionally, 100G ports can be broken out into four 25G links, accommodating diverse server and storage configurations. This versatility ensures seamless integration with existing infrastructure and future scalability. The switch's high port density reduces the need for additional hardware, optimizing rack space and simplifying network design.

Advanced Layer 3 Routing Capabilities:

Supports advanced Layer 3 features including OSPF, BGP, VXLAN, and Virtual Switching Extension (VSX), enabling efficient and scalable routing in complex network topologies. The switch can handle up to 1.24 million IPv4 routes, supporting full Internet routing and ensuring robust performance in large-scale deployments. This capability is crucial for service providers and large enterprises requiring extensive routing tables and high-performance forwarding. The integration of VXLAN support facilitates the creation of scalable and flexible network overlays, enhancing the agility of data center operations. VSX support allows for resilient and scalable network architectures, ensuring high availability and load balancing across multiple switches.

Comprehensive Telemetry and Monitoring:

Equipped with 2x 1/10G SFP+ ports dedicated to telemetry, the switch provides real-time monitoring and analytics for proactive network management. This feature enables the collection of granular performance data, aiding in the identification of potential issues before they impact network performance. The integration with Aruba Central allows for centralized management and visualization of telemetry data, streamlining network operations. Advanced analytics capabilities support predictive maintenance, reducing downtime and enhancing the reliability of network services. The Network Analytics Engine (NAE) processes telemetry data locally, enabling faster decision-making and reducing dependency on centralized systems.

Robust Resiliency Features:

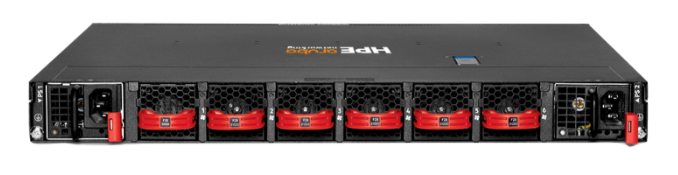

Designed for mission-critical environments, the CX 9300-32D includes dual hot-swappable AC/DC power supplies, six modular fans, and supports both front-to-back and back-to-front airflow configurations, ensuring continuous operation and reliability. These features contribute to the switch's high availability, minimizing the risk of service interruptions due to hardware failures. The modular design allows for easy maintenance and upgrades, reducing operational complexity. Additionally, the switch's compact 1U form factor optimizes space utilization in data centers, accommodating high-density deployments. The inclusion of redundant management modules ensures uninterrupted control and monitoring, even during component failures.

Optimized Power Efficiency:

The switch incorporates dynamic power management to optimize energy consumption, particularly when operating at lower input voltages, ensuring efficient power usage across all ports. This energy efficiency contributes to reduced operational costs and supports sustainability initiatives by lowering the carbon footprint of data center operations. The intelligent power distribution system ensures that power is allocated efficiently to meet the demands of connected devices, enhancing overall system performance. Compliance with industry standards for energy efficiency underscores the switch's commitment to sustainable networking solutions. The power supply units are designed for high efficiency, reducing heat generation and enhancing the overall reliability of the system.

Seamless Integration with Aruba Central:

The CX 9300-32D integrates with Aruba Central for centralized cloud-based management, providing simplified operations, automated provisioning, and enhanced visibility across the network. This integration streamlines network management tasks, reducing the complexity associated with manual configurations. Aruba Central's analytics and reporting tools offer insights into network performance and health, facilitating informed decision-making. The platform's scalability ensures that it can accommodate the growing needs of large and dynamic network environments. Role-based access control (RBAC) enhances security by restricting access to network resources based on user roles.

Investment Protection for Future Growth:

Designed to support large data center pods of up to 6,000 x 25G servers or up to 2,000 x 100G servers, the CX 9300-32D ensures scalability to meet future networking demands. This scalability allows organisations to expand their network infrastructure without the need for significant hardware overhauls. The switch's support for emerging technologies, such as AI/ML-driven applications and high-frequency trading, positions it as a future-proof solution for evolving business requirements. Its robust feature set and performance capabilities provide a solid foundation for long-term investment in network infrastructure. The modular design facilitates easy upgrades and expansions, protecting the initial investment.

ORDERING INFORMATION:

WARRANTY & SUPPORT:

Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.

All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
