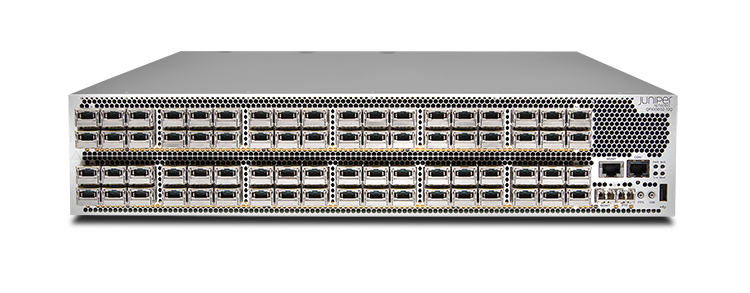

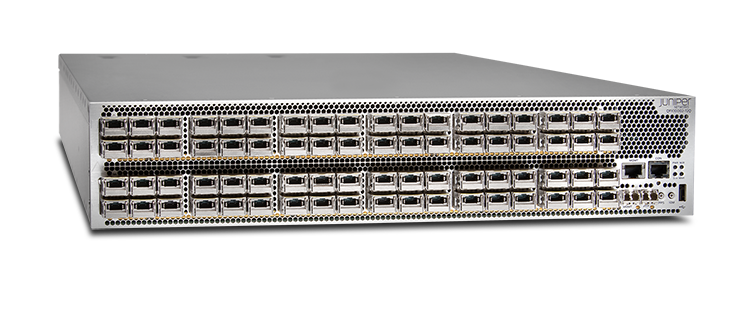

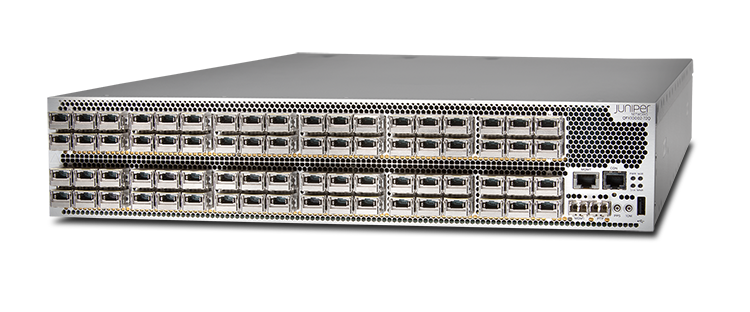

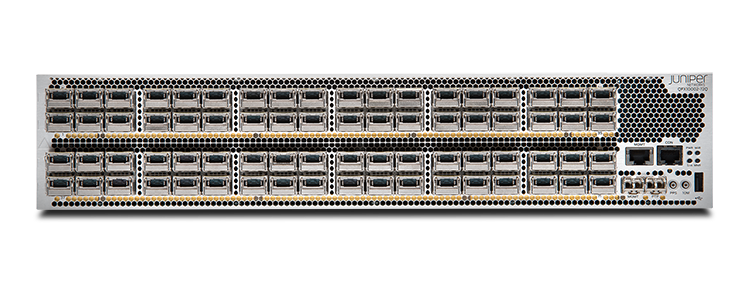

Juniper QFX10002-72Q - 72 × 40GbE QSFP+ / 24 × 100GbE QSFP28, 2U Data Centre Spine/Core Switch

Juniper QFX10002-72Q is a high-density data centre switch designed for large-scale spine and core network deployments. It features 72 × 40GbE QSFP+ or 24 × 100GbE QSFP28 ports, offering flexible connectivity options for demanding environments. With four redundant 1600W AC/DC power supplies and three fan trays, it delivers reliable high availability and efficient cooling. Built on the Juniper Q5 ASIC, the switch ensures low-latency, high-throughput performance suitable for cloud, enterprise, and service provider networks.

The QFX10002-72Q supports advanced network protocols including EVPN-VXLAN, MPLS, and segment routing, enabling scalable multi-tenant fabrics and efficient traffic engineering. Automation and programmability are fully supported via Apstra, Ansible, Terraform, and Python scripts, streamlining network operations. Security features such as MACsec AES-256 encryption, role-based access control, and 802.1X authentication protect sensitive workloads, making this Juniper network switch a robust, future-ready choice for modern data centres.

KEY FEATURES:

• Total Ports: 72 × 40GbE QSFP+ ports or 24 × 100GbE QSFP28 ports.
• Port Flexibility: Breakout to 288 × 10GbE SFP+
• Switching Capacity: 5.76 Tbps (terabits per second)
• Forwarding Rate: 2 billion packets per second (2 Bpps)
• CPU: Intel Quad Core Ivy Bridge 2.5 GHz
• System Memory: 16 GB SDRAM
• Onboard Storage: 2 x 25 GB internal SSDs
• Packet Buffer: 24 GB Hybrid Memory Cube (HMC)
• MAC Address Table: Up to 512,000 MAC addresses; max 96,000 learned per Packet Forwarding Engine (PFE)
• VLAN Support: Up to 4,000 VLANs.
• Jumbo Frames: Supports frames up to 9,216 bytes.
• Latency: 2.5 μs within PFE

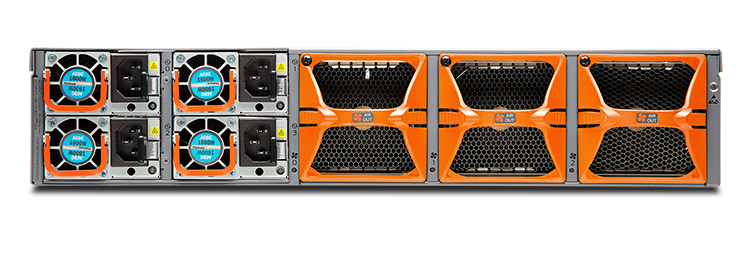

• High Availability: Four redundant hot-swappable 1600W AC/DC power supplies, three hot-swappable fan trays
• Airflow Options: Front-to-back (AFO)
• Advanced Features: EVPN-VXLAN, MPLS, Segment Routing, MACsec AES-256 encryption, automation, and real-time telemetry.

TECHNICAL SPECIFICATIONS:

HARDWARE:

PERFORMANCE:

SECURITY:

MANAGEMENT:

PHYSICAL AND ENVIRONMENTAL:

ADVANCED FEATURES:

EVPN-VXLAN Overlay Support:

The QFX10002-72Q fully supports EVPN-VXLAN overlays, allowing scalable and flexible Layer 2 and Layer 3 connectivity across modern data centers. This capability enables seamless multi-tenancy, providing logical network isolation for multiple customers or applications on the same physical infrastructure. It simplifies workload mobility across locations and supports dynamic scaling of virtualized environments. With integration into Juniper’s automation and telemetry systems, network operators gain end-to-end visibility and simplified operations, making it ideal for hybrid cloud and hyperscale deployments.

MPLS and Segment Routing:

MPLS and Segment Routing support on the QFX10002-72Q provides advanced traffic engineering capabilities, enabling predictable path selection, optimal bandwidth utilization, and reduced latency across the network. These features are essential for large-scale multi-tenant fabrics and high-performance spine-core architectures. Segment Routing also allows for simplified network design, deterministic forwarding, and improved failover times in case of network changes, supporting both enterprise and service provider requirements.

MACsec AES-256 Encryption:

Hardware-based MACsec AES-256 encryption ensures data confidentiality, integrity, and compliance for sensitive workloads. The QFX10002-72Q secures all data-plane traffic across the network, protecting against man-in-the-middle attacks and unauthorized access. This level of encryption is particularly critical for regulated industries and large-scale data centers handling sensitive information. Combined with role-based access control and 802.1X authentication, it provides a complete security framework.

High-Performance Architecture:

Powered by Juniper’s custom Q5 ASIC, the QFX10002-72Q delivers ultra-low latency, high throughput, and consistent performance even under extreme network loads. It is capable of supporting AI/ML workloads, big data analytics, high-frequency trading, and other latency-sensitive applications. The architecture allows for large-scale spine and core deployments, ensuring deterministic performance and minimal jitter. Its design also provides flexible breakout options for evolving network demands.

Automation and Programmability:

The QFX10002-72Q is fully programmable and supports automation frameworks including Ansible, Puppet, Chef, Terraform, and Python scripting. Network teams can implement rapid provisioning, consistent policy enforcement, and automated workflows across large data centers. Integration with Juniper Apstra allows intent-based networking and large-scale fabric orchestration, reducing operational overhead and human error. This programmability ensures the network can adapt quickly to changing business or application requirements.

Telemetry and Real-Time Analytics:

Integrated Junos Telemetry Interface (JTI) provides real-time visibility into the network, allowing proactive monitoring of performance, capacity, and potential faults. Operators can analyze historical and streaming telemetry data to optimize traffic patterns, perform predictive maintenance, and plan capacity expansion. Real-time analytics also support SLA compliance, ensuring high-quality service delivery for critical applications.

High Availability and Resiliency:

Designed for mission-critical deployments, the QFX10002-72Q features redundant AC/DC power supplies, multiple fan trays, and advanced system-level resiliency mechanisms such as Nonstop Routing (NSR) and Graceful Restart (GR). These features ensure continuous operation during maintenance or hardware failures. Combined with hot-swappable components and intelligent failover, the switch minimizes downtime and maintains service continuity for enterprise and cloud environments.

Advanced Layer 2/3 Networking:

The QFX10002-72Q supports a broad range of Layer 2 and Layer 3 protocols including BGP, OSPF, IS-IS, VRRP, and link aggregation (LAG). It enables complex network topologies, deterministic routing, and optimized traffic management for large-scale enterprise and service provider deployments. The switch also supports jumbo frames, QoS policies, and large MAC address tables to ensure high-performance, low-latency networking.

Carrier-Class Reliability:

With enterprise-grade hardware and Junos OS reliability, the QFX10002-72Q delivers carrier-class performance, ensuring minimal jitter, high throughput, and predictable operations under heavy workloads. Its design emphasizes energy efficiency, thermal management, and long-term operational stability, reducing overall data center operational costs.

Cloud-Optimised for Hybrid Environments:

The QFX10002-72Q is optimized for hybrid cloud deployments, supporting seamless integration between private and public clouds. Features like EVPN-VXLAN, automated provisioning, and real-time telemetry allow enterprises to scale networks efficiently while maintaining high availability and performance. It supports multi-tenant fabrics, workload mobility, and dynamic scaling to meet modern cloud and AI/ML demands.

Security and Compliance:

In addition to MACsec encryption, the QFX10002-72Q provides a comprehensive security framework including role-based access control (RBAC), 802.1X authentication, and TACACS+/RADIUS integration. These capabilities ensure compliance with industry regulations while protecting multi-tenant environments from unauthorized access. Automated security policy enforcement further strengthens protection in large-scale deployments.

Competitive Edge and Future-Readiness:

Offering high port density and performance in a compact 2U form factor, the QFX10002-72Q provides a compelling alternative to traditional chassis-based platforms. Its support for emerging networking standards, automation, and hybrid cloud readiness ensures future-proof investment, enabling enterprises and service providers to adapt to evolving network demands without frequent hardware upgrades.

ORDERING INFORMATION:

WARRANTY & SUPPORT:

Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.

All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
