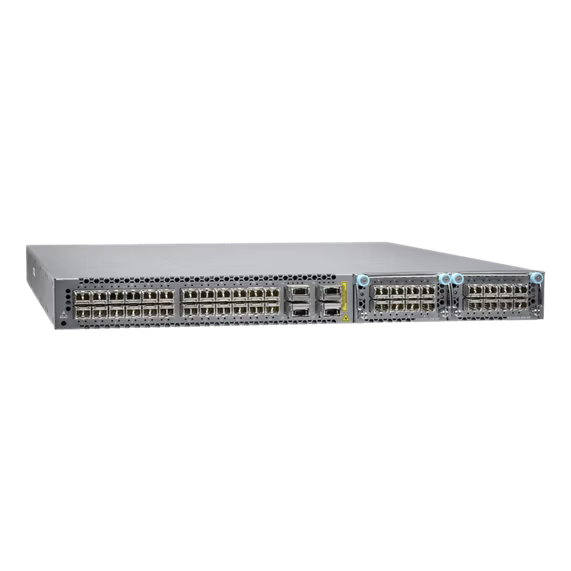

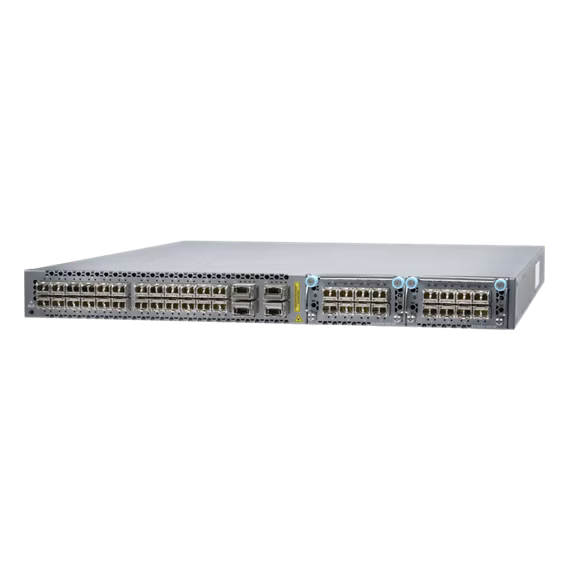

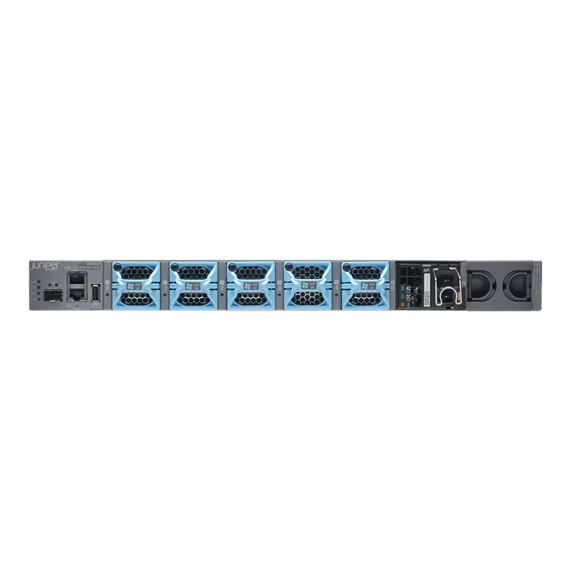

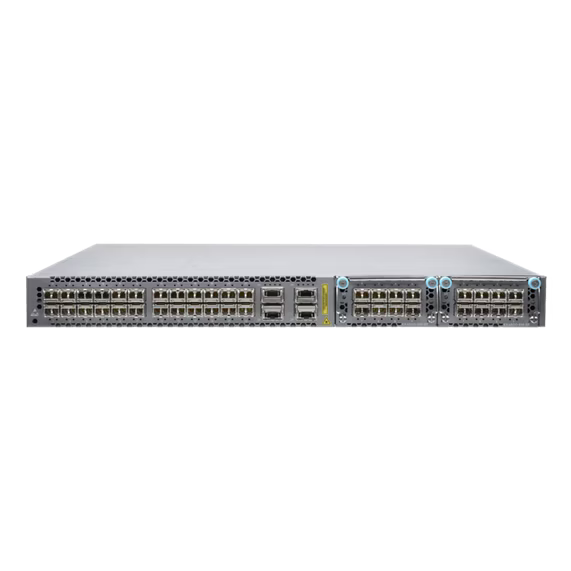

Juniper EX4600-40F - 24× 1/10GbE SFP+/SFP, 4× 40GbE QSFP+ Uplinks, 2 Expansion Slots, non-PoE, Redundant AC/DC Power, AFO/AFI Cooling, 1U Design

Juniper EX4600-40F is a high-performance, compact 1U switch designed for enterprise distribution and data centre top-of-rack deployments. It offers 24 SFP+/SFP ports and 4 QSFP+ uplinks, with support for Virtual Chassis to simplify scaling. Equipped with redundant hot-swappable power supplies, flexible airflow (AFO/AFI), and advanced L2/L3 features, the EX4600 delivers reliable, low-latency, and scalable connectivity.

It runs on Junos OS and integrates with the Juniper Mist Cloud for centralised management and automation. With a high switching capacity, support for MACsec encryption, and automation-ready features, the EX4600 is ideal for secure, modern enterprise networks. Its flexibility makes it equally suited for campus cores, data centre aggregation, and cloud-ready environments.

KEY FEATURES:

• Total Ports: 24 × 1/10GbE SFP+/SFP access ports
• Uplink Ports: 4 × 40GbE QSFP+ ports, 2 expansion slots
• Switching Capacity: 720 Gbps (unidirectional)/1.44 Tbps (bidirectional)
• Forwarding Rate: 1,071 Mpps
• CPU: Quad-core Intel x86 processor
• Packet Buffer: 12 MB shared
• MAC Address Table: 288,000 entries
• VLAN Support: Up to 4,091 VLANs
• Latency: ~550 ns (typical)
• Resiliency: Dual redundant, hot-swappable AC or DC power supplies, redundant fan trays
• Airflow: Front-to-back (AFO) or back-to-front (AFI)
• Form Factor: 1U rack-mountable
• Advanced Features: Virtual Chassis, Virtual Chassis Fabric (VCF), EVPN-VXLAN, MACsec AES-256 encryption, Junos OS with Juniper Mist Cloud integration

TECHNICAL SPECIFICATION:

HARDWARE:

PERFORMANCE:

SECURITY:

MANAGEMENT:

PHYSICAL AND ENVIRONMENTAL:

ADVANCED FEATURES:

Juniper EX4600-40F combines performance, resiliency, and intelligent automation to meet the evolving needs of enterprise and data centre networks. Its advanced capabilities are designed to deliver flexibility, scalability, and secure operations.

Virtual Chassis and Virtual Chassis Fabric (VCF):

Up to 10 EX4600 switches can be interconnected and managed as a single logical device, simplifying network operations while reducing management overhead. With VCF support, the EX4600 integrates seamlessly into modern spine–leaf architectures, delivering high resiliency and streamlined scalability in large enterprise or cloud data centres.

EVPN-VXLAN for Seamless Fabric Extension:

The EX4600 supports Ethernet VPN (EVPN) and VXLAN technologies, enabling efficient Layer 2/Layer 3 overlay networks. This extends services across geographically distributed locations, improves multi-tenancy support, and allows smooth integration of campus and data centre environments.

Line-Rate MACsec Security:

Built-in support for IEEE 802.1AE MACsec AES-256 encryption secures data in transit without impacting performance. This ensures line-rate protection for sensitive applications across access ports and uplinks, making the EX4600 ideal for environments where data privacy and regulatory compliance are critical.

Automation and Cloud-Driven Management:

Powered by Junos OS, the EX4600 offers advanced programmability and automation features. It supports Zero Touch Provisioning (ZTP), NETCONF, REST APIs, and Python scripting for efficient, error-free configuration and management. Integration with the Juniper Mist Cloud adds AI-driven analytics, proactive monitoring, and simplified operations across distributed campuses and data centres.

High Availability and Carrier-Class Resiliency:

Redundant, hot-swappable AC/DC power supplies and fan trays ensure uninterrupted service. Flexible airflow options (front-to-back and back-to-front) adapt to diverse cooling requirements, while nonstop bridging and routing enhance service continuity.

Optimised for Demanding Applications:

Featuring a high switching capacity (1.44 Tbps) and forwarding rate of 1,080 Mpps, combined with ultra-low latency (~550 ns), the EX4600 is optimised for storage, cloud, and real-time workloads. Deep buffering further enhances application performance, ensuring smooth handling of bursty traffic.

Future-Ready Network Services:

With advanced Layer 2 and Layer 3 features, MC-LAG, scalable routing tables, and robust QoS capabilities, the EX4600 delivers the agility and reliability required for next-generation enterprise networks and hybrid cloud environments.

ORDERING INFORMATION:

WARRANTY & SUPPORT:

Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.

All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
