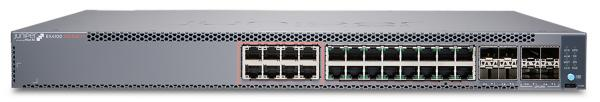

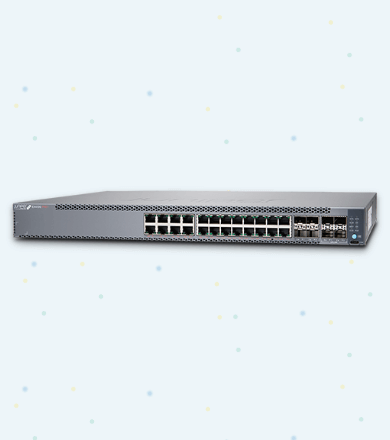

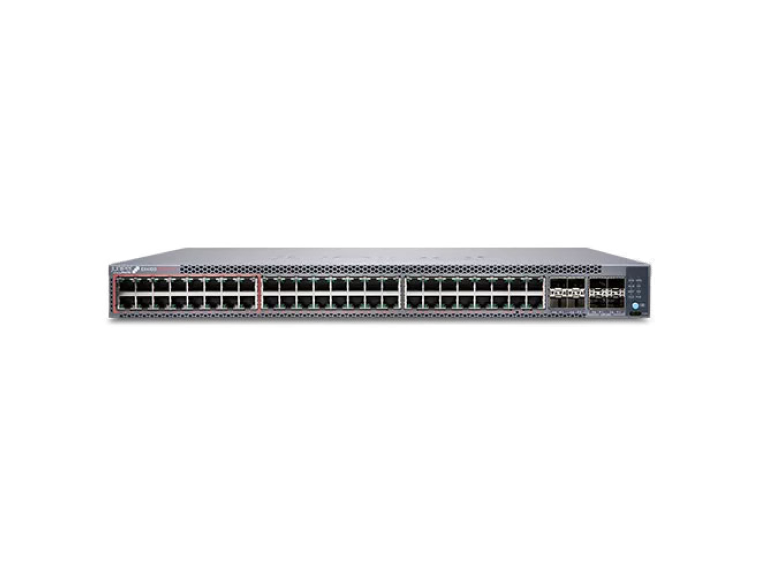

Juniper EX4100-24MP/48MP-24/48× Multigigabit RJ45 PoE/PoE++ Enterprise Ethernet Switch, 4×10GbE + 4×25GbE Uplinks, 1U Rack-Mountable

Juniper Networks EX4100-24MP and EX4100-48MP are enterprise-grade multigigabit Ethernet switches designed to deliver high performance, reliability, and advanced PoE/PoE++ capabilities for modern campus and branch deployments. These fixed-configuration switches support advanced Layer 2 and Layer 3 features, enabling seamless integration into scalable network architectures.

Built on Juniper’s AI-driven enterprise portfolio, the EX4100-MP series simplifies operations, centralises management, and enhances security, making it ideal for organisations supporting wireless access points, VoIP, and IoT devices. With high-capacity uplinks, zero-touch provisioning, and multigigabit support, the EX4100-24MP and EX4100-48MP empower enterprises to build resilient, future-ready networks that adapt to evolving business needs.

KEY FEATURES - JUNIPER EX4100-24MP / 48MP

• Total Ports:
  • EX4100-24MP: 24 × multigigabit RJ45 + 8 × 1/10GbE uplink capable
  • EX4100-48MP: 48 × multigigabit RJ45 + 16 × 1/10GbE uplink capable
• Uplink Ports: 4 × 10GbE SFP+ + 4 × 25GbE SFP28
• PoE/PoE++ Support: Provides up to 740W (24MP) and up to 1620W (48MP) PoE budget for connected devices
• Switching Capacity:  236 Gbps / 472 Gbps (24MP) & 212 Gbps / 424 Gbps (48MP)
• Forwarding Rate: 351 Mpps (24MP) / 315 Mpps (48MP)
• Packet Buffer: 8 MB shared
• MAC Address Table: 64,000 entries
• VLAN Support: Up to 4,000 VLANs
• Latency: ~2.5 µs (typical)
• Resiliency: Redundant hot-swappable power supplies and fans

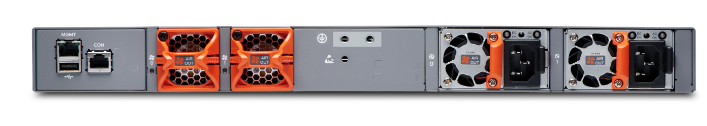

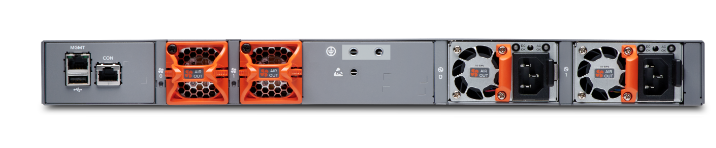

• Airflow: Front-to-back (AFO)
• Form Factor: 1U rack-mountable
• Advanced PoE/PoE++: Supports high-powered devices, including wireless APs, cameras, and IP phones

TECHNICAL SPECIFICATION:

HARDWARE:

PERFORMANCE:

SECURITY:

MANAGEMENT

PHYSICAL AND ENVIRONMENTAL

ADVANCED FEATURES – EX4100-24MP / EX4100-48MP

EVPN-VXLAN for Scalable Network Overlays:

The EX4100-MP series supports EVPN-VXLAN, enabling enterprises to create highly scalable Layer 2 and Layer 3 virtual overlays across multiple locations. This allows seamless interconnection of campuses, branch offices, and data centers while maintaining consistent network policies. Multitenancy is supported, allowing isolated virtual networks on shared infrastructure, which is essential for secure cloud adoption and hybrid networking environments. EVPN-VXLAN also simplifies segmentation for different departments, tenants, or application groups, and facilitates dynamic workload mobility without reconfiguring physical hardware.

Virtual Chassis Technology:

Up to ten EX4100-MP switches can operate as a single logical device, reducing management complexity and consolidating configuration and monitoring. Virtual Chassis enhances resiliency with automatic failover, allows coordinated software upgrades across all members, and supports seamless scaling of port capacity without adding administrative overhead. This technology improves network uptime, operational efficiency, and simplifies large campus deployment management.

AI-Driven Insights and Automation:

Integration with Juniper Mist AI provides predictive analytics, proactive detection of network issues, automated root-cause analysis, and intelligent recommendations to prevent downtime. Zero-touch provisioning (ZTP) enables rapid deployment, while automated troubleshooting reduces manual intervention and accelerates issue resolution. These AI-driven capabilities allow IT teams to maintain a high-performance, self-optimizing network with minimal operational effort.

Dynamic Telemetry and Real-Time Monitoring:

Advanced telemetry using sFlow and IPFIX provides granular visibility into network traffic, application performance, and bandwidth utilization. Administrators can monitor uplink and access ports in real time, detect congestion points, track trends, and take proactive measures to optimize performance. This also aids in capacity planning, compliance reporting, and ensuring consistent user experience across the enterprise network.

Advanced Quality of Service (QoS):

Granular QoS mechanisms prioritize critical traffic, ensuring reliable performance for latency-sensitive applications like VoIP, video conferencing, and business-critical services. Multiple queues per port, traffic shaping, and policing prevent congestion, while dynamic adaptation to traffic patterns ensures optimal bandwidth allocation under varying network loads.

High Availability and Redundancy:

Designed for continuous operation, EX4100-MP supports link aggregation, multichassis LAG (MC-LAG), hot-swappable redundant AC/DC power supplies, and N+1 field-replaceable fans. Combined with Virtual Chassis configurations, this ensures seamless failover between member switches, minimizing downtime and maintaining service continuity.

Energy Efficiency and Smart Power Management:

Features such as Energy Efficient Ethernet (EEE) reduce power usage during low network activity, and intelligent PoE/PoE++ allocation optimizes power delivery to connected devices like wireless APs, IP phones, and IoT endpoints. This lowers operational costs and reduces environmental impact without compromising performance.

Comprehensive Security:

Security is implemented throughout the EX4100-MP architecture, including MACsec encryption, 802.1X port-based authentication, and secure management protocols like SSH, RADIUS, TACACS+, and SNMPv3. Additional protections include DHCP snooping, Dynamic ARP Inspection (DAI), IP Source Guard, ACLs, and storm control, defending against internal and external threats while enforcing granular traffic policies.

Scalable Cloud Integration:

Integration with Juniper Mist Cloud allows centralized management, AI-driven monitoring, and policy enforcement across multiple sites. Predictive maintenance, capacity planning, and proactive troubleshooting are simplified, helping IT teams scale networks efficiently while maintaining high reliability and performance.
