- Aruba CX6100-12G/24G 12/24-Port SFP+ PoE+, L2/L3, Cloud-Managed switch Aruba CX6100-12G/24G 12/24-Port SFP+ PoE+, L2/L3, Cloud-Managed switch












Aruba CX6100-12G/24G 12/24-Port SFP+ PoE+, L2/L3, Cloud-Managed switch
- Description
- Shipping & Returns
- Reviews
Aruba CX6100 Switches 12G-2G/24G-4G are entry-level, enterprise-class access switches designed to deliver simple, secure, and reliable connectivity for small businesses, branch offices, and edge deployments. Featuring 12 × Gigabit RJ-45 ports with 2 × SFP uplinks (CX6100-12G-2G) and 24 × Gigabit RJ-45 ports with 4 × SFP uplinks (CX6100-24G-4G), these fanless switches provide silent operation, making them ideal for environments such as classrooms, retail stores, or office workspaces.
Built on the AOS-CX operating system, the CX6100 series brings consistency, automation, and advanced security to the access layer. With cloud-based management via Aruba Central, zero-touch provisioning, and robust QoS, the CX6100-12G-2G and CX6100-24G-4G offer long-term investment protection, operational simplicity, and reliable edge connectivity for modern enterprises.

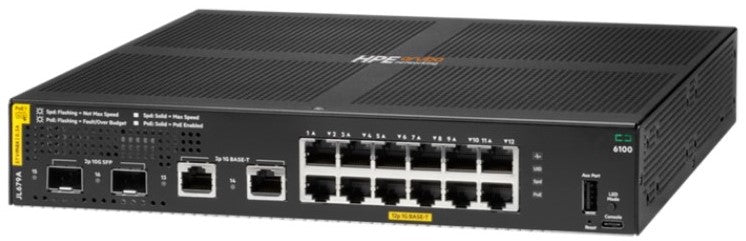

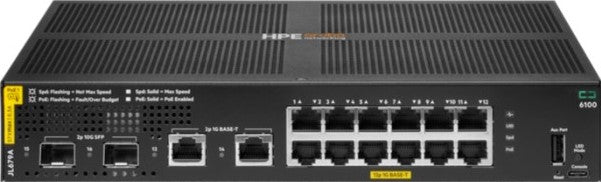

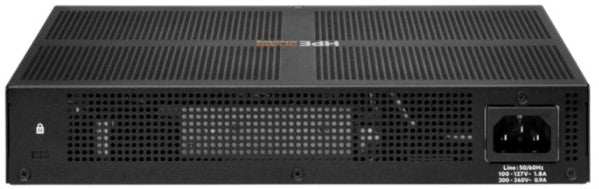

CX6100-12G (JL679A)

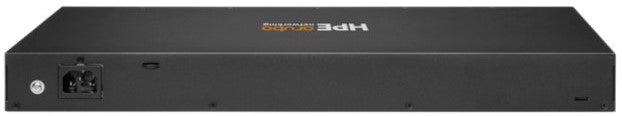

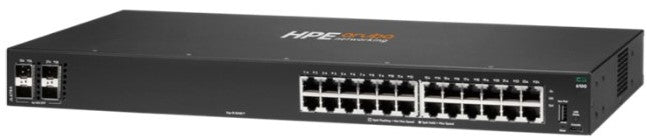

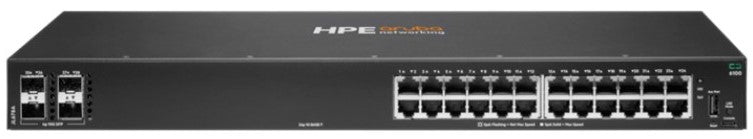

CX6100-24G (JL678A)
KEY FEATURES:
- Total Ports: 12 × 10/100/1000BASE-T + 2 × 1G/10G SFP+ (CX6100-12G-2G) / 24 × 10/100/1000BASE-T + 4 × 1G/10G SFP+ (CX6100-24G-4G)
- PoE Support: Up to 139W Class 4 PoE/PoE+ (CX6100-12G-2G) / Up to 370W Class 4 PoE/PoE+ (CX6100-24G-4G)
- Switching Capacity: 68 Gbps
- Forwarding Rate: 45.1 Mpps
- CPU: Dual-core ARM Cortex A9 @ 1.016 GHz
- System Memory: 4 GB DDR3 SDRAM
- Onboard Storage: 16 GB eMMC
- Packet Buffer: Shared dynamic buffer (internal memory)
- MAC Address Table: Up to 16,000 entries
- VLAN Support: Up to 4,096 VLANs
- Jumbo Frames: Supports frames up to 9,216 bytes
- Latency: 1 Gbps: 2.3 µs, 10 Gbps: 2.6 µs
- High Availability: Fixed internal power supply with redundant fan cooling
- Airflow Options: Front-to-back cooling
- Advanced Features: Layer 2/3 switching, QoS, EVPN-VXLAN support, MACsec AES-256 encryption, automation (AOS-CX), and streaming telemetry
TECHNICAL SPECIFICATIONS:
SPECIFICATION |
CX6100-12G (JL679A) |
CX6100-24G (JL678A) |
Ports |
12 × 10/100/1000BASE-T, 2 × 1G/10G SFP+, 2 × 1000BASE-T |
24 × 10/100/1000BASE-T, 4 × 1G/10G SFP+ |
PoE Power |
Up to 139W Class 4 PoE/PoE+ |
Up to 370W Class 4 PoE/PoE+ |
Processor |
ARM Cortex A9 @ 1.016 GHz |
ARM Cortex A9 @ 1.016 GHz |
Memory |
4 GB DDR3 SDRAM |
4 GB DDR3 SDRAM |
Flash Storage |
16 GB eMMC |
16 GB eMMC |
Switching Capacity |
68 Gbps |
68 Gbps |
Forwarding Rate |
45.1 Mpps |
45.1 Mpps |
Latency |
1 Gbps: 2.3 µs, 10 Gbps: 2.6 µs |
1 Gbps: 2.3 µs, 10 Gbps: 2.6 µs |
Management Ports |
1 × USB-C, 1 × USB Type-A |
1 × USB-C, 1 × USB Type-A |
Power Supply |
Fixed internal |
Fixed internal |
Input Voltage |
100–127 VAC / 200–240 VAC |
100–127 VAC / 200–240 VAC |
Cooling |
Fanless |
Fixed fans |
Dimensions (H×W×D) |
4.39 cm × 25.4 cm × 25.5 cm |
4.39 cm × 44.2 cm × 20.12 cm |
Weight |
2.78 kg |
2.62 kg |
PERFORMANCE:
SPECIFICATION |
DETAILS |
Switching Capacity |
Up to 56 Gbps (CX6100-12G-2G) / 68 Gbps (CX6100-24G-4G) |
Forwarding Rate |
Up to 41.6 Mpps (CX6100-12G-2G) / 50.9 Mpps (CX6100-24G-4G) |
Latency |
<3 µs (64-byte packets) |
QoS Support |
Prioritization for real-time apps (voice, video, data) |
Energy Efficiency |
IEEE 802.3az compliant |
SECURITY:
SPECIFICATION |
DETAILS |
Authentication |
802.1X, MAC authentication, captive portal |
Access Control |
ACLs, role-based access control (RBAC) |
Encryption |
Secure management via SSH, HTTPS |
Monitoring |
RADIUS, TACACS+, sFlow integration |
MANAGEMENT:
SPECIFICATION |
DETAILS |
Network OS |
Aruba AOS-CX |
Automation |
Zero-Touch Provisioning (ZTP), REST APIs, Ansible support |
Monitoring |
Aruba Central cloud-based management |
Telemetry |
Streaming telemetry with analytics |
Protocol Support |
STP, RSTP, MSTP, LLDP, LACP, IPv4/IPv6 management |
PHYSICAL AND ENVIRONMENTAL:
SPECIFICATION |
DETAILS |
Dimensions (12G-2G) |
1.73 × 8.27 × 10.43 in (4.4 × 21 × 26.5 cm) |
Dimensions (24G-4G) |
1.73 × 17.42 × 9.06 in (4.4 × 44.3 × 23 cm) |
Weight |
2.0 kg (12G-2G) / 3.8 kg (24G-4G) |
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
Relative Humidity |
5% to 95% non-condensing |
Noise Level |
Fanless (0 dB) |
Compliance |
CE, FCC, VCCI, UL, RoHS |
ADVANCED FEATURES:
Layer 2 Switching with Future-Ready Design:
The Aruba CX6100-12G-2G and CX6100-24G-4G deliver robust Layer 2 connectivity, supporting essential features like VLAN segmentation, link aggregation (LACP), and jumbo frames. These capabilities ensure reliable and high-performance network traffic handling for edge deployments. Designed with a future-ready architecture, the switches seamlessly integrate into larger networks, providing flexibility for enterprise growth and multi-site connectivity.
Simplified Network Management:
Powered by Aruba AOS-CX, these switches offer centralized cloud management via Aruba Central, enabling real-time monitoring, configuration, and automation. Zero-touch provisioning, automated configuration consistency, and REST API programmability reduce operational complexity, allowing IT teams to enforce consistent policies efficiently across distributed networks without manual intervention.
Enhanced Security Controls:
The CX6100 series enforces strict security through 802.1X network access authentication, role-based access control (RBAC), ACLs, RADIUS, and TACACS+. Secure management protocols like HTTPS and SSH encrypt all administrative communications, while integrated monitoring and alerting tools protect against unauthorized access and ensure data integrity.
High Availability & Reliability:
These switches feature a fanless design for silent operation and minimal mechanical failure risks. Redundant power options and resilient hardware ensure continuous uptime, making the CX6100-12G-2G and CX6100-24G-4G suitable for mission-critical edge and branch deployments where network continuity is essential.
QoS and Traffic Prioritization:
Advanced Quality of Service (QoS) mechanisms prioritize latency-sensitive traffic such as VoIP, video conferencing, and real-time collaboration. This ensures consistent application performance even under high network load, enabling smooth communication and minimal packet loss.
Energy-Efficient Operation:
Compliant with IEEE 802.3az Energy Efficient Ethernet, the CX6100 series optimizes power consumption based on traffic patterns. This reduces operational costs, supports eco-friendly IT strategies, and contributes to sustainable enterprise operations.
Investment Protection and Scalability:
Featuring multiple uplink options and a non-blocking architecture, the CX6100 series provides high scalability for growing networks. Enterprises can expand their deployments without disrupting operations, ensuring long-term investment protection and smooth integration with existing Aruba infrastructure.
ORDERING INFORMATION:
PART NUMBER/SKU |
DESCRIPTION |
CX6100-12G (JL679A) |
Aruba CX6100-12G-2G Switch – 12 × 1G RJ-45 + 2 × 1G SFP uplinks, fanless, internal PSU |
CX6100-24G (JL678A) |
Aruba CX6100-24G-4G Switch – 24 × 1G RJ-45 + 4 × 1G SFP uplinks, fanless, internal PSU |
WARRANTY & SUPPORT:
Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.
All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
