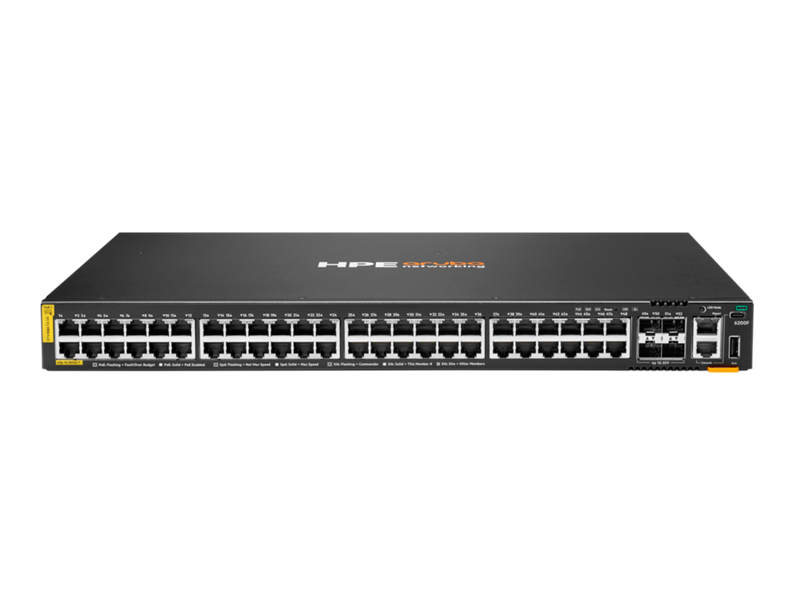

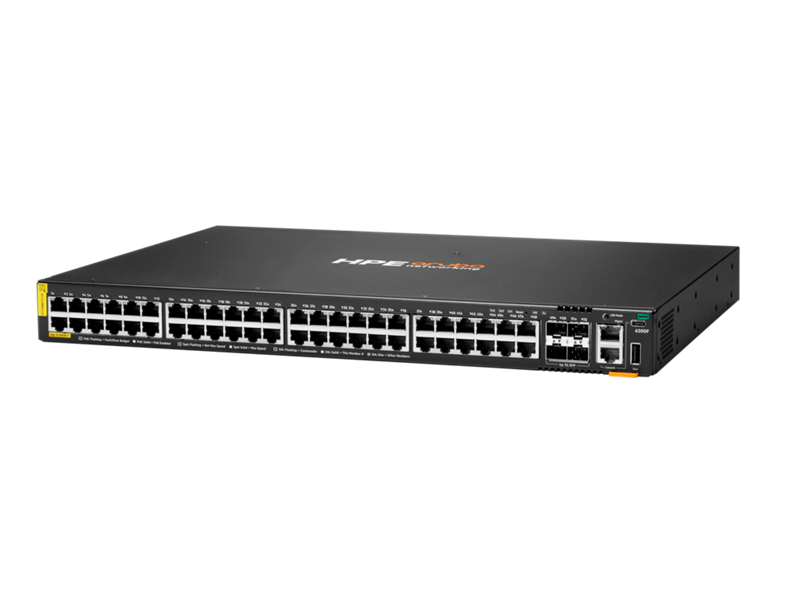

Aruba CX6200F-48P 48-Port PoE+ 4SFP (S0M85A) - 740W PoE Budget Layer 3 Switch

Aruba CX 6200F - 48P 48-Port PoE+ 4SFP Switch (S0M85A) is a high-performance Layer 3 managed switch designed for enterprise edge, campus, and branch networks that require high-density connectivity with robust PoE+ support. It features 48 Gigabit Ethernet PoE+ ports with a total power budget of 740W, delivering reliable power and network connectivity for IP phones, wireless access points, security cameras, and IoT devices. The switch also includes 4 × 1/10GbE SFP+ uplinks, providing high-speed connectivity to aggregation or core layers, supporting bandwidth-intensive applications, and future-proofing network infrastructure for growth.

Powered by Aruba AOS-CX software, the CX 6200F-48P-4SFP offers advanced Layer 3 routing, security, QoS, and telemetry features, enabling IT teams to efficiently manage, monitor, and optimize network traffic. Its 1U rack-mountable form factor, hot-swappable fans, and optional redundant power supply support ensure resiliency, reliability, and energy-efficient operation for mission-critical deployments. With cloud-ready management, automation, and programmable interfaces, this switch simplifies network operations, enhances visibility, and delivers a secure, scalable, and future-ready enterprise networking solution.

KEY FEATURES:

• Access Ports: 48 × 1GbE RJ45 with PoE+ support (740W total PoE budget, up to 30W per port)
• Uplink Ports: 4 × 1/10GbE SFP+
• CPU: ARM Cortex-A72 Quad-Core 1.8 GHz
• System Memory: 8 GB
• Flash Storage: 16 GB
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.9 Mpps
• Packet Buffer: 8 MB shared
• MAC Address Table: 32,768 entries
• VLAN Support: Up to 4,094 VLANs
• Jumbo Frames: Up to 9,220 bytes
• Latency: ~1.8–1.9 µs (1G/10G)
• Resiliency & High Availability: optional redundant power supply, VSF
• Stacking / Virtual Chassis: Virtual Switching Framework (VSF) support, up to 8 switches per stack
• Management: Aruba AOS-CX with Web GUI, CLI, NetEdit, REST APIs
• Monitoring & Telemetry: sFlow, RMON, Syslog, detailed network analytics
• Layer 3 Features: Static routing, RIP, OSPF, VRRP, IPv4/IPv6 support
• Security Features: 802.1X authentication, MACsec encryption, IP Source Guard, BPDU Guard, Loop Protection, DoS Protection
• Automation & Cloud Integration: Zero-Touch Provisioning (ZTP), Aruba Central/cloud-ready management, programmable automation via Python, REST API, and NetEdit
• Energy Efficiency: Energy Efficient Ethernet (EEE), Adaptive Power Consumption

TECHNICAL SPECIFICATIONS:

HARDWARE:

PERFORMANCE:

PoE & HIGH AVAILABILITY:

SECURITY:

MANAGEMENT & TELEMETRY:

QoS & TRAFFIC MANAGEMENT:

PHYSICAL & ENVIRONMENTAL:

ADVANCED FEATURES

Scalable EVPN-VXLAN Overlays:

The Aruba CX 6200F-48P-4SFP supports EVPN-VXLAN technology, enabling scalable and flexible Layer 2 and Layer 3 overlays across campuses, branch offices, and multi-tenant environments. This allows workload mobility, consistent policy enforcement, and simplified segmentation without the need for physical network changes. Enterprises can easily deploy multi-tenant networks, hybrid cloud extensions, and secure virtual overlays, supporting modern distributed applications while maintaining optimal network performance and resiliency.

Virtual Switching Framework (VSF):

With Virtual Switching Framework, up to 8 switches can operate as a single logical unit, simplifying network management, configuration, and monitoring. VSF provides sub-second failover, high availability, and seamless redundancy, reducing operational complexity for large-scale deployments. This capability ensures that mission-critical applications remain available, even in the event of link or device failures, making it ideal for enterprise campuses and distributed branch networks.

High-Density PoE+ Management:

The CX 6200F-48P-4SFP delivers 48 PoE+ ports with a total budget of 740W, providing power to devices such as wireless access points, IP phones, security cameras, and IoT endpoints directly over the network cable. Intelligent PoE allocation, prioritization, and scheduling allow for efficient power utilization, reducing operational costs while supporting high-density deployments. Administrators can dynamically adjust PoE allocation per port, ensuring critical devices receive uninterrupted power while optimizing energy usage.

Advanced Security and Threat Protection:

Security is deeply integrated into the CX 6200F, with features such as MACsec encryption, 802.1X authentication, ACLs, DHCP Snooping, Dynamic ARP Inspection (DAI), IP Source Guard, BPDU Guard, Loop Protection, and DoS attack mitigation. These mechanisms safeguard both data-plane and management-plane traffic, ensuring compliance, regulatory adherence, and protection against malicious or misconfigured devices. Enterprises can deploy sensitive applications and IoT devices with confidence, knowing the network is secure end-to-end.

Quality of Service (QoS) and Traffic Optimization:

The switch offers advanced QoS features to prioritise critical and latency-sensitive traffic such as voice, video conferencing, and enterprise applications. It supports multiple queues per port, traffic shaping, congestion control, and priority scheduling, ensuring reliable performance even under heavy network load. These QoS capabilities help enterprises deliver predictable, low-latency connectivity across mission-critical applications.

Automation, Telemetry, and Analytics:

CX 6200F-48P-4SFP is designed for programmable, cloud-ready network operations. It supports Aruba Central integration, Zero-Touch Provisioning (ZTP), and automation through Python scripting, REST APIs, and Aruba NetEdit. Comprehensive telemetry with sFlow, RMON, Syslog, and streaming telemetry allows IT teams to proactively monitor traffic, detect anomalies, optimize performance, and plan capacity. Combined with AI-driven analytics, these features simplify operations, reduce configuration errors, and improve network visibility across distributed environments.

Energy Efficiency and Resiliency

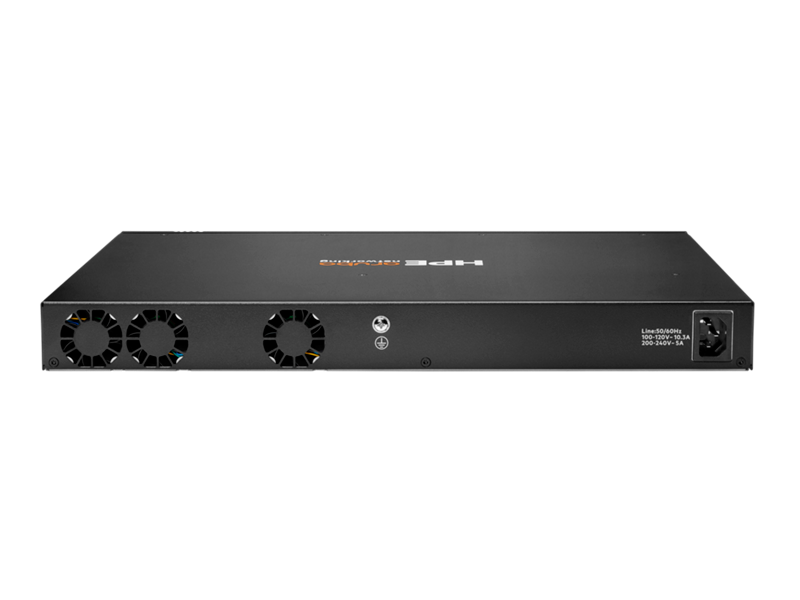

Designed for sustainable operations, the switch supports Energy Efficient Ethernet (EEE), hot-swappable fans, and optional redundant power supplies for continuous uptime. Its 1U rack-mountable form factor provides high-density deployment with minimal footprint. These features, combined with Layer 3 routing, PoE+ flexibility, advanced security, and automation, deliver a resilient, energy-efficient, and future-ready enterprise access solution suitable for modern campuses, branch offices, and high-density PoE environments.

Enterprise-Ready Use Cases

The CX 6200F-48P-4SFP is ideal for high-density enterprise access networks, including campus LANs, branch offices, VoIP deployments, wireless AP backhaul, IP surveillance, and IoT-enabled environments. Its combination of scalability, security, PoE management, automation, telemetry, and resiliency ensures that businesses can deploy, scale, and manage networks efficiently while maintaining optimal performance and uptime for critical applications.

ORDERING INFORMATION:

WARRANTY & SUPPORT:

Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.

All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
