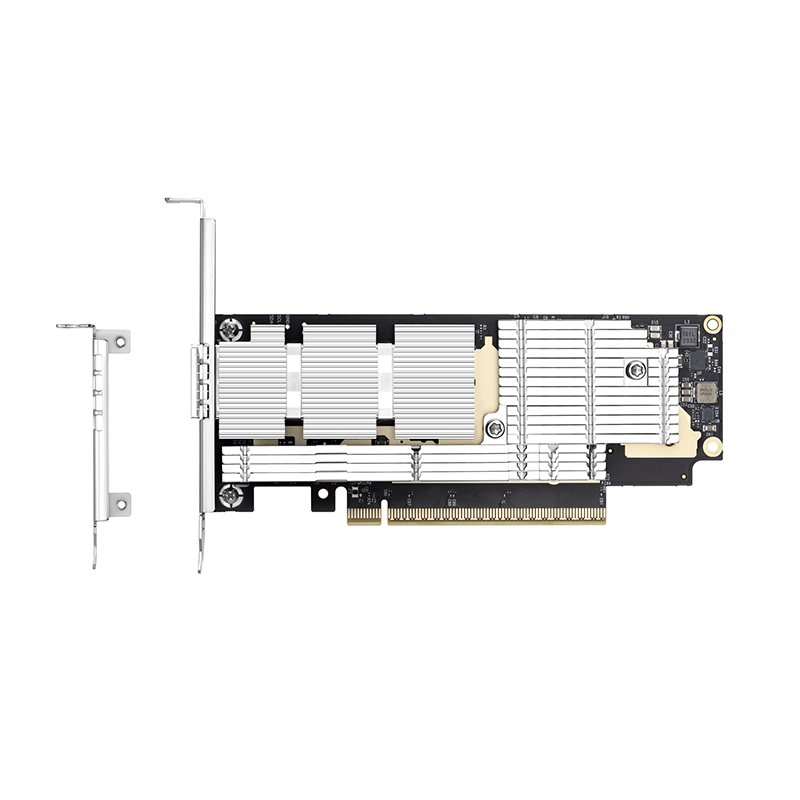

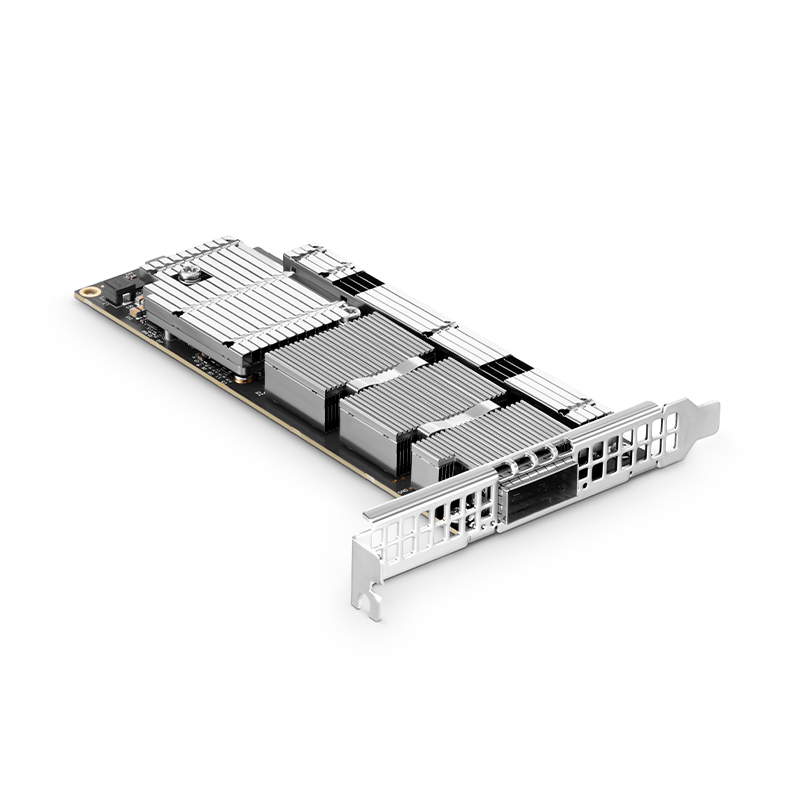

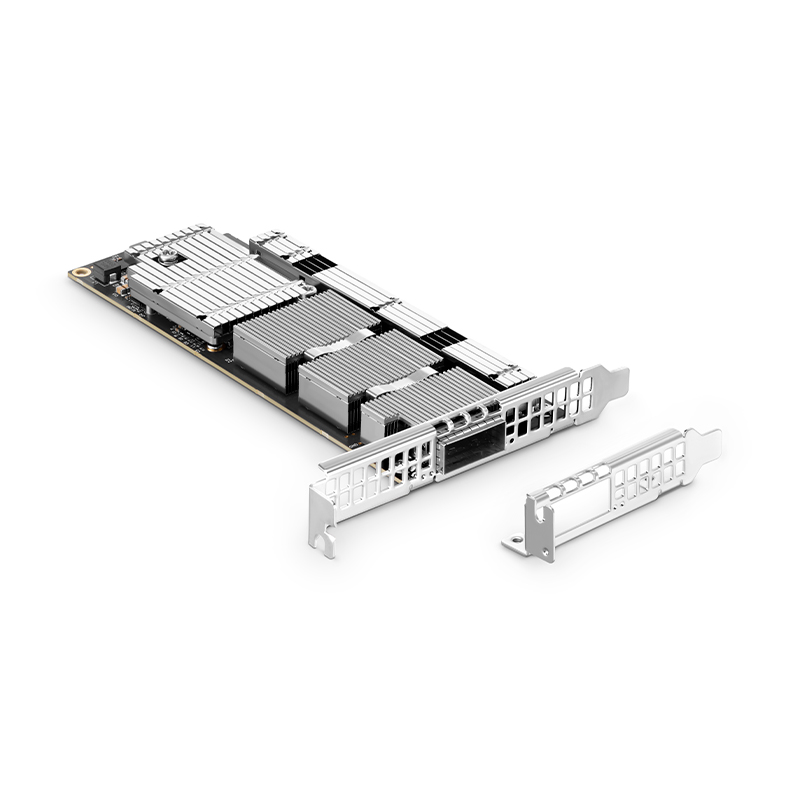

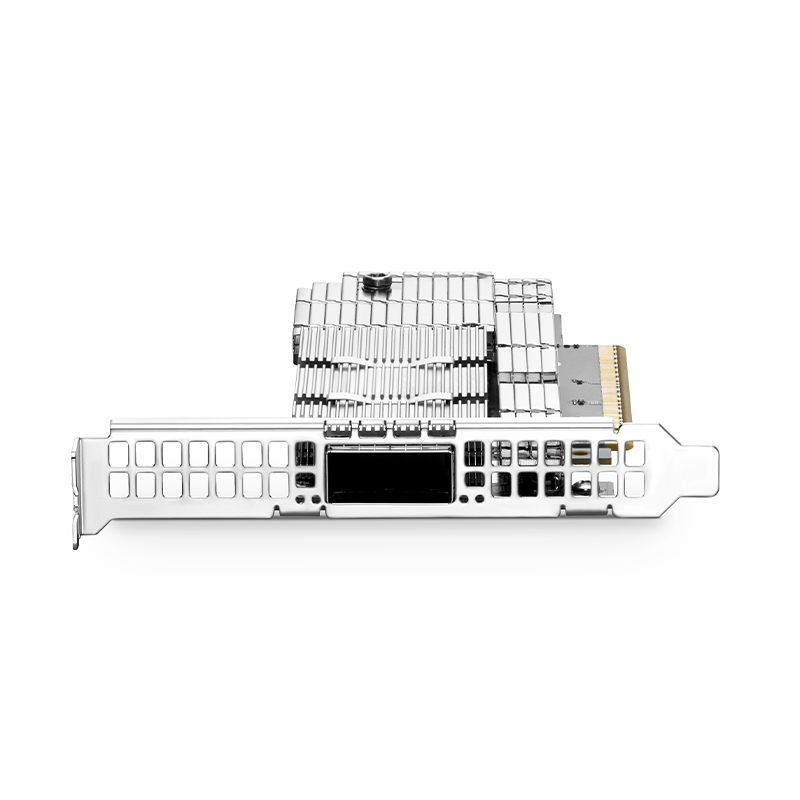

NVIDIA ConnectX-7 InfiniBand/VPI Adapter Card, 400/200/100Gb/s, OSFP, PCIe 5.0, Tall Bracket
ConnectX-7 Virtual Protocol Interconnect (VPI) cards are an industry-leading addition to the ConnectX series of network adapter cards. Network adapters from NVIDIA ConnectX-7 support InfiniBand and Ethernet protocols and can reach speeds of up to 400Gb/s. With its smart, scalable, and feature-rich networking solutions, organizations can address everything from traditional enterprise needs to the most demanding AI, scientific computing, and hyperscale cloud workloads.
KEY POINTS
- ASAP delivers line-rate performance without affecting CPU performance with software-defined networking.
- Security from Edge to Core - Hardware engines in ConnectX-7 offload and accelerate security, encrypting and decrypting TLS, IPsec, and MACsec inline.
- Enhance Storage Performance - With RDMA/RoCE, GPUDirect Storage, and hardware-based NVMe-oF offload engines, ConnectX-7 allows high-performance and efficient data storage
- Ensure precision timing for data-center applications and timing-sensitive infrastructure with ConnectX-7
PRODUCT SPECIFICATION
|
Brand |
Nvidia Mellanox |
|
Type |
400G Adaptors |
|
Model |
Connect X-7 |
|
Network Protocol |
InfiniBand, Ethernet |
|
Infiniband Speed |
EDR 100Gb/s,HDR 200Gb/s,NDR 400Gb/s |
|
RDMA |
330-370 million messages per second |
|
Ethernet Speed |
10GbE, 25GbE, 50GbE, 100GbE, 400GbE, 200GbE, |
|
No.of .ports |
1/2/4 |
|
Interface Host |
PCIe Gen5, up to x32 lanes |
|
Storage Capability |
Offloading of block-level encryption and checksums |
|
Interface Technology |
PAM4 (50G, 100G) NRZ (10G, 25G) |
|
Form factors |
PCIe HHHL, Socket Direct, FHHL, SFF, OCP3.0 TSFF |
|
OS |
|
Network and security acceleration
ConnectX-7 enables organisations to modernise and secure their IT infrastructures through software-defined, hardware-accelerated networking, storage, and security capabilities. In addition, ConnectX-7 enhances network security and reduces total cost of ownership for edge-to-core data centers, clouds, and hybrid environments.
|
Infiniband |
|
|
Ethernet |
|
|
Enhanced Network |
Infiniband
Ethernet
|
|
Cybersecurity |
|
Data-driven scientific computing
It delivers ultra-low latency, extreme throughput, and feature-rich NVIDIA In-Network Computing technology for today's modern scientific computing workloads.
|
Storage Acceleration |
|
|
Sync and timing |
|
|
Control & Management |
|
|
Remote Reboot |
|
|
PCI Compactability |
|
EDC and HPC Powered by RDMA
With RDMA, CPU offloads and kernel bypasses are possible, so RDMA-based applications can increase network speed, lower link latencies, and better utilise network HW resources.
Traffic QoS (Quality of Service)
A high-performance interconnect solution with proven quality-of-service capabilities, InfiniBand delivers unparalleled network efficiency.
|
Model |
Ports |
PCIe Interface |
Crypto |
Secure Boot |
|
MCX753106AAS-NEAT |
1x QSFP112 |
PCIe Gen4/5 ×16 (16/32 GT/s) |
No |
Yes |
|
MCX753106AAC-NEAT |
1x QSFP112 |
PCIe Gen4/5 ×16 (16/32 GT/s) |
Yes |
Yes |
|
MCX753106AAS-HEAT |
1x OSFP |
PCIe Gen4/5 ×16 (16/32 GT/s) |
No |
Yes |
|
MCX755106AS-HEAT |
2x QSFP112 |
PCIe Gen4/5 ×16 (16/32 GT/s) |
No |
Yes |
|
MCX755106AC-HEAT |
2x QSFP112 |
PCIe Gen4/5 ×16 (16/32 GT/s) |
Yes |
Yes |
|
MCX754106AS-HEAT |
4x SFP56 |
PCIe Gen4 ×16 |
No |
Yes |
|
MCX754106AAS-NEAT |
4x SFP56 |
PCIe Gen4 ×16 |
No |
Yes |
ORDER INFORMATION
Manufacturers are responsible for warranties, which are based on purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.
|
Model |
Form Factor |
Data Transmission |
|

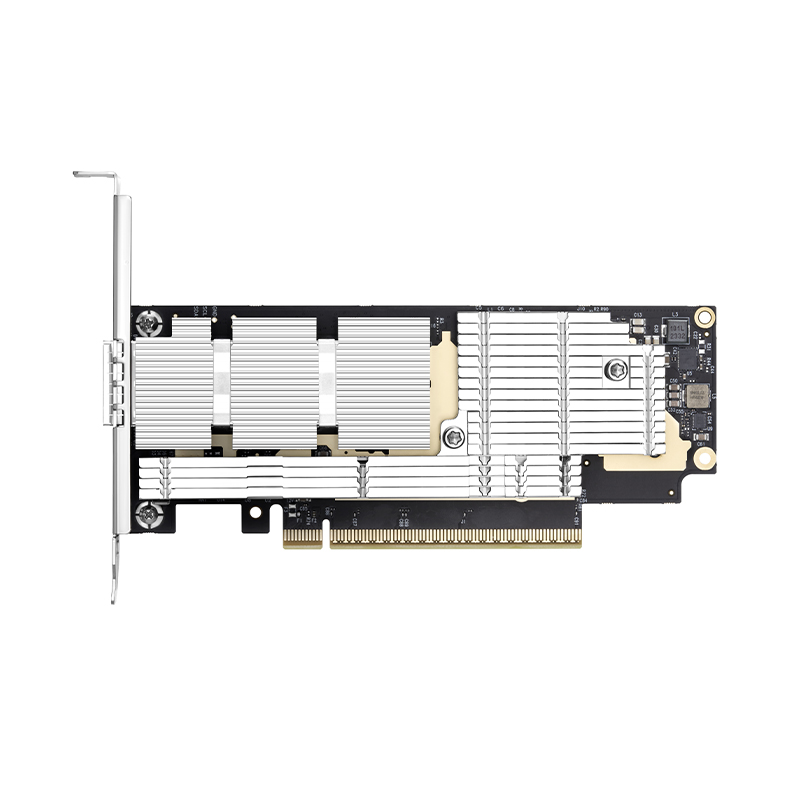

MCX753106AAS-NEAT |
Half-Height Half-Length (2.71” × 6.6”) |
InfiniBand NDR up to 400 Gb/s, Ethernet 10–400 Gb/s |
|

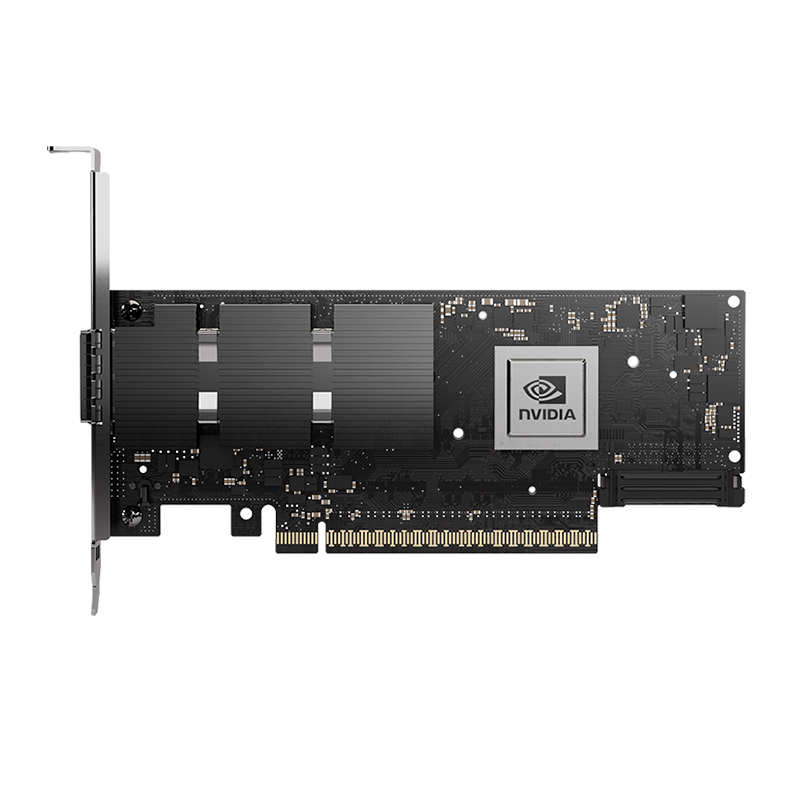

MCX753106AAC-NEAT |
Half-Height Half-Length (2.71” × 6.6”) |
InfiniBand NDR up to 400 Gb/s, Ethernet 10–400 Gb/s |
|
MCX753106AAS-HEAT |
Half-Height Half-Length with passive heatsink |
InfiniBand NDR200 (200 Gb/s), Ethernet 10–200 Gb/s |
|
MCX755106AS-HEAT |
Half-Height Half-Length with tall bracket and passive heatsink |
2× 200 Gb/s ports (total 400 Gb/s), Ethernet & IB supported |
|
MCX755106AC-HEAT |
Half-Height Half-Length with tall bracket and passive heatsink |
2× 200 Gb/s ports (total 400 Gb/s), with crypto acceleration |
|
MCX754106AS-HEAT |
Half-Height Half-Length with full-height bracket and passive heatsink |
4× 25 Gb/s ports (total 100 Gb/s), Ethernet only |
|
MCX754106AAS-NEAT |
Half-Height Half-Length with low-profile bracket |
4× 25 Gb/s ports (total 100 Gb/s), Ethernet only |
WARRANTY & SUPPORT:
Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.
All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
