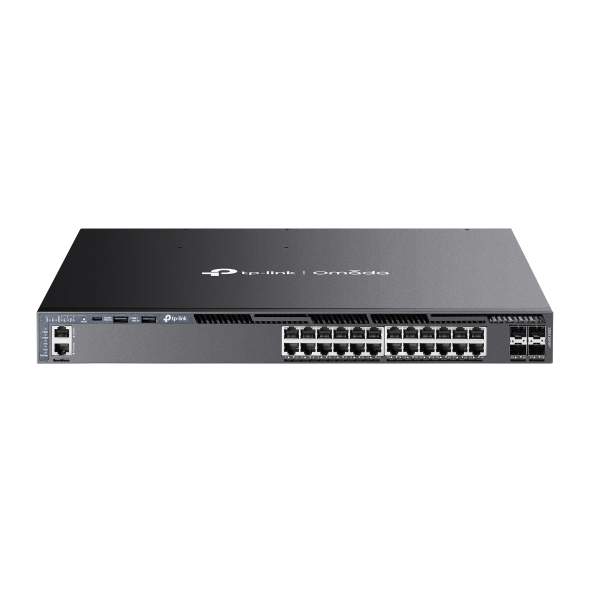

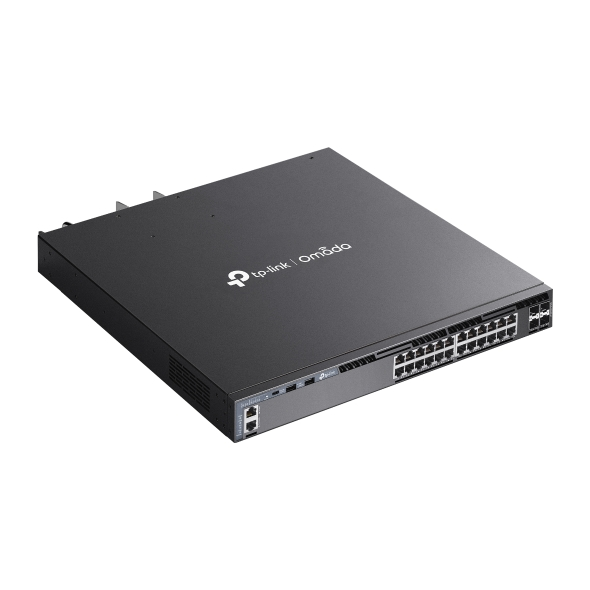

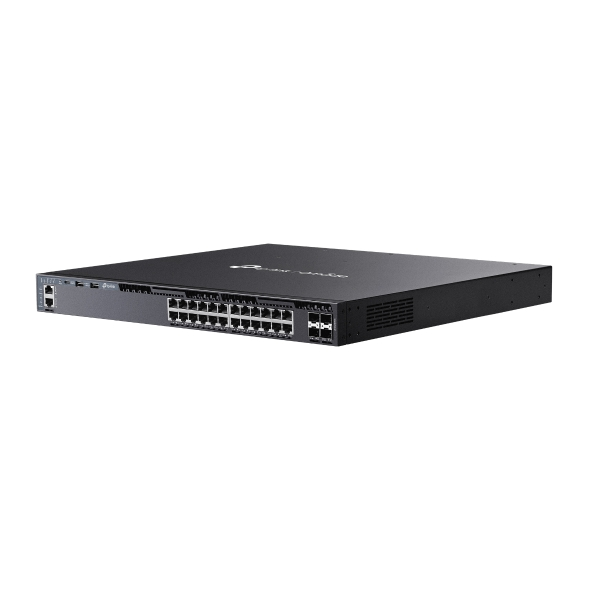

TP-Link TL-SG6428XHP 24-Port Gigabit PoE+ L3 Managed Switch with 4 x 10G SFP+ Uplinks and 720W PoE Budget

TP-Link SG6428XHP is a powerful L3 managed switch designed for campus and enterprise networks that require advanced scalability, high availability, and simplified management. It comes with 24 Gigabit PoE+ RJ45 ports, 4 × 10G SFP+ uplinks, and an impressive 720W PoE budget, allowing you to power a wide range of devices, including IP cameras, access points, and VoIP phones without the need for separate power infrastructure.

With hardware stacking for up to 8 units, robust routing protocols like RIP, OSPF, and VRRP, and support for multicast routing, this switch ensures seamless, large-scale deployments. Integrated with TP-Link Omada SDN, it offers cloud-based management, zero-touch provisioning, and advanced monitoring tools for centralised control. Dual power supply support and intelligent cooling deliver high reliability, making it the ideal choice for mission-critical networks.

KEY FEATURES:

• 24 × 10/100/1000 Mbps PoE+ RJ45 ports (802.3af/at compliant, up to 30W per port)
• 4 × 10G SFP+ uplinks for high-speed backbone connectivity
• 128 Gbps switching capacity and high-performance forwarding
• L3 routing with support for RIP, OSPF, ECMP, DHCP Server/Relay
• Up to 8-unit physical stacking for simplified management and scalability
• Up to 720W PoE budget to power high-density deployments
• Advanced security: 802.1X, ACL, DHCP Snooping, IP-MAC-Port Binding, DoS protection
• Multicast routing support: PIM-DM/SM and IGMP snooping
• Omada SDN integration for cloud-based management and automation
• Intelligent cooling and dual redundant power supply support for high availability

TECHNICAL SPECIFICATION:

HARDWARE:

PERFORMANCE:

SECURITY:

MANAGEMENT:

PHYSICAL AND ENVIRONMENTAL:

ADVANCED FEATURES:

VLAN and QoS

The SG6428XHP supports up to 4,000 VLANs, including port-based, MAC-based, and 802.1Q VLANs for flexible network segmentation. Voice VLAN and Surveillance VLAN simplify the deployment of VoIP and IP cameras by automatically prioritising relevant traffic. Advanced QoS includes 8 hardware queues per port, DSCP and 802.1p priority handling, traffic shaping, and rate limiting for precise control of bandwidth allocation, ensuring seamless operation of critical business applications.

Enterprise-Grade Security

The switch offers multi-layered security with 802.1X authentication (Port/Host-based), DHCP Snooping, IP-MAC-Port Binding, and ARP Inspection to prevent spoofing attacks. It also supports granular IPv4/IPv6/MAC-based ACLs, Storm Control to mitigate broadcast and multicast floods, and DoS protection to safeguard against malicious traffic. Port Security allows limiting MAC addresses per port, further securing sensitive network segments.

High Availability and Resiliency

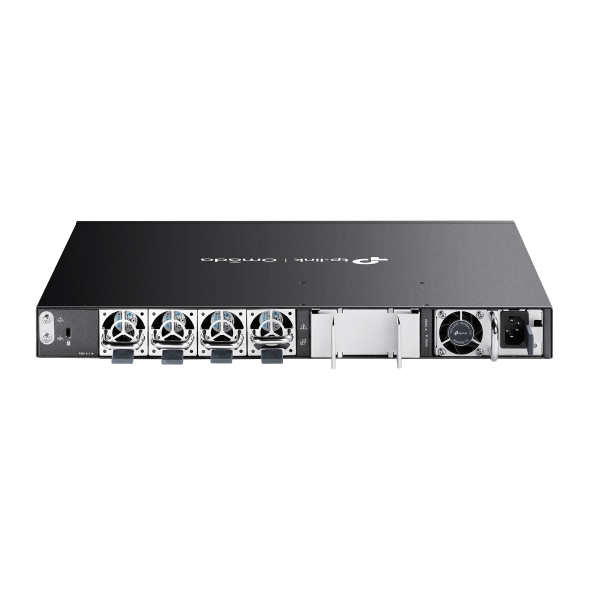

With features such as Ethernet Ring Protection Switching (ERPS), VRRP (Virtual Router Redundancy Protocol), and link aggregation, the SG6428XHP minimises downtime and ensures network stability. Hardware stacking of up to 8 units simplifies management and enhances redundancy, while dual power supply slots support redundant PSU installation for continuous operation in critical environments.

Multicast Optimization

The switch supports IGMP Snooping, MLD Snooping, and PIM-SM/PIM-DM multicast routing, making it ideal for IP surveillance, IPTV, and other multicast-heavy applications by optimising bandwidth usage and reducing unnecessary traffic.

Green Technology

Built with IEEE 802.3az Energy-Efficient Ethernet, the SG6428XHP intelligently adjusts power usage during low-traffic periods, lowering operational costs without compromising performance. Intelligent fan speed control further optimises cooling while reducing power consumption and noise levels.

Stacking and Simplified Management

With physical stacking of up to 8 switches, administrators can manage multiple switches as a single logical device, reducing complexity. Combined with Omada SDN cloud management, this feature enables simplified monitoring, configuration, and automation for large-scale networks.

Robust Management and Troubleshooting

Equipped with RJ45 console and Micro-USB console ports, CLI access, and dual-image firmware, the SG6428XHP ensures flexible management options and smooth firmware updates. Features like LLDP (Link Layer Discovery Protocol), RMON, and port mirroring help in fast troubleshooting and optimising network performance.
