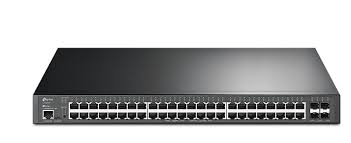

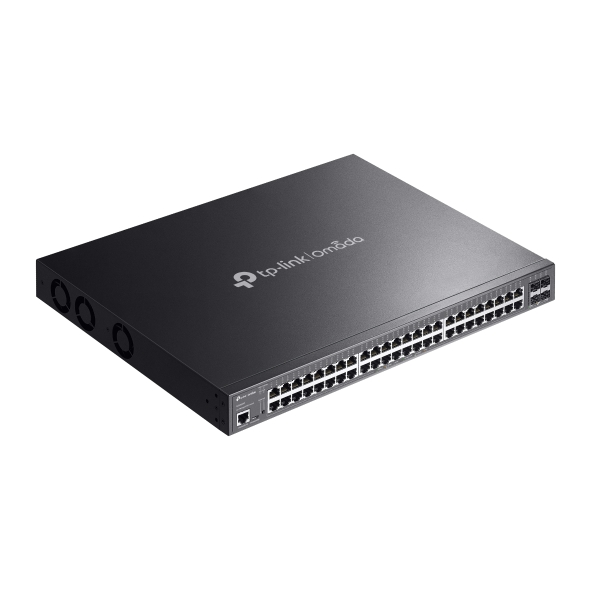

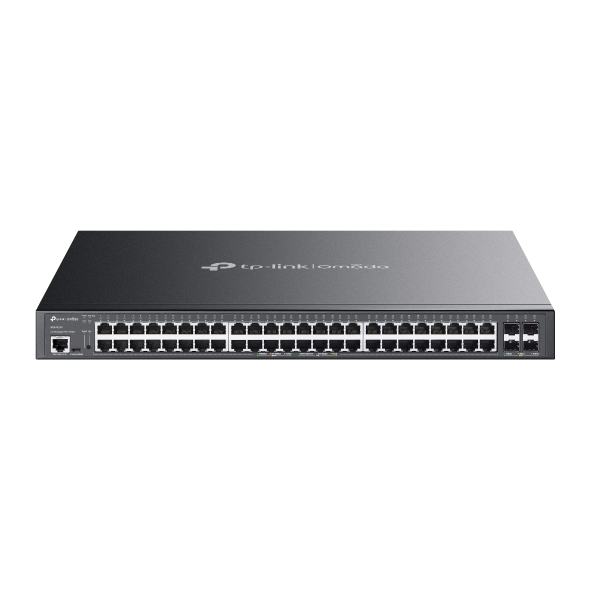

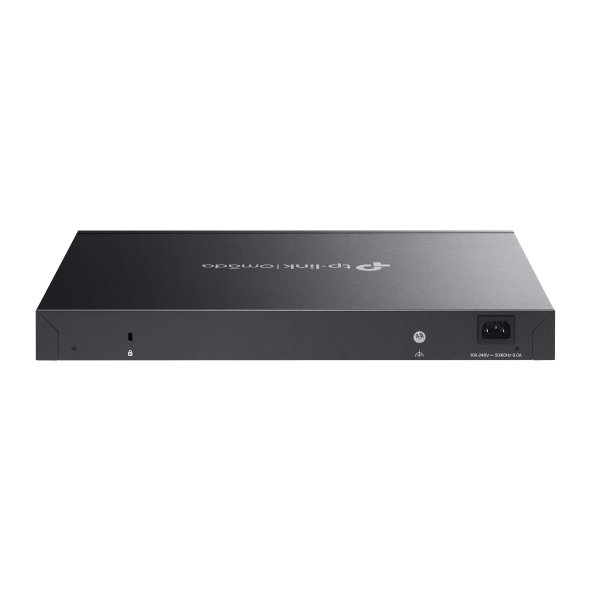

TP-Link TL-SG3452XP 48-Port Gigabit L2+ Managed Switch with 4 x 10G SFP+ Uplink Ports and Static Routing

TP-Link SG3452XP is a high-performance L2+ managed Gigabit PoE+ switch built for SMBs and enterprise networks that require high-density PoE, advanced Layer 3 features, and 10G uplink capabilities. It features 48 × Gigabit PoE+ RJ45 ports, 4 × 10G SFP+ uplinks, and a 500W PoE budget to power demanding devices such as IP cameras, wireless access points, and VoIP phones.

Seamless integration with the TP-Link Omada SDN platform enables centralised cloud management, zero-touch provisioning, and real-time monitoring. With advanced QoS, enterprise-grade security, and robust static Layer 3 routing, the SG3452XP is ideal for scaling modern business networks. Intelligent cooling with 3 internal fans ensures stable performance even under heavy loads, making it a reliable choice for enterprise-grade deployments.

KEY FEATURES:

• 48 × 10/100/1000 Mbps PoE+ RJ45 ports (802.3af/at compliant, up to 30W/port)

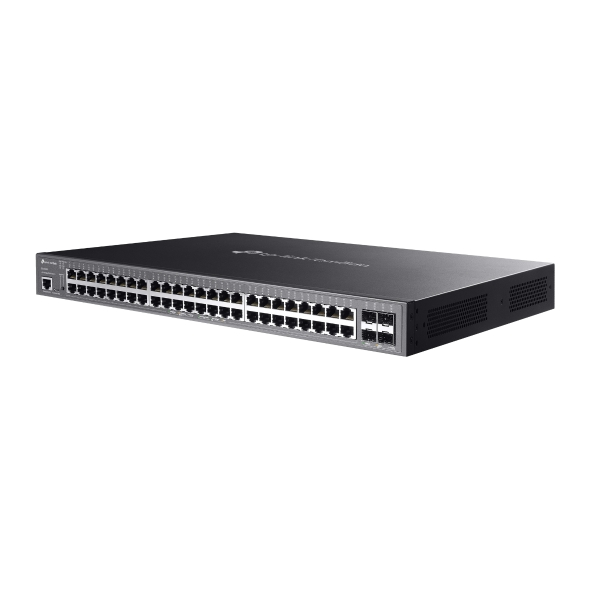

• 4 × 10G SFP+ uplinks for high-speed fibre connectivity
• 500W PoE budget for powering APs, IP cameras, and VoIP phones
• 176 Gbps switching capacity and 130.9 Mpps forwarding rate
• L2+ managed switching with static Layer 3 routing (up to 48 IPv4/IPv6 routes)
• Omada SDN integration for centralised cloud-based management
• Advanced security: 802.1X, ACL, DHCP snooping, IP-MAC-Port Binding, ARP inspection, DoS protection
• VLAN support: Up to 4,000 VLANs with Voice and Surveillance VLAN
• QoS with 8 priority queues for prioritised traffic handling
• Link Aggregation (LACP) with up to 8 groups for redundancy and throughput optimisation
• Intelligent cooling with 3 internal fans for consistent performance
• Console access via RJ45 and Micro-USB ports for flexible management
• Energy-efficient design with IEEE 802.3az compliance



TECHNICAL SPECIFICATIONS:

HARDWARE

PERFORMANCE

SECURITY

MANAGEMENT

PHYSICAL AND ENVIRONMENTAL:

ADVANCED FEATURES:

VLAN and QoS:

The SG3452XP supports up to 4,000 VLANs, including Voice and Surveillance VLANs, simplifying deployment for IP phones and cameras. QoS includes 8 hardware queues per port, DSCP and 802.1p prioritisation, and traffic shaping to ensure smooth delivery of latency-sensitive applications like VoIP and video conferencing.

Security:

Enterprise-grade security features include 802.1X authentication, DHCP snooping, ARP inspection, IP-MAC-Port Binding, ACL filtering, and DoS protection. Storm control and port security protect the network from unauthorised access and broadcast storms.

Management:

With Omada SDN cloud integration, the SG3452XP enables unified management across switches, routers, and access points. It supports CLI, SNMP v1/v2c/v3, RMON, and dual-image firmware for flexible deployment and simplified updates. RJ45 and Micro-USB console ports provide additional control options for IT teams.

Green Technology:

The switch features IEEE 802.3az Energy-Efficient Ethernet to reduce power consumption during periods of low utilisation. Intelligent cooling with 3 internal fans ensures stable performance while maintaining energy efficiency.

ORDERING INFORMATION:

WARRANTY & SUPPORT:

Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.

All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
