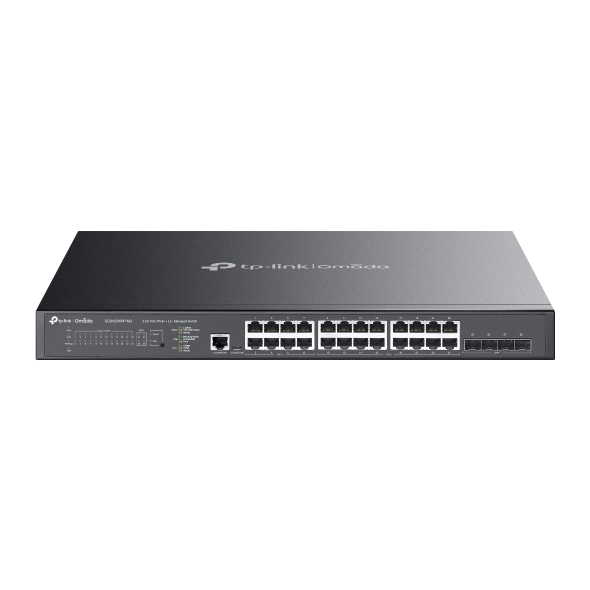

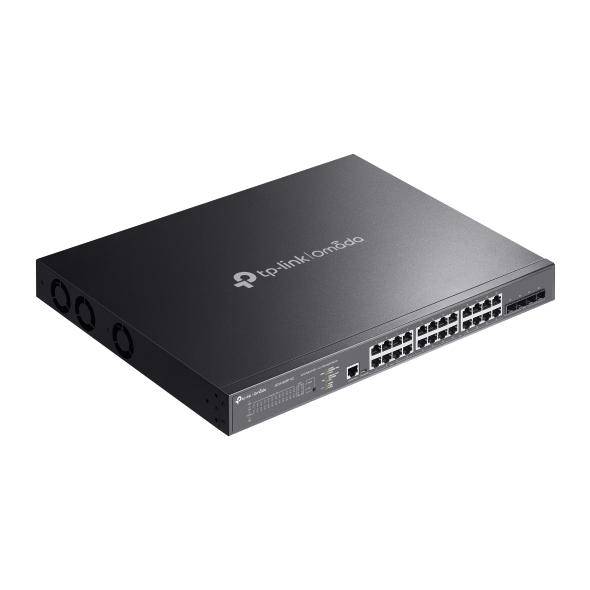

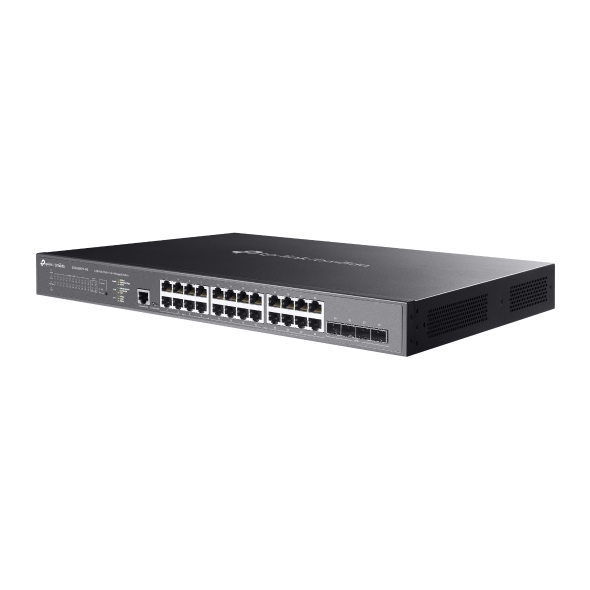

TP-Link TL-SG3428XPP-M2 JetStream 24-Port Multi-Gig PoE++ Managed Switch with 4 x 10G SFP+, VLAN, and Static Routing

TP-Link SG3428XPP-M2 is a high-performance L2+/Static Layer 3 managed switch designed for SMBs and enterprise networks that require multi-gigabit access, advanced PoE++, and high-speed 10G uplinks. Featuring 24 × 2.5G PoE++ ports and 4 × 10G SFP+ uplinks, this switch is built to handle bandwidth-heavy applications such as Wi-Fi 6/6E deployments, IP surveillance, and high-performance enterprise networks. With a 500W PoE budget, it powers a wide range of PoE devices while reducing the need for a separate power infrastructure.

Seamless integration with TP-Link Omada SDN offers centralised cloud-based management, zero-touch provisioning, automated monitoring, and simplified administration. Intelligent cooling, enterprise-grade security, dual firmware images, and extensive VLAN and QoS support make the SG3428XPP-M2 a future-ready switching solution for growing business networks.

KEY FEATURES:

• 24 × 2.5G PoE++ RJ45 ports with auto-negotiation and MDI/MDIX
• 4 × 10G SFP+ uplinks for high-speed fibre connectivity
• Switching capacity: 280 Gbps
• Forwarding rate: 208.33 Mpps
• PoE budget: 500W (PoE++/PoE+ supported)
• L2+ switching with static Layer 3 routing (up to 48 IPv4/IPv6 routes)
• Omada SDN integration for cloud-based centralised management
• Advanced security: 802.1X, ACL, DHCP snooping, IP-MAC-Port Binding, DoS protection
• VLAN support: Up to 4,000 VLANs, including Voice VLAN and Surveillance VLAN
• QoS with 8 priority queues for smooth traffic prioritisation
• Energy-efficient design: IEEE 802.3az compliance
• Intelligent cooling with 3 internal fans for stable and quiet operation
• Dual image support for simplified and safe firmware updates



TECHNICAL SPECIFICATIONS:

HARDWARE:

PERFORMANCE:

SECURITY:

MANAGEMENT:

PHYSICAL AND ENVIRONMENTAL:

ADVANCED FEATURES:

VLAN and QoS:

Supports 4,000 VLANs with 802.1Q tagging, port-based, and MAC-based VLANs. QoS includes 8 hardware queues per port with DSCP and 802.1p priority, ensuring smooth traffic delivery for VoIP, video, and other time-sensitive data. Voice VLAN and Surveillance VLAN simplify the deployment of IP phones and security cameras.

Security:

Enterprise-grade security features include 802.1X authentication, DHCP snooping, ARP inspection, IP-MAC-Port Binding, ACLs, DoS prevention, and storm control to prevent unauthorised access and protect network integrity.

Management:

Seamlessly integrates with Omada SDN for centralised cloud management, real-time monitoring, and zero-touch provisioning. Additional options include CLI, SNMP v1/v2c/v3, RMON, and dual-image management. Automated provisioning and role-based administration improve IT efficiency.

Green Technology:

IEEE 802.3az Energy-Efficient Ethernet minimises power usage during low traffic. Intelligent fan control ensures optimal cooling and quieter operation while extending hardware lifespan.

High-Speed Uplink Performance:

With 4 × 10G SFP+ uplinks, this switch ensures lightning-fast data transfers between aggregation and core layers, eliminating bottlenecks in high-traffic networks. Perfect for virtualisation, large file transfers, and high-resolution surveillance.

Intelligent PoE++ Power Management:

With a 500W PoE budget, the SG3428XPP-M2 supports 8 PoE++ (up to 60W) and 16 PoE+ ports, ideal for high-demand devices like PTZ cameras and Wi-Fi 6/6E access points. Features include PoE scheduling and power prioritisation for optimised energy distribution.

Reliability and Redundancy:

Dual firmware images ensure uninterrupted updates and minimise downtime. Intelligent cooling with 3 internal fans maintains stable performance even under heavy workloads.

Scalability for Future Growth:

Supports multi-gigabit access ports and high-speed 10G uplinks, making it an ideal solution for smart offices, campuses, and enterprise branches that demand growth-ready infrastructure.

ORDERING INFORMATION:

WARRANTY & SUPPORT:

Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.

All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
