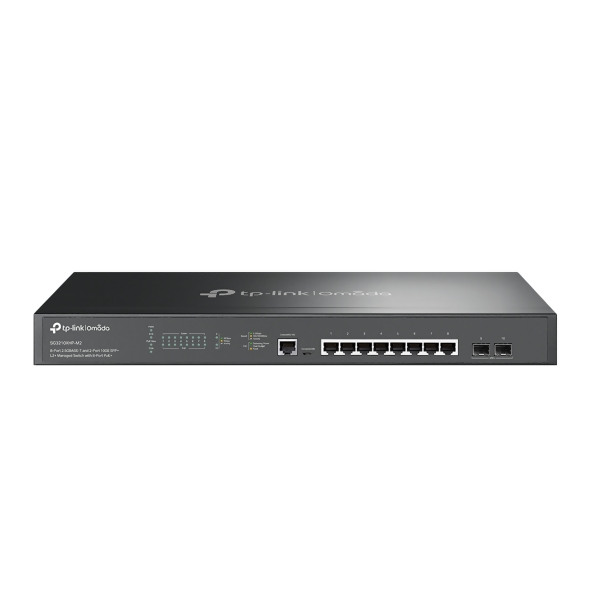

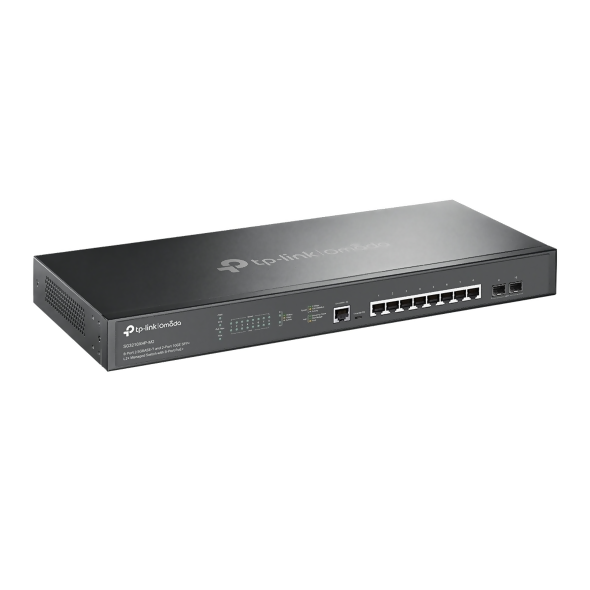

TP-Link TL-SG3210XHP-M2 8-Port 2.5G PoE+ L2+ Managed Switch with 2 x 10G SFP+ Uplinks and 240W PoE Budget

TP-Link SG3210XHP-M2 is a high-performance L2+ managed multi-gigabit PoE+ switch designed for SMBs and enterprise networks that demand superior speed, scalability, and power delivery. Featuring 8 × 2.5G PoE+ ports and 2 × 10G SFP+ uplinks, it offers the perfect combination of wired multi-gigabit connectivity and high-capacity uplinks. With a 240W PoE budget, it can power Wi-Fi 6/6E access points, high-definition IP cameras, and VoIP phones without additional power supplies.

The switch integrates seamlessly with TP-Link Omada SDN, providing centralised cloud-based management, zero-touch provisioning, and real-time monitoring, making it an excellent choice for high-density enterprise networks. With advanced L2+ switching, static Layer 3 routing, enterprise-grade security, multicast optimisation, and intelligent cooling, the SG3210XHP-M2 is built to deliver robust performance and simplified operations.

KEY FEATURES:

• 8 × 2.5G PoE+ RJ45 ports with auto-negotiation and MDI/MDIX support

• 2 × 10G SFP+ uplinks for high-speed fibre connectivity

• L2+ switching with static Layer 3 routing for inter-VLAN communication

• 240W PoE budget for powering enterprise devices like Wi-Fi 6 access points and VoIP phones

• Advanced security: 802.1X, ACL, DHCP Snooping, IP-MAC-Port Binding, ARP inspection, and DoS protection

• Multicast support: IGMP v1/v2/v3 and MLD v1/v2 snooping for optimised streaming and IPTV

• Omada SDN integration for centralised management, monitoring, and automation

• QoS with 8 hardware queues for prioritising voice, video, and mission-critical applications

• Link aggregation (up to 8 groups) for redundancy and bandwidth scaling

• Energy-efficient design with IEEE 802.3az support and intelligent fan cooling



TECHNICAL SPECIFICATIONS:

HARDWARE

PERFORMANCE

SECURITY

MANAGEMENT

PHYSICAL AND ENVIRONMENTAL

ADVANCED FEATURES:

VLAN & QoS:

The SG3210XHP‑M2 supports up to 4,000 VLANs, enabling flexible segmentation of business networks. With port-based, 802.1Q, and MAC-based VLAN mapping, administrators can isolate traffic for improved security and performance. Voice VLAN and Surveillance VLAN simplify the deployment of IP telephony and security devices, ensuring predictable quality for critical services. QoS capabilities include 8 priority queues per port with advanced scheduling algorithms like Strict Priority (SP) and Weighted Round Robin (WRR). With DSCP and 802.1p traffic tagging, latency-sensitive applications such as video conferencing, IP surveillance, and VoIP calls are prioritised to guarantee smooth operation even during peak traffic loads.

Security & Multicast Optimisation:

The switch provides enterprise-grade security with 802.1X authentication (RADIUS/TACACS+), ensuring that only authorised devices can access the network. DHCP Snooping, IP-MAC-Port Binding, and ARP inspection further protect against spoofing and rogue DHCP servers. Advanced Access Control Lists (ACLs) allow fine-grained traffic filtering based on IPv4, IPv6, or MAC addresses. Storm control and DoS attack prevention safeguard against traffic floods, while multicast optimisation through IGMP v1/v2/v3 and MLD snooping ensures efficient video streaming and IPTV delivery without unnecessary bandwidth usage.

Link Aggregation, ERPS & Network Resilience:

To enhance network uptime and scalability, the SG3210XHP‑M2 supports IEEE 802.3ad Link Aggregation (LACP), allowing multiple physical links to be combined into a single logical link for increased throughput and redundancy. Additionally, Ethernet Ring Protection Switching (ERPS) enables rapid failover in ring topologies, minimising downtime. Combined with Operations, Administration, and Maintenance (OAM) features, the switch offers robust resilience, making it ideal for enterprise and campus environments that require non-stop connectivity.

Management, Visibility & Firmware Control:

The switch integrates seamlessly with TP-Link Omada SDN, allowing IT teams to manage, monitor, and configure multiple devices from a centralised dashboard. Zero-touch provisioning ensures quick deployment across multiple sites. For advanced administration, it supports CLI (Command Line Interface), SNMP v1/v2c/v3, and LLDP for automated device discovery. Tools like RMON and port mirroring provide deep network visibility for troubleshooting. With dual firmware image support, administrators can upgrade the switch software without risking downtime, ensuring continuous business operations.

Cooling & Energy Efficiency:

The SG3210XHP‑M2 uses two intelligent internal fans that adjust their speed based on device temperature and PoE load, reducing noise and extending the device’s operational life. Its compliance with IEEE 802.3az Energy-Efficient Ethernet (EEE) reduces power consumption during periods of low data activity, helping businesses lower energy costs while maintaining high performance

ORDERING INFORMATION:

WARRANTY & SUPPORT:

Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.

All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
