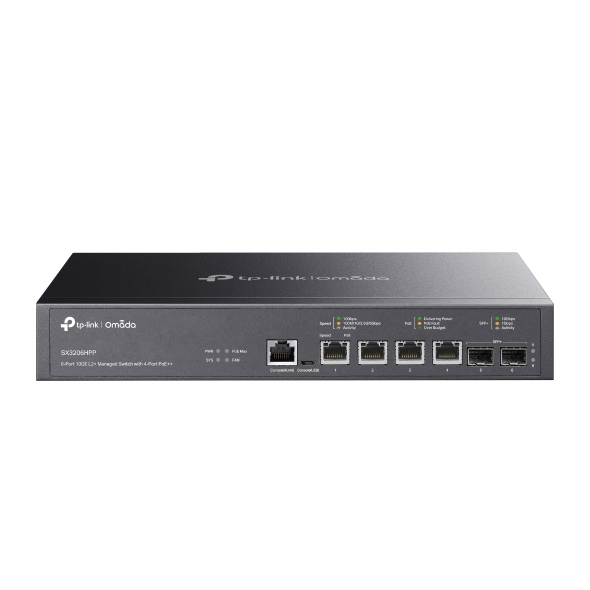

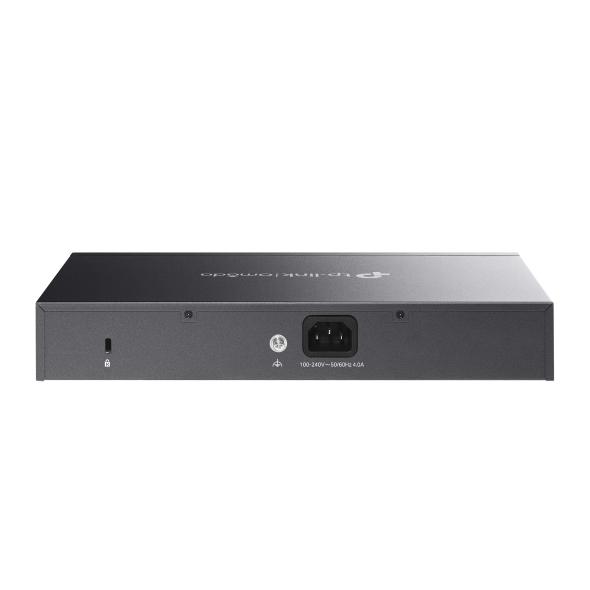

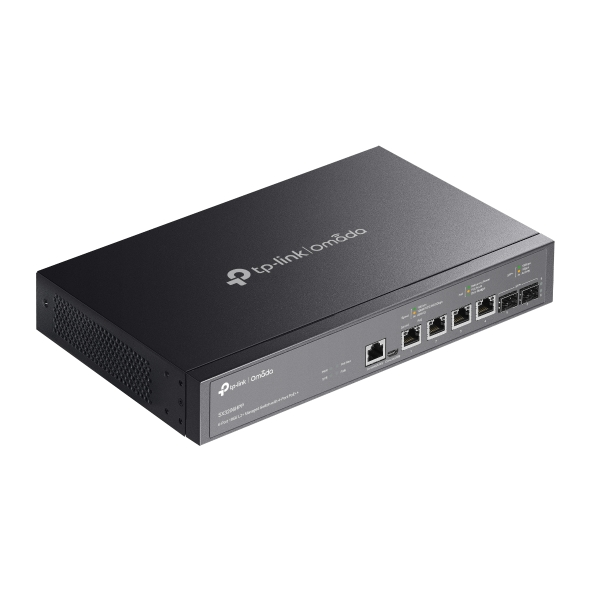

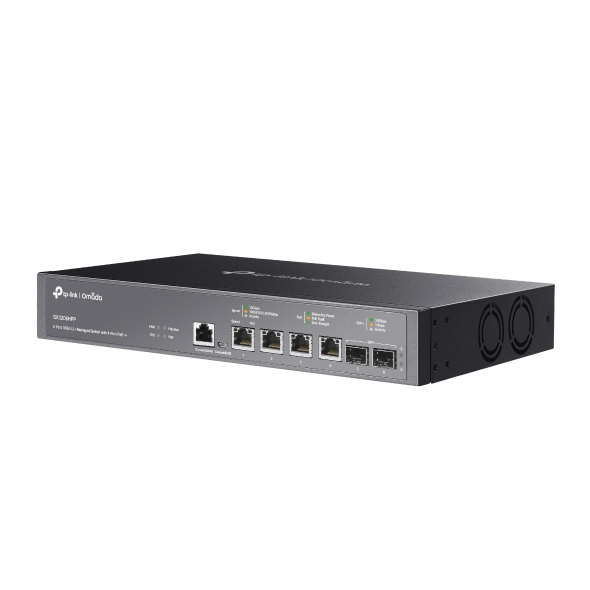

TP-Link SX3206HPP 6-Port 10G PoE++ L2+/L3 Managed Switch with 2 x 10G SFP+ Uplinks

TP-Link SX3206HPP is a high-performance L2+/L3 managed switch designed for advanced business networks, demanding high-speed connectivity and robust PoE++ power delivery. Featuring 4 × 10G RJ45 multi-gig ports (100M/1G/2.5G/5G/10G) with PoE++ support (up to 60W per port) and a total PoE budget of 200W, along with 2 × 10G SFP+ uplinks, it is ideal for powering access points, IP cameras, VoIP phones, and other bandwidth-intensive devices in modern enterprise environments.

Seamless integration with the TP-Link Omada SDN platform offers centralised cloud management, real-time monitoring, zero-touch provisioning, and automated updates. With advanced L2+/L3 features, intelligent cooling with 2 internal fans, enterprise-grade security, and flexible management options, the SX3206HPP is built for growing businesses that demand reliability, scalability, and exceptional performance.

KEY FEATURES:

• 4 × 100M/1G/2.5G/5G/10G RJ45 ports with PoE++ (up to 60W per port)
• 2 × 10G SFP+ uplink ports for high-speed fibre connectivity
• 120 Gbps switching capacity and 89.28 Mpps forwarding rate
• 200W PoE budget, ideal for powering multiple high-powered devices
• L2+/L3 features, including static routing, DHCP server/relay, and advanced multicast management
• Omada SDN integration for centralised cloud management, zero-touch provisioning, and monitoring
• Enterprise-grade security: 802.1X, ACL, DHCP Snooping, IP-MAC-Port Binding, ARP inspection, DoS protection
• VLAN support: Up to 4,000 VLANs, with voice and surveillance VLAN
• QoS with 8 hardware queues for prioritised traffic handling
• Intelligent cooling with 2 internal fans for stable operation
• IEEE 802.3az Energy-Efficient Ethernet for reduced power consumption



TECHNICAL SPECIFICATION:

HARDWARE:

PERFORMANCE:

SECURITY:

MANAGEMENT:

PHYSICAL AND ENVIRONMENTAL:

ADVANCED FEATURES:

VLAN and QoS

The SX3206HPP supports up to 4,000 VLANs, with port-based, 802.1Q, and MAC-based configurations. Advanced QoS features with 8 queues per port ensure smooth traffic prioritisation for critical applications like VoIP, video conferencing, and IP surveillance.

Security

Enterprise-grade security includes 802.1X authentication, DHCP snooping, ARP inspection, IP-MAC-Port Binding, ACLs, and DoS protection. These features ensure only authorised devices access your network while preventing malicious traffic or network disruptions.

Management

The switch integrates seamlessly with the TP-Link Omada SDN platform, providing centralised cloud control, automated provisioning, and real-time monitoring. It also supports CLI, SNMP, and dual-image firmware updates for simplified network administration and redundancy.

Green Technology

Compliant with IEEE 802.3az Energy-Efficient Ethernet, the SX3206HPP optimises power consumption during low-traffic periods. Intelligent cooling with 2 internal fans ensures reliable and quiet operation.

ORDERING INFORMATION:

WARRANTY & SUPPORT:

Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.

All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
