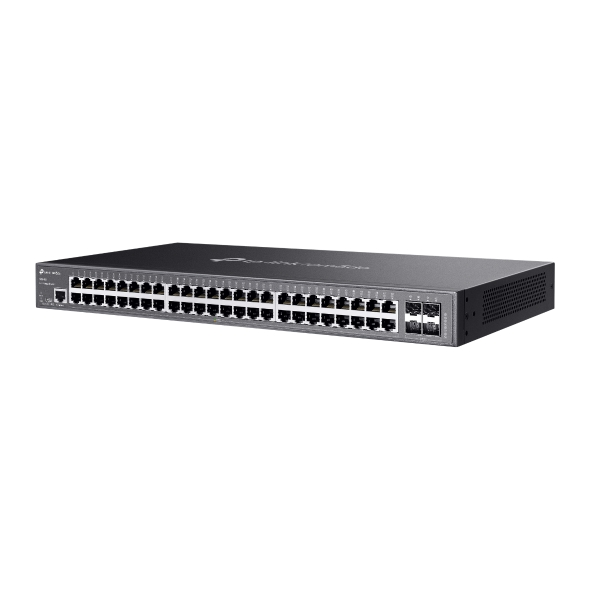

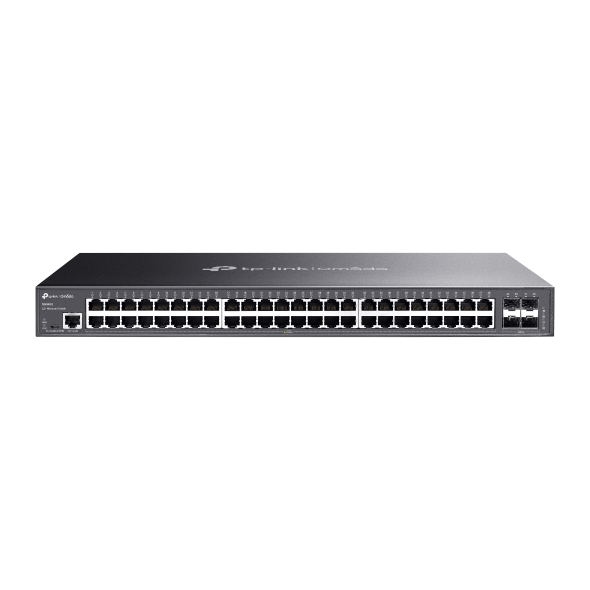

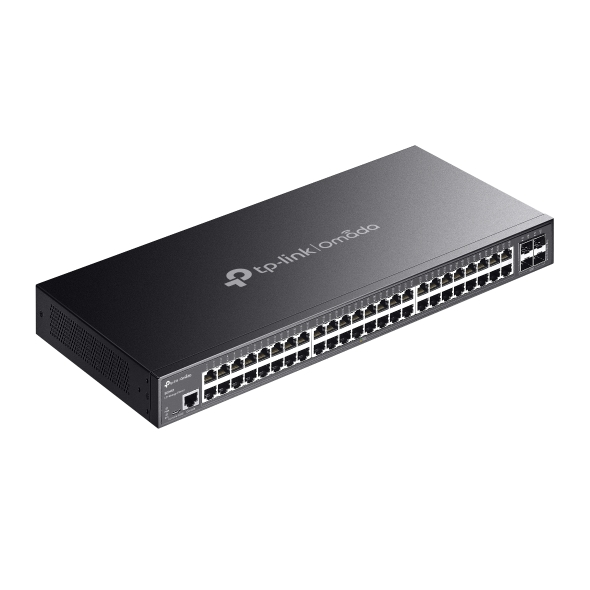

TP-Link SG3452 JetStream 48 x 10/100/1000 Mbps L2+ Managed Switch with 4 x 1G SFP Uplink Ports, VLAN Support, and Static Routing

TP-Link SG3452 is a high-performance L2+ managed Gigabit switch designed for SMBs and enterprise edge networks. Featuring 48× Gigabit RJ45 ports and 4× 1G SFP uplinks, it delivers a powerful switching capacity of 104 Gbps, making it ideal for large-scale deployments. With Omada SDN integration, this switch simplifies network management, offers robust security tools, and supports advanced features like VLANs, QoS, and static Layer 3 routing for inter-VLAN communication.

Equipped with a fanless design for silent operation, IEEE 802.3az energy efficiency, and enterprise-grade reliability, the SG3452 is an excellent choice for cost-effective and scalable business networking.

KEY FEATURES:

• 48 × 10/100/1000 Mbps RJ45 ports with auto-negotiation and MDI/MDIX
• 4 × 1G SFP uplinks for fibre connectivity
• Switching capacity: 104 Gbps with 77.38 Mpps forwarding rate
• L2+ managed switching with static Layer 3 routing (up to 48 IPv4/IPv6 routes)
• Advanced security: 802.1X, ACL, DHCP Snooping, IP-MAC-Port Binding, DoS protection
• VLAN support: up to 4,000 VLANs, including voice and surveillance VLANs
• Omada SDN integration for cloud-based management and monitoring
• Fanless design for silent, energy-efficient operation
• IEEE 802.3az Energy-Efficient Ethernet compliance



TECHNICAL SPECIFICATIONS:

PERFORMANCE:

SECURITY:

MANAGEMENT:

PHYSICAL AND ENVIRONMENTAL:

ADVANCED FEATURES:

L2 Features

The SG3452 supports 16K MAC address table, IGMP Snooping v1/v2/v3, up to 256 IGMP groups, and 64 static multicast addresses. It offers 802.3ad LACP (8 groups), Loopback Detection, Port Mirroring, LLDP, and ERPS (Ethernet Ring Protection Switching) for improved resiliency and simplified troubleshooting.

VLAN Support

Full 802.1Q VLAN tagging with support for 4,000 VLAN IDs. Includes Voice VLAN for VoIP optimisation and Surveillance VLAN for prioritising video traffic.

Quality of Service (QoS)

Provides 8 priority queues with WRR and Strict Priority scheduling. Supports 802.1p CoS and DSCP for prioritised network traffic.

L3 Functions

Static IPv4/IPv6 routing with up to 48 routes, enabling direct inter-VLAN communication without additional routers.

Security

Features 802.1X authentication, RADIUS/TACACS+, DHCP Snooping, IP-MAC-Port Binding, ARP Inspection, DoS prevention, and MAC-based port security to safeguard your network.

Management

Includes Omada SDN integration, Web UI, CLI, SNMP v1/v2c/v3, RMON, cable diagnostics, dual image, and zero-touch provisioning for simplified administration.

Green Technology

Energy-efficient design with IEEE 802.3az, automatic port shutoff, and cable length detection to reduce operational costs.

Additional Advanced Features

• Jumbo Frame: 9 KB for efficient large-packet transfers

• Time-Based Port Control for Optimised Power Management

• Storm Control for broadcast, multicast, and unicast

• Dual Image support for seamless firmware upgrades

• Comprehensive monitoring with LLDP and RMON



ORDERING INFORMATION:

WARRANTY & SUPPORT:

Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.

All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
