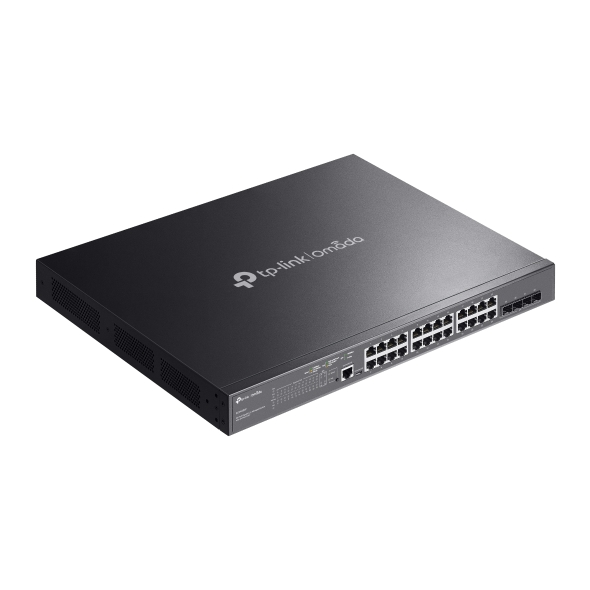

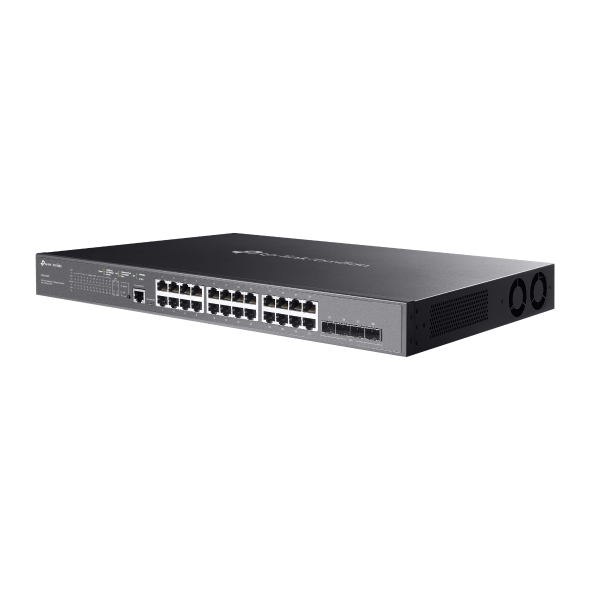

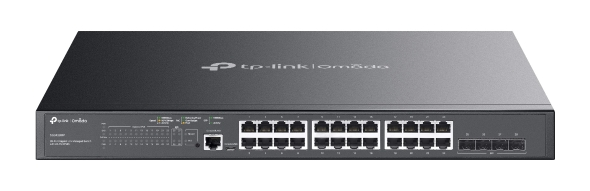

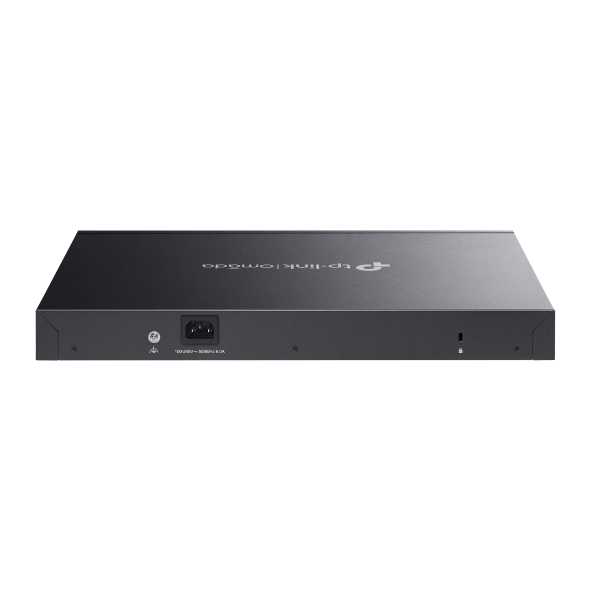

TP-Link SG3428MP 24G PoE+ Managed Switch + 4 SFP Uplinks L2+ Features 384W PoE Budget and QoS

TP-Link SG3428MP is a professional L2+ managed Gigabit PoE+ switch built for SMBs and enterprise edge networks. It delivers 24× Gigabit PoE+ RJ45 ports, 4× Gigabit SFP uplinks, and an impressive 384W PoE budget to power IP cameras, access points, and VoIP phones. Integrated with the TP-Link Omada SDN platform, it supports advanced features like VLAN segmentation, ACLs, static Layer 3 routing, QoS, and centralised cloud management.

With its active cooling design (2 internal fans), energy-efficient architecture, and robust security tools, the SG3428MP is a cost-effective solution for businesses seeking to simplify network deployment while ensuring reliable power delivery to connected devices.

KEY FEATURES:

• 24×10/100/1000 Mbps PoE+ RJ45 ports with auto-negotiation and MDI/MDIX
• 4×1G SFP uplinks for fibre connectivity
• 56 Gbps switching capacity and 41.66 Mpps forwarding rate
• PoE+ budget: 384W (802.3af/at compliant, up to 30W per port)
• L2+ managed switching with static Layer 3 routing (up to 48 IPv4/IPv6 routes)
• Advanced security: 802.1X, ACL, DHCP Snooping, IP-MAC-Port Binding, DoS protection
• VLAN support (up to 4,000 VLANs) with voice and surveillance VLAN
• Omada SDN integration for unified cloud-based management and monitoring
• 2 intelligent cooling fans for stable thermal performance under heavy PoE load

• Energy-efficient with IEEE 802.3az support



TECHNICAL SPECIFICATIONS:

HERDWARE

PERFORMANCE

SECURITY

MANAGEMENT

PHYSICAL AND ENVIRONMENTAL

ADVANCED FEATURES:

PoE Power:
Delivers 384W PoE+ budget, supporting up to 30W per port for devices such as IP cameras, wireless APs, and VoIP phones.

VLAN and QoS:
Supports up to 4,000 VLANs, 802.1Q VLAN tagging, and voice/surveillance VLAN. QoS offers 8 queues with DSCP and 802.1p priority handling for prioritised network traffic.

Security:
Provides advanced security measures including DHCP snooping, IP-MAC-Port Binding, ARP inspection, and 802.1X authentication to prevent unauthorised access.

Management:
Omada SDN integration allows for centralised cloud management, automated provisioning, and remote monitoring. Also supports CLI, SNMP, RMON, and port mirroring for enterprise-level control.

Cooling:

Equipped with 2 temperature-controlled fans to ensure proper thermal management during heavy PoE load and continuous operation.

Green Technology:
Complies with IEEE 802.3az, reducing power usage during low activity periods.

ORDERING INFORMATION:

WARRANTY & SUPPORT:

Manufacturers are responsible for warranties, which are based on the purchase date and validity. We make sure the products we sell are delivered on time and in their original condition at Grabnpay. Whether it's physical damage or operational issues, our team will help you find a solution. We help you install, configure, and manage your devices. We'll help you file a warranty claim and guide you every step of the way.

All listed prices reflect standard market rates. Final commercial terms, including volume-based discounts, will be provided based on purchase volume, MOQ, and other applicable criteria. For more information about switches & other accessories, contact our technical support team.
