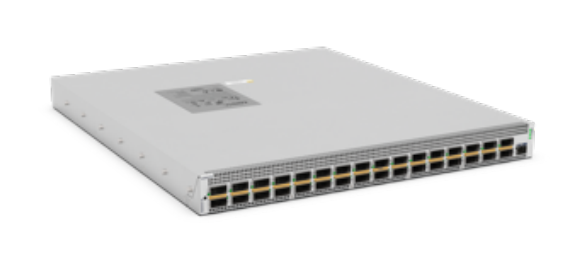

Arista 7060DX5-32 Non-PoE 32-Port 400G Data Center Switch with Advanced Layer 2/3/4 Features

Arista 7060DX5-32 is a high-performance 400G data centre switch with 32 × 400G QSFP-DD ports, delivering 25.6 Tbps switching capacity and sub-microsecond latency. Along with robust Layer 2/3 functions, it supports Layer 4 features for advanced traffic filtering, QoS, and security policies. With integrated VXLAN, EVPN, MLAG, and rich automation tools, the switch is built for scalable cloud, AI/ML, and enterprise networks. Its hot-swappable fans and power supplies ensure reliability, while efficient design keeps operations cost-effective.

KEY FEATURES:

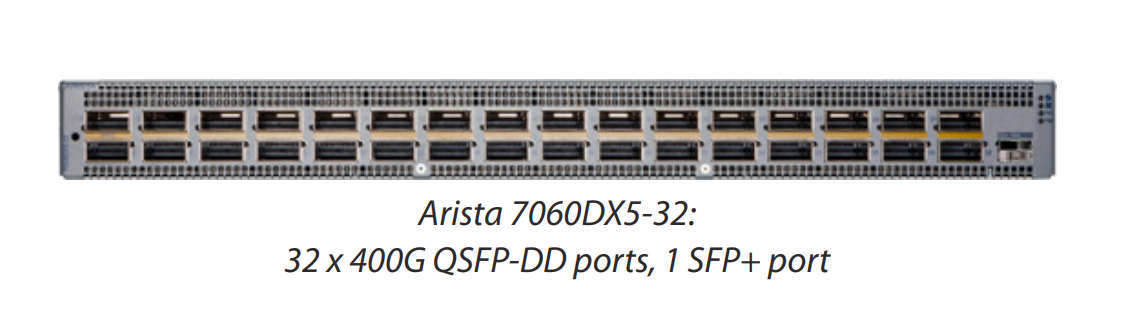

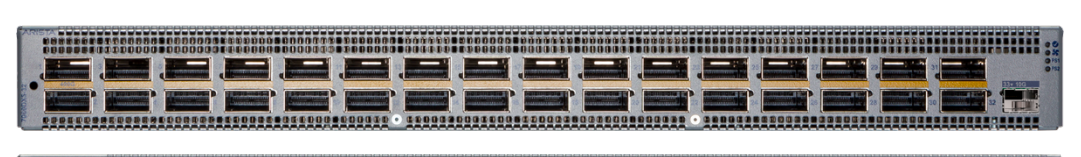

• Total Ports: 32 × 400G QSFP-DD
• Max Interfaces (with breakouts): Up to 128 × 100G or 64 × 200G
• Switching Capacity: 12.8 (25.6) Tbps
• Forwarding Rate: 9.5 Bpps
• Latency: ~825 ns (cut-through mode)
• MACsec Support: 32 ports (hardware-enabled)
• CPU: Quad-Core x86
• System Memory: 16 GB
• Flash Storage: 120 Gigabytes
• Packet Buffer: 57 MB (fully shared)
• Airflow: Reversible (front-to-back / back-to-front)
• Fans: 4 hot-swappable, redundant (N+1)
• Power Supplies: 2 hot-swap (1+1 redundant, AC/DC options)
• Power (Typical/Max): ~289 W / 799 W
• Dimensions (WxHxD): 17.3 × 1.72 × 23.31 in (43.99 × 4.37 × 59.2 cm)
• Rack Units: 1RU
• Weight: ~11.06 kg

TECHNICAL SPECIFICATION:

HARDWARE:

PERFORMANCE:

SECURITY:

MANAGEMENT:

PHYSICAL AND ENVIRONMENTAL:

ADVANCED FEATURES:

Arista 7060DX5-32 is designed for next-generation cloud and data centre environments, combining high-performance switching with deep programmability, robust security, and operational simplicity. Below is a breakdown of its advanced capabilities:

Intelligent Layer 2 / Layer 3 Switching:

The switch supports a full suite of L2 and L3 features, making it highly versatile. With advanced VLAN scaling, Private VLANs (PVLANs), VRFs, and inter-VLAN routing, it is well-suited for both enterprise segmentation and multi-tenant cloud networks.

Layer 4 Traffic Awareness:

Beyond basic switching and routing, the platform delivers Layer 4 ACLs and QoS policies, allowing administrators to control applications at a granular level. Whether it’s prioritising VoIP traffic, filtering DNS requests, or shaping HTTP workloads, the switch ensures consistent and predictable performance.

Virtualisation & Cloud Readiness:

The 7060DX5-32 includes hardware-accelerated VXLAN and EVPN, enabling scalable overlay networks. This allows seamless workload mobility across data centres, efficient tenant segmentation, and smooth integration into modern cloud-native architectures.

High Availability & Resilience:

Arista ensures that the 7060DX5-32 is built for continuous uptime. Key features include:

• MLAG (Multi-Chassis Link Aggregation) for active/active redundancy
• Redundant, hot-swappable power supplies and fans
• In-Service Software Upgrades (ISSU) that allow updates with near-zero downtime
• These capabilities minimise disruption in mission-critical environments.

Advanced QoS & Traffic Engineering:

To deliver predictable application performance, the switch supports eight hardware queues per port with traffic shaping, Weighted Round Robin (WRR), and strict priority scheduling. This ensures that latency-sensitive traffic such as real-time video, HPC workloads, or AI/ML training traffic receives the highest priority.

Real-Time Telemetry & Analytics:

The platform integrates LANZ (Latency Analyser), sFlow, and real-time streaming telemetry. When combined with Arista CloudVision, network administrators gain deep visibility into traffic flows, microburst detection, and congestion hotspots—enabling proactive troubleshooting instead of reactive firefighting.

Automation & Open Programmability:

Designed for large-scale operations, the switch supports open APIs, OpenConfig, Python scripting, and Ansible automation. With Zero Touch Provisioning (ZTP), networks can be deployed rapidly and configured consistently, reducing human error and deployment times.

Enterprise-Grade Security:

The 7060DX5-32 includes multiple layers of protection:

• 802.1X port security for identity-based access control
• ACLs, DHCP snooping, and IP Source Guard to prevent spoofing
• Control Plane Policing (CoPP) to safeguard CPU resources
• MACsec encryption on supported ports for end-to-end traffic confidentiality

Energy Efficiency & Sustainability:

With an optimised low-power design, dynamic fan speed control, and efficient resource allocation, the switch reduces operational costs while contributing to greener, sustainable data centre practices.

Built for Cloud-Scale Networks:

At its core, the 7060DX5-32 is tailored for spine-leaf data centre fabrics, HPC clusters, and AI/ML infrastructures. Its ultra-low latency, non-blocking architecture, and deterministic performance make it ideal for environments where every microsecond counts.
