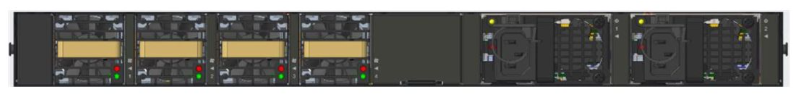

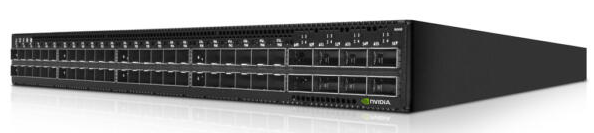

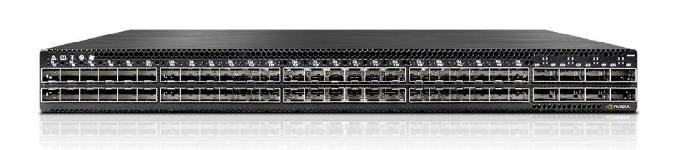

NVIDIA Mellanox SN2201, 48 × 25 GbE SFP28 and 8 × 100 GbE QSFP28 Ports, 1U Open Ethernet Switch (REF)

NVIDIA Mellanox SN2201 (Refurbished) is a high-performance network switch engineered for modern network and switching applications that demand speed, scalability, and reliability. Built on the Mellanox Spectrum architecture, this non-PoE switch delivers up to 448 Gb/s throughput with ultra-low latency, ensuring consistent high-speed data transfer across 48 × 25 GbE SFP28 and 8 × 100 GbE QSFP28 Ethernet ports. It offers outstanding switch connectivity for enterprise, campus, and data-centre environments.

This powered switch supports open networking and can operate with NVIDIA Onyx or Cumulus Linux, giving users flexibility and control in software-defined infrastructures. Designed as a reliable and energy-efficient refurbished power over Ethernet switch alternative, the SN2201 combines enterprise-grade performance with cost-effective scalability ideal for upgrading existing infrastructures or deploying high-capacity aggregation layers.

KEY FEATURES:

• Access Ports: 48 × 25 GbE SFP28 for high-density access or server connectivity.
• Uplink Ports: 8 × 100 GbE QSFP28 for flexible aggregation or spine uplinks.
• Switching Capacity: 448 Gb/s (non-blocking, full duplex).
• Forwarding Rate: 331 Mpps for efficient packet forwarding.
• Latency: As low as 300 ns for ultra-fast packet delivery.
• MAC Address Table: Up to 512K entries supporting large-scale deployments.
• Jumbo Frame Support: Up to 9,216 bytes per frame.
• Packet Buffer: 16 MB dynamic shared buffer for smooth burst handling.
• Power Supply: Dual redundant, hot-swappable AC power supplies.
• Cooling System: N+1 redundant, hot-swappable variable-speed fans.
• Airflow Options: Front-to-Back (P2C) and Back-to-Front (C2P) models available.
• Routing Capabilities: Supports Static, OSPF, BGP, VRF-lite, and ECMP routing.
• VLAN Support: Up to 4,000 VLANs supported.
• MLAG Support: Enables active-active redundancy and link aggregation.
• Quality of Service (QoS): 8 hardware queues per port with strict priority and WRR scheduling.
• Automation & Monitoring: Includes REST APIs, ZTP, SNMP, RMON, and sFlow telemetry.
• Security Features: Supports ACLs, 802.1X authentication, DHCP snooping, and IP Source Guard.
• Open Networking Ready: Compatible with Cumulus Linux, SONiC, and Mellanox Onyx via ONIE.
• Energy Efficiency: IEEE 802.3az compliant for low power consumption.
• Form Factor: Compact 1U rack-mountable chassis.
• Performance Optimisation: Supports both cut-through and store-and-forward switching modes.

HARDWARE:

PERFORMANCE:

MANAGEMENT:

PHYSICAL & ENVIRONMENTAL:

ADVANCED FEATURES:

High-Performance, Low-Latency Switching Fabric:

The SN2201 delivers 448 Gb/s non-blocking switching capacity and 331 Mpps forwarding rate across all 48 × 25 GbE access ports and 8 × 100 GbE uplinks. Ultra-low latency (~300 ns) ensures minimal delay for time-sensitive workloads, making it ideal for network switch, hub switch, and Ethernet switch deployments. Deep dynamic buffers and a large MAC table handle traffic bursts and high-volume transfers without packet loss, supporting AI/ML, HPC, virtualization, and cloud applications. This ensures smooth and predictable performance for real-time analytics, high-performance computing, and storage replication workloads, providing maximum reliability for enterprise-grade networks. It also reduces jitter for latency-sensitive applications such as financial trading platforms, video streaming, and high-speed databases, guaranteeing consistent throughput under heavy load.

Advanced Layer 2 & Layer 3 Routing and Network Segmentation:

Supports static routing, OSPF, BGP, VRF-lite, and ECMP. VLAN support up to 4,000 allows large-scale enterprise, multi-tenant, and cloud environments to operate efficiently. Optimised traffic distribution and predictable latency ensure stable, secure non-PoE switch operations. Advanced multicast and routing features enable seamless integration with complex data centre topologies, allowing administrators to segment traffic for compliance, security, and multi-service deployments without impacting performance. Additionally, the SN2201 provides efficient path selection and route convergence for dynamic workloads, supporting cloud-native applications and multi-site connectivity.

Stacking and Multi-Chassis Link Aggregation (MLAG):

Active-active MLAG enables multiple switches to operate as a single logical unit for redundancy, load balancing, and automatic failover. High-speed interconnects provide scalable bandwidth and seamless traffic forwarding. Ideal for powered switch deployments requiring horizontal expansion without disruption. This feature ensures continuous availability during maintenance or hardware upgrades, while also optimising bandwidth usage for high-demand applications such as virtualization clusters and distributed storage systems. MLAG also simplifies network management, reducing operational complexity and enhancing reliability across large-scale deployments with minimal manual configuration.

Open Networking Flexibility (ONIE-Compatible):

Fully compatible with Mellanox Onyx, Cumulus Linux, and SONiC, the SN2201 allows deployment of open networking and software-defined networks (SDN). Operators can choose their preferred NOS, automate operations, monitor network health, and integrate with orchestration platforms, providing maximum flexibility for Ethernet switch and power over Ethernet switch deployments. Open networking also allows testing new software features and scaling networks without vendor lock-in, helping IT teams innovate and deploy custom network policies safely. It supports rapid adaptation to new protocols and SDN integrations, enabling future-proof deployments and advanced automation across enterprise and cloud networks.

Energy Efficiency & Fresh-Air Compliance:

Incorporates IEEE 802.3az Energy Efficient Ethernet (EEE) technology, reducing idle power usage. Variable-speed, hot-swappable fans adjust based on traffic and temperature for energy-efficient cooling. Fresh-air compliant design enables deployment in office closets, distributed campuses, or standard data centres without specialised HVAC. This energy-conscious design reduces operational costs and supports environmentally friendly practices, while keeping acoustic noise low for quieter network rooms or office racks. It also helps organisations meet sustainability goals and reduces cooling requirements in dense rack installations.

Redundant, Serviceable Hardware:

Dual hot-swappable AC power supplies and N+1 fan redundancy provide continuous operation. Front-to-back and back-to-front airflow options allow flexible deployment in diverse racks. Hot-swappable components simplify maintenance and upgrades, ensuring high reliability for mission-critical environments. This redundancy also enables IT teams to replace or upgrade hardware without service interruption, maintaining uptime for demanding enterprise and HPC workloads. The serviceable design reduces operational costs and allows rapid replacement of faulty components, improving long-term operational efficiency.

Comprehensive Security & Threat Protection:

Includes ACLs, 802.1X authentication, MAC-based access control, DHCP snooping, ARP inspection, and IP Source Guard. Combined with control-plane protection, storm control, DoS mitigation, and audit logging, the SN2201 secures network switch and hub switch environments. These features safeguard sensitive data, prevent unauthorized access, and maintain compliance with enterprise and cloud security policies. Advanced logging and alerting help administrators detect anomalies early, enabling proactive mitigation of threats in multi-tenant and high-density networks.

Advanced QoS & Traffic Management:

Eight hardware queues per port with WRR and strict priority ensure latency-sensitive traffic (voice, video, analytics) is delivered without delay. Rate limiting, traffic shaping, and deep packet inspection provide enterprise-grade QoS in high-density deployments. Administrators can define per-port or per-VLAN policies for mission-critical applications, ensuring predictable performance and smooth operations even during traffic spikes or congestion events. This guarantees uninterrupted delivery of critical services, such as unified communications and virtual desktop infrastructure (VDI), even under peak network load conditions.

Automation, Monitoring & Analytics:

Supports REST APIs, Zero-Touch Provisioning (ZTP), Ansible, sFlow, RMON, and streaming telemetry. Enables automated provisioning, predictive analytics, performance reporting, and integration with cloud orchestration platforms. Real-time telemetry and historical trend analysis help administrators optimise capacity planning, troubleshoot issues faster, and improve overall network efficiency and uptime. Detailed analytics allow network engineers to identify bottlenecks, plan upgrades, and automate recurring operational tasks for large-scale deployments.

Scalability & Future-Proof Architecture:

Supports MLAG, large VLANs, open NOS, and advanced telemetry. Scalable design allows growth without redesign, making it suitable for enterprise, HPC, AI, and cloud workloads. Future-ready architecture ensures seamless adoption of new network standards, advanced routing protocols, and higher-density connections as your infrastructure grows. The switch can handle evolving network demands, enabling long-term deployment for cloud and edge computing environments without costly replacement cycles.

Enhanced Deployment Flexibility:

Compact 1U form factor, dual airflow options, and high-density ports allow flexible deployment in branch offices, dense racks, and distributed campuses. Easy expansion without sacrificing performance ensures smooth upgrades in modern data centre layouts. Flexible design also allows rapid relocation or scaling of network switches, making it ideal for enterprises with evolving infrastructure needs. This versatility supports hybrid IT environments and allows IT teams to quickly reconfigure racks for changing workloads or multi-site deployments.

High Availability & Redundancy Features:

Redundant power, N+1 fan backup, and active-active MLAG ensure continuous uptime. High-speed interconnects and automatic failover maintain uninterrupted traffic forwarding for mission-critical workloads. This high availability ensures critical services remain online during peak loads or hardware failures, reducing downtime and improving operational efficiency. Additional monitoring features provide predictive failure alerts, enabling proactive maintenance and ensuring business continuity.

Optimized for AI, HPC, and Cloud Workloads:

Low-latency, high-throughput design supports GPU clusters, virtualization, distributed storage, and AI/ML workloads. Scalable connectivity and deep buffers ensure consistent performance under peak load for network switch, hub switch, and power over Ethernet switch deployments. Designed for compute-intensive applications, it guarantees reliability for next-generation enterprise, cloud, and HPC environments. It also supports seamless expansion of GPU or storage clusters, ensuring predictable latency for machine learning, big data analytics, and high-performance computing applications.

ORDERING INFORMATION:

SUPPORT:

All refurbished products sold on Grabnpay are tested, verified, and delivered in good working condition. Our team provides assistance with installation, configuration, and troubleshooting to ensure smooth operations. Please note that for refurbished products, no manufacturer warranty, vendor support, or license coverage applies. For any issues, our technical support team will guide you with solutions and recommend suitable replacements or upgrades if required.
