Aruba-WiFi Access Point-AP 504-Indoor-WPA3-MPSK-Enhanced Open-80mhz Bandwidth-WiFi 5 & 6-MU MIMO-OFDMA-VPN Tunnel-Dual band-IOT Capabilities-Bluetooth 5.0-Zigbee

These APs provide high-performance connectivity for any organization struggling with increased IoT, and mobility requirements. HE80/HE20's maximum aggregate data rate is 1.49 Gbps, meeting the needs of schools, midsize offices, and retailers.

KEY POINTS:

• Up to 1.49 Gbps of real-world speed (HE80/HE20)
• Security with WPA3 and Enhanced Open
• Wi-Fi 6 and Wi-Fi 5 sticky client issues are resolved by built-in technology
• Optimized multiuser performance with OFDMA
• Supports Bluetooth 5 and Zigbee for IoT

SPECIFICATION:



PRODUCT FEATURES

INCREDIBLE EFFICIENCY

• Utilizes Wi-Fi efficiently and significantly reduces airtime contention to optimize the user experience.

• There are various features such as OFDMA (Orthogonal frequency-division multiple access) and cellular optimization. HE80 provides 80MHz channel bandwidth for budget-conscious deployments, with up to 2 spatial streams (2SS).

Benefits of OFDMA:- Handle multiple Wi-Fi 6 capable devices simultaneously, regardless of the traffic type. Clients are not competing for airtime and bandwidth with small sub-carriers or resource units.

CONVENIENCE AND SECURITY

To encrypt and inspect all traffic from the mobility controller to the AP, Aruba's policy enforcement firewall (PEF) feature was included.

WPA3: Latest version of WPA provides enhanced encryption and authentication.

Enhanced open: Automatically encrypt to protect guest network user password & data.

MPSK ( WPA 2): Changing password on one device will be reflected on all other devices as well.

VPN Tunnels: Connect securely to a VPN concentrator through a Secure SSL/IPSec VPN tunnel.

Connectivity: These 500 Series can connect up to 256 clients per radio (512 in total). Client density depends on environmental conditions in real-world scenarios.

IOT CAPABILITY:

Includes Bluetooth 5 and 802.15.4 (for Zigbee support) to simplify location services, asset tracking, security solutions, and IoT sensor deployment. As a result, organizations can leverage the 500 Series as an IoT platform, reducing IT resources and overlaying infrastructure costs.

WIFI FEATURES:

• Transmit beamforming                            - Improve signal range and reliability

• Hotspot 2.0 (Passpoint Wi-Fi)                 - Carryover of cellular to WiFi for guests

• Dynamic Frequency Selection                 - Optimize RF spectrum usage

• Maximum Ratio Combining                    - Receiver performance improve

• Cyclic Delay/Shift Diversity (CDD/CSD) - Improve RF performance on the downlink

• Space-Time Block Coding                       - Enhance range and reception

• Low-Density Parity Check (LDPC)          - High-efficiency error correction for increased throughput

OTHER INTERFACES:

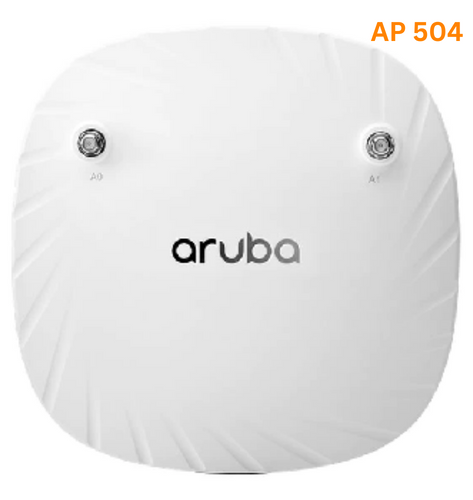

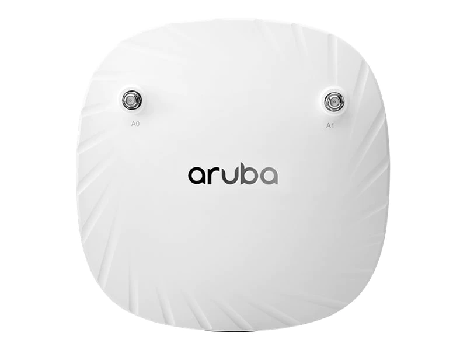

Wifi Antenna: Two (Female) RP-SMA connectors for dual-band antennas (A0 and A1, which correspond to radio chains 0 and 1). Worst-case interface loss (due to duplexing circuitry) of 0.7 dB in 2.4GHz and 1.3 dB in 5GHz.

Ethernet Port E0:

• Automatic detection of link speed (10/100/1000BASE-T) & MDI/MDX
• Power over Ethernet (PD): 48Vdc (nominal), 802.3af/at (class 3 or 4)
• Energy-efficient Ethernet (EEE) based on IEEE 802.3az

USB 2.0 (Type A):  Capable of supplying up to 1A / 5W.

Visual Indicator: Two multi-color LEDs indicates status of system and radio.

Reset button: Reset factory setting, LED mode (normal/off)

Serial console: Physical USB Micro-B jack console

Security slot: Kensington security

IOT POWER :

• BLE (5.0): Transmit power up to 7dBm (class 1) and receive sensitivity up to 93dBm (1Mbps).

• Zigbee (802.15.4): Transmit power up to 6dBm, receive power up to -96dBm

• A vertically polarized omnidirectional antenna with roughly 30 degrees of downtilt and peak gain of 3.3 dB.

DEVICE POWER:

• Supports both DC power and Power over Ethernet
• DC power takes priority over POE in the presence of both DC and POE power sources
• Function without restrictions when powered by DC or 802.3 at (class 4) POE.
• USB port will be disabled when powered by 802.3 at (class 3) POE.
• Same configuration with IPM enabled starts unrestricted, but dynamically applies restrictions according to POE budget. Restrictions and order are programmed.

NOTE: Power sources aren't included

EOL: An operational temperature of +25C yields a MTBF of 1.3M hours (148 years).

DEVICE REQUIREMENT

Operating systems: ArubaOS

Software version: Aruba InstantOS 8.6.0.0

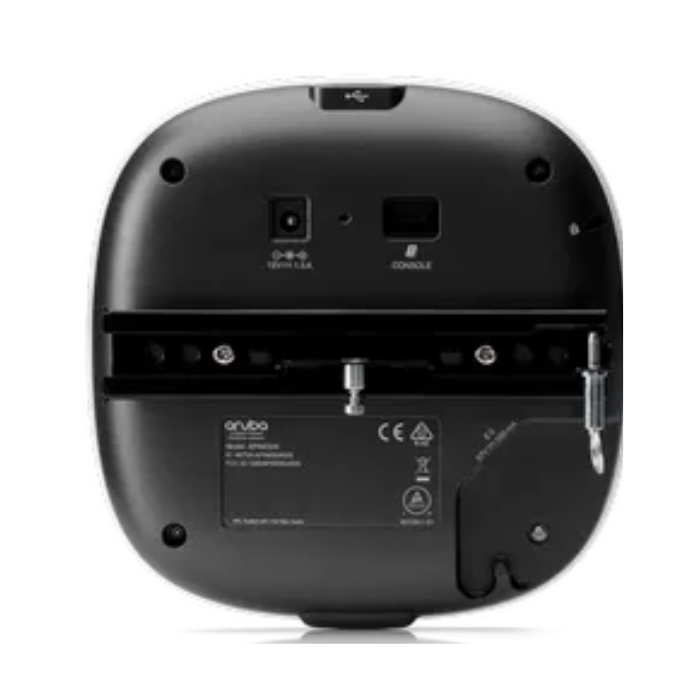

NOTE: Mounting bracket is pre-installed on the back. It secures AP to any mounting kit (sold separately).

MECHANICAL SPECIFICATIONS:-

Without Mount brack:

Dimensions - 160mm (W) x 161mm (D) x 37mm (H)

Weight - 500g

With Mount brack:

Dimensions - 193mm (W) x 183mm (D) x 63mm (H)

Weight - 645g
